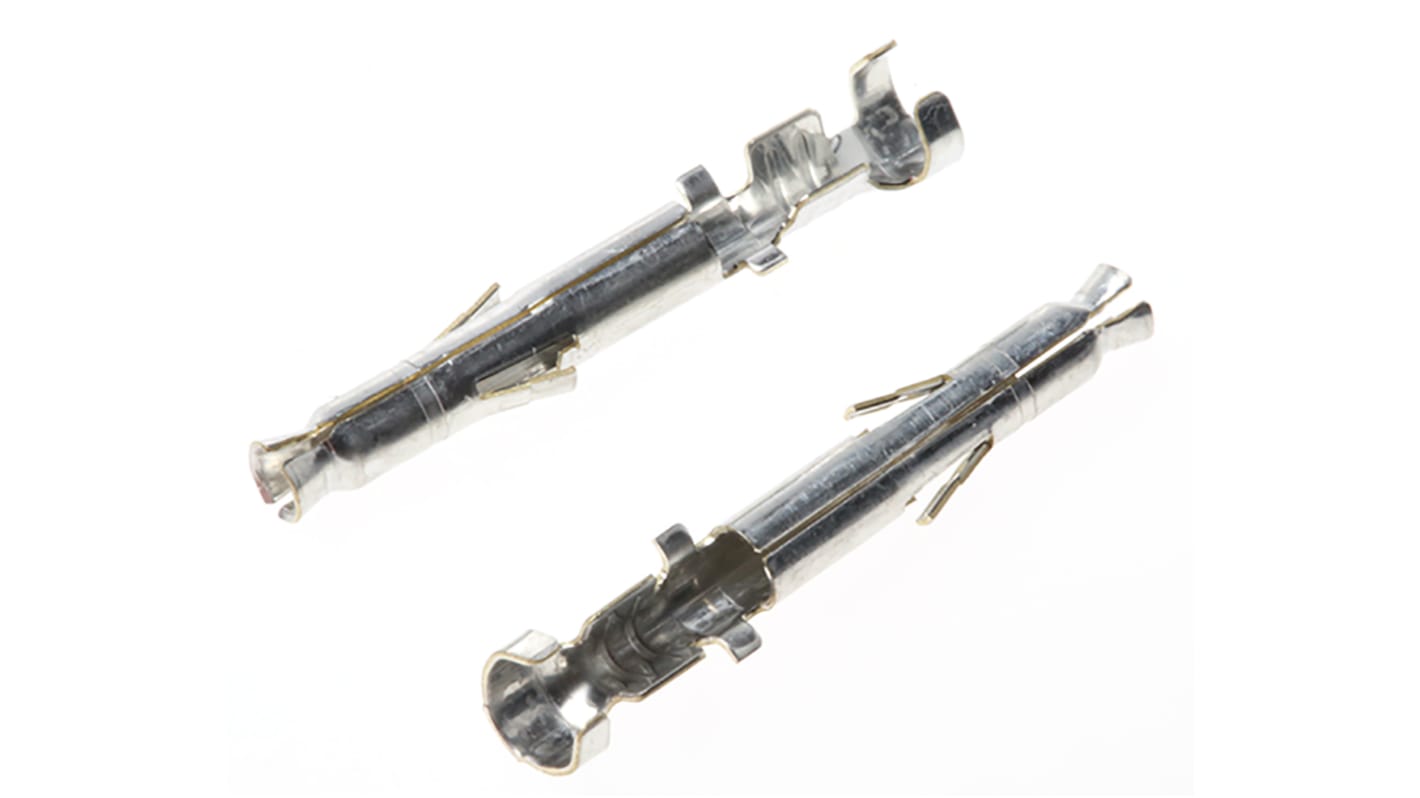

JST EL Series Female Crimp Terminal, 26 AWG Min Crimp, 20 AWG Max
- RS Stock No.:
- 688-1041
- Mfr. Part No.:
- LLF-01T-1.3E
- Brand:
- JST
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£7.30
(exc. VAT)
£8.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 1100 | £0.073 | £7.30 |
| 1200 - 2400 | £0.066 | £6.60 |
| 2500 - 4900 | £0.059 | £5.90 |
| 5000 - 9900 | £0.052 | £5.20 |
| 10000 + | £0.044 | £4.40 |
*price indicative
- RS Stock No.:
- 688-1041
- Mfr. Part No.:
- LLF-01T-1.3E
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | EL Connector Housing | |
| Current | 5A | |
| Series | EL | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 26AWG | |
| Minimum Wire Size mm² | 0.1mm² | |
| Maximum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size AWG | 20AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 10mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 90°C | |
| Length | 17.7mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With EL Connector Housing | ||
Current 5A | ||
Series EL | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 26AWG | ||
Minimum Wire Size mm² 0.1mm² | ||
Maximum Wire Size mm² 0.5mm² | ||
Maximum Wire Size AWG 20AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 10mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 90°C | ||
Length 17.7mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP
JST EL Series Terminal
The contacts for the compact EL connector can be easily inserted into the connector housings. The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distorted.
Features & Benefits
• Easy insertion and secure installation of contacts;• A smooth connection even when pried during mating;• Durable arm lock mechanism;• Two contact styles;• Interchangeability with ML connector
