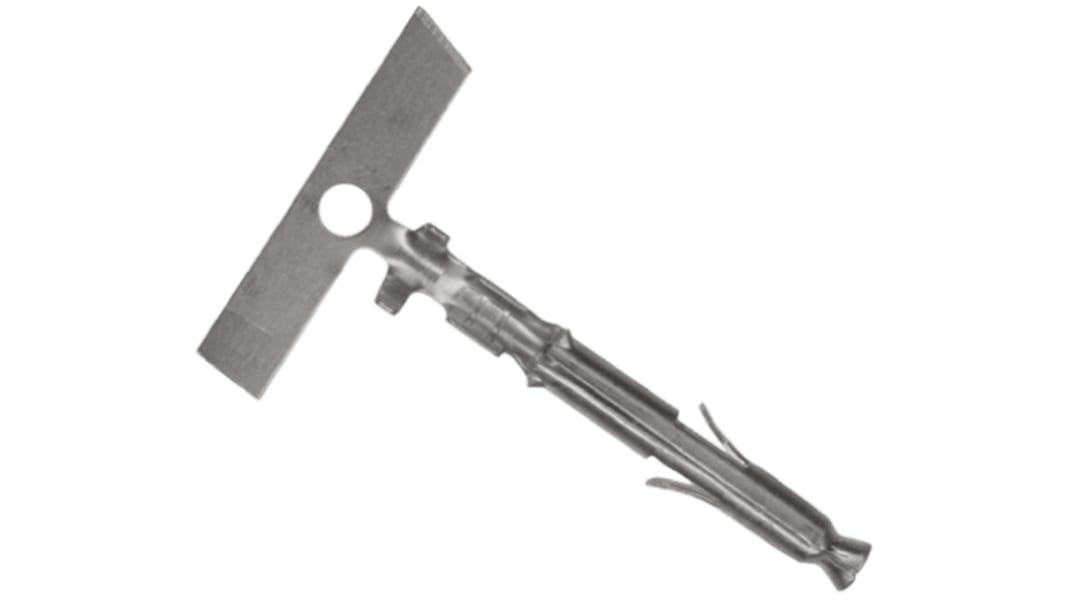

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22AWG Min, 18AWG Max
- RS Stock No.:
- 680-5066
- Mfr. Part No.:
- 170362-3
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 100 units)**
£45.60
(exc. VAT)
£54.70
(inc. VAT)
5800 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit | Per Pack** |
|---|---|---|
| 100 - 900 | £0.456 | £45.60 |
| 1000 - 2900 | £0.41 | £41.00 |
| 3000 - 7400 | £0.364 | £36.40 |
| 7500 - 14900 | £0.319 | £31.90 |
| 15000 + | £0.273 | £27.30 |
**price indicative
- RS Stock No.:
- 680-5066
- Mfr. Part No.:
- 170362-3
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing | |
| Series | Mini-Universal MATE-N-LOK | |
| Minimum Wire Size mm² | 0.3mm² | |
| Maximum Wire Size mm² | 0.9mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 22AWG | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Maximum Wire Size AWG | 18AWG | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With Mini-Universal MATE-N-LOK Connector Housing | ||
Series Mini-Universal MATE-N-LOK | ||
Minimum Wire Size mm² 0.3mm² | ||
Maximum Wire Size mm² 0.9mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 22AWG | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Maximum Wire Size AWG 18AWG | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +105°C | ||
