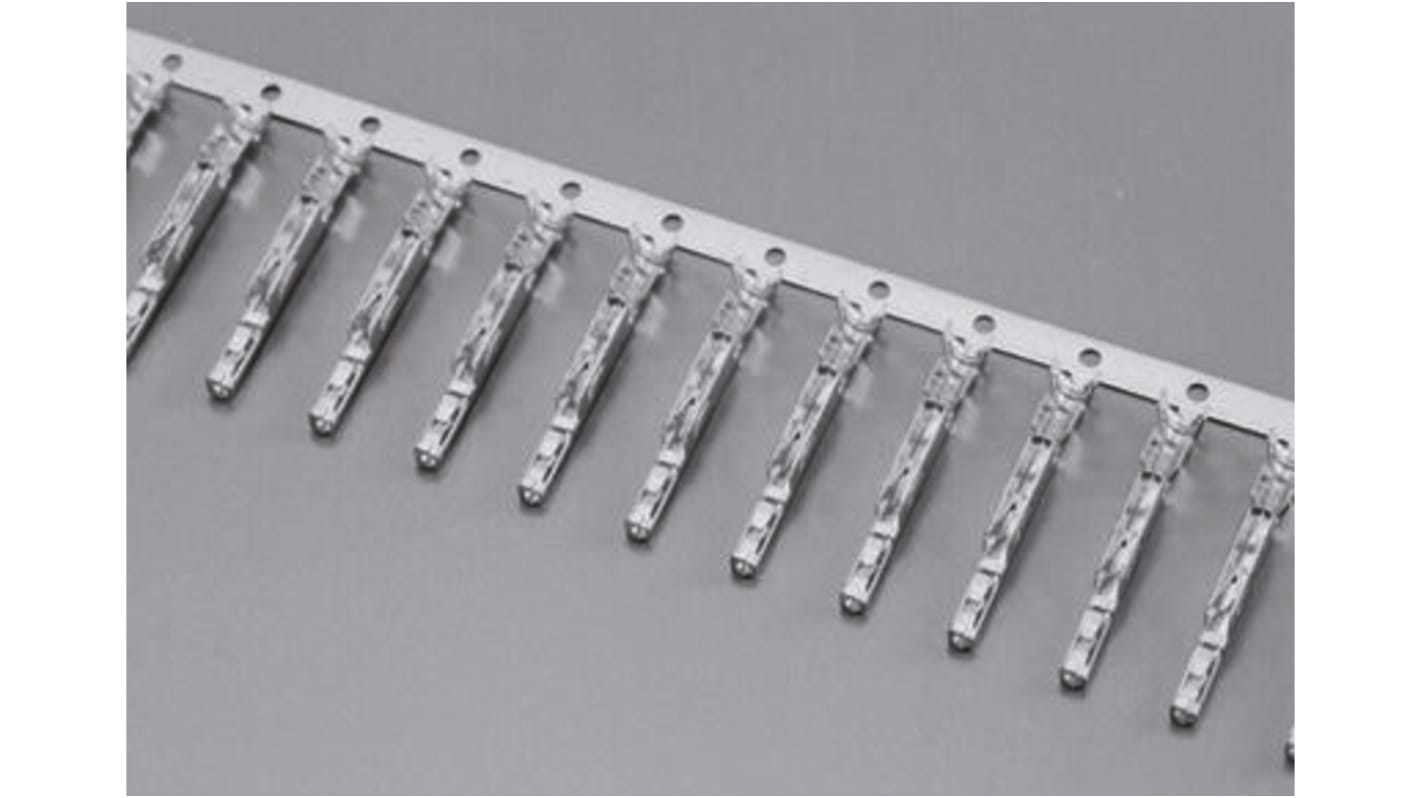

JAE IL-AG5 Series Female Crimp Terminal, 22AWG Min, 18AWG Max
- RS Stock No.:
- 632-4289
- Mfr. Part No.:
- IL-AG5-C1-5000
- Brand:
- JAE
Bulk discount available
Subtotal (1 pack of 100 units)*
£5.40
(exc. VAT)
£6.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,900 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
- Plus 4,400 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.054 | £5.40 |
| 500 + | £0.053 | £5.30 |
*price indicative
- RS Stock No.:
- 632-4289
- Mfr. Part No.:
- IL-AG5-C1-5000
- Brand:
- JAE
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JAE | |
| Gender | Female | |
| For Use With | IL-AG5 Connector Housing | |
| Series | IL-AG5 | |
| Minimum Wire Size mm² | 0.3mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.85mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Contact Plating | Tin | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand JAE | ||
Gender Female | ||
For Use With IL-AG5 Connector Housing | ||
Series IL-AG5 | ||
Minimum Wire Size mm² 0.3mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.85mm² | ||
Minimum Wire Size AWG 22AWG | ||
Contact Plating Tin | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
