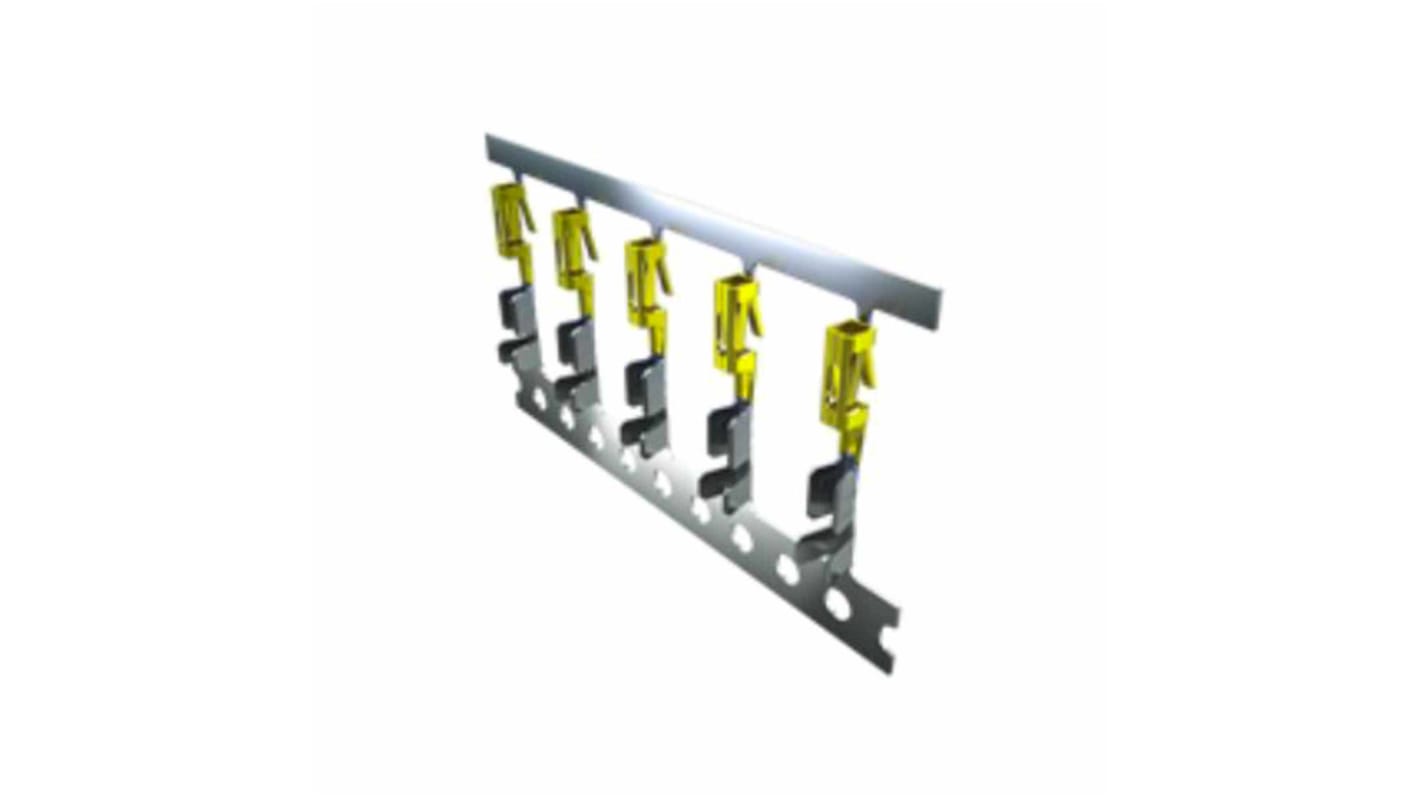

Samtec CC79R Series Female Crimp Terminal, 24 AWG Min Crimp, 24 AWG Max
- RS Stock No.:
- 208-0713
- Mfr. Part No.:
- CC79R-2024-01-F
- Brand:
- Samtec
Bulk discount available
Subtotal (1 reel of 12000 units)*
£636.00
(exc. VAT)
£768.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 12000 - 12000 | £0.053 | £636.00 |
| 24000 + | £0.05 | £600.00 |
*price indicative
- RS Stock No.:
- 208-0713
- Mfr. Part No.:
- CC79R-2024-01-F
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Gender | Female | |
| Product Type | Crimp Terminal | |
| For Use With | IPR1, CAT-HT-179-2030-13 hand tool and appropriate Samtec housings - Seris: IPD1, IPM1 | |
| Series | CC79R | |
| Current | 2.9A | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 24AWG | |
| Maximum Contact Resistance | 15mΩ | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Gender Female | ||
Product Type Crimp Terminal | ||
For Use With IPR1, CAT-HT-179-2030-13 hand tool and appropriate Samtec housings - Seris: IPD1, IPM1 | ||
Series CC79R | ||
Current 2.9A | ||
Minimum Wire Size AWG 24AWG | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 24AWG | ||
Maximum Contact Resistance 15mΩ | ||
Minimum Operating Temperature -55°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
The Samtec Crimp contact has 20 to 30 AWG PVC wire size.
20 to 30 AWG PVC wire
24 to 30 AWG Teflon® cable
Reeled contacts
