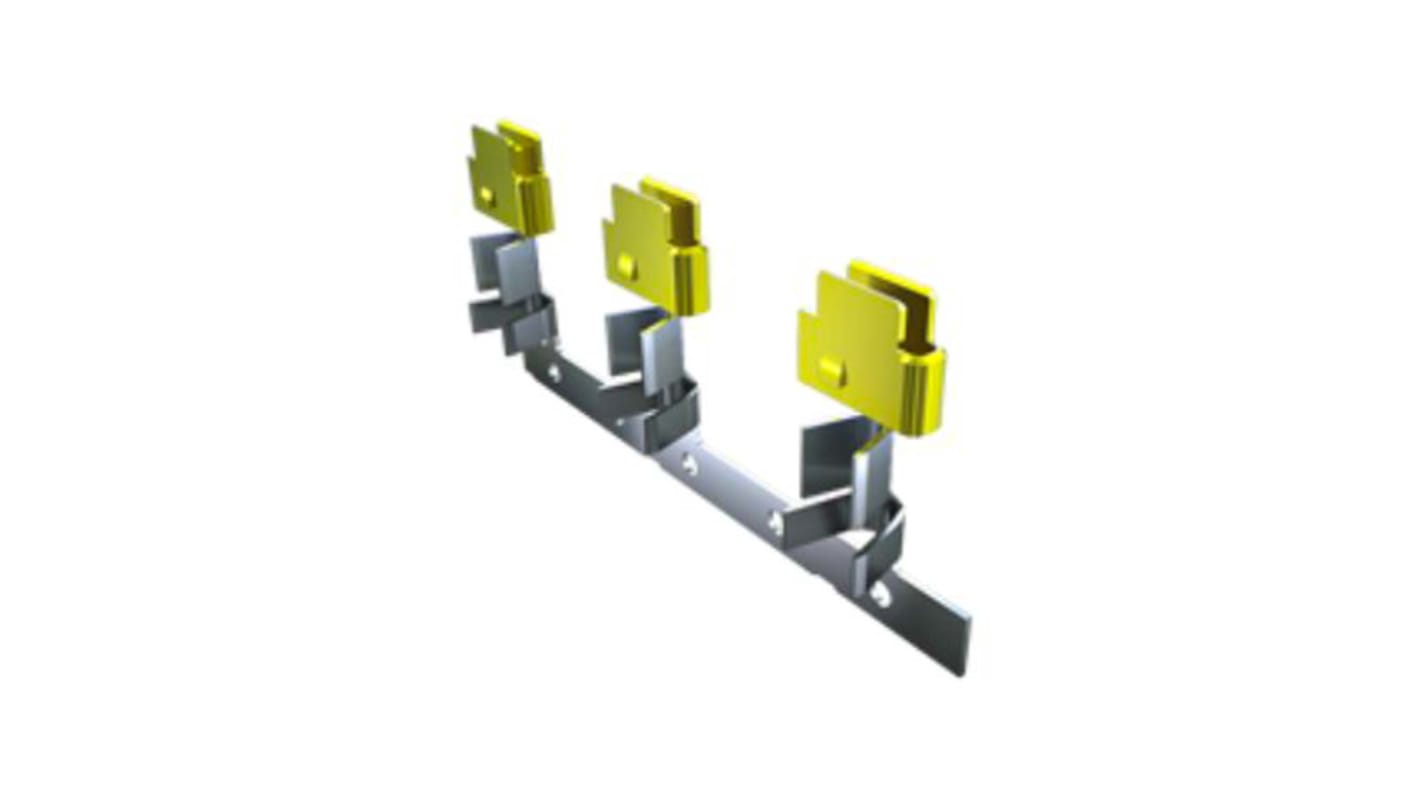

Samtec CC46R Series Female Crimp Terminal, 16 AWG Min Crimp, 16 AWG Max
- RS Stock No.:
- 208-0707
- Mfr. Part No.:
- CC46R-1416-01-L
- Brand:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£4.33
(exc. VAT)
£5.195
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 20 | £0.866 | £4.33 |
| 25 - 95 | £0.824 | £4.12 |
| 100 - 245 | £0.744 | £3.72 |
| 250 - 495 | £0.698 | £3.49 |
| 500 + | £0.642 | £3.21 |
*price indicative
- RS Stock No.:
- 208-0707
- Mfr. Part No.:
- CC46R-1416-01-L
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | CAT-HT-246-1416-14 hand tool and appropriate Samtec housings - Seris: IMS5 | |
| Current | 19.7A | |
| Series | CC46R | |
| Minimum Wire Size AWG | 16AWG | |
| Contact Plating | Gold | |
| Maximum Wire Size AWG | 16AWG | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 15mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With CAT-HT-246-1416-14 hand tool and appropriate Samtec housings - Seris: IMS5 | ||
Current 19.7A | ||
Series CC46R | ||
Minimum Wire Size AWG 16AWG | ||
Contact Plating Gold | ||
Maximum Wire Size AWG 16AWG | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 15mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
The Samtec Crimp contact has .197" (5.00 mm) pitch size.
.197" (5.00 mm) pitch
Copper alloy crimp termination contact
Accepts 14 to 16 AWG cable
Loose contacts
