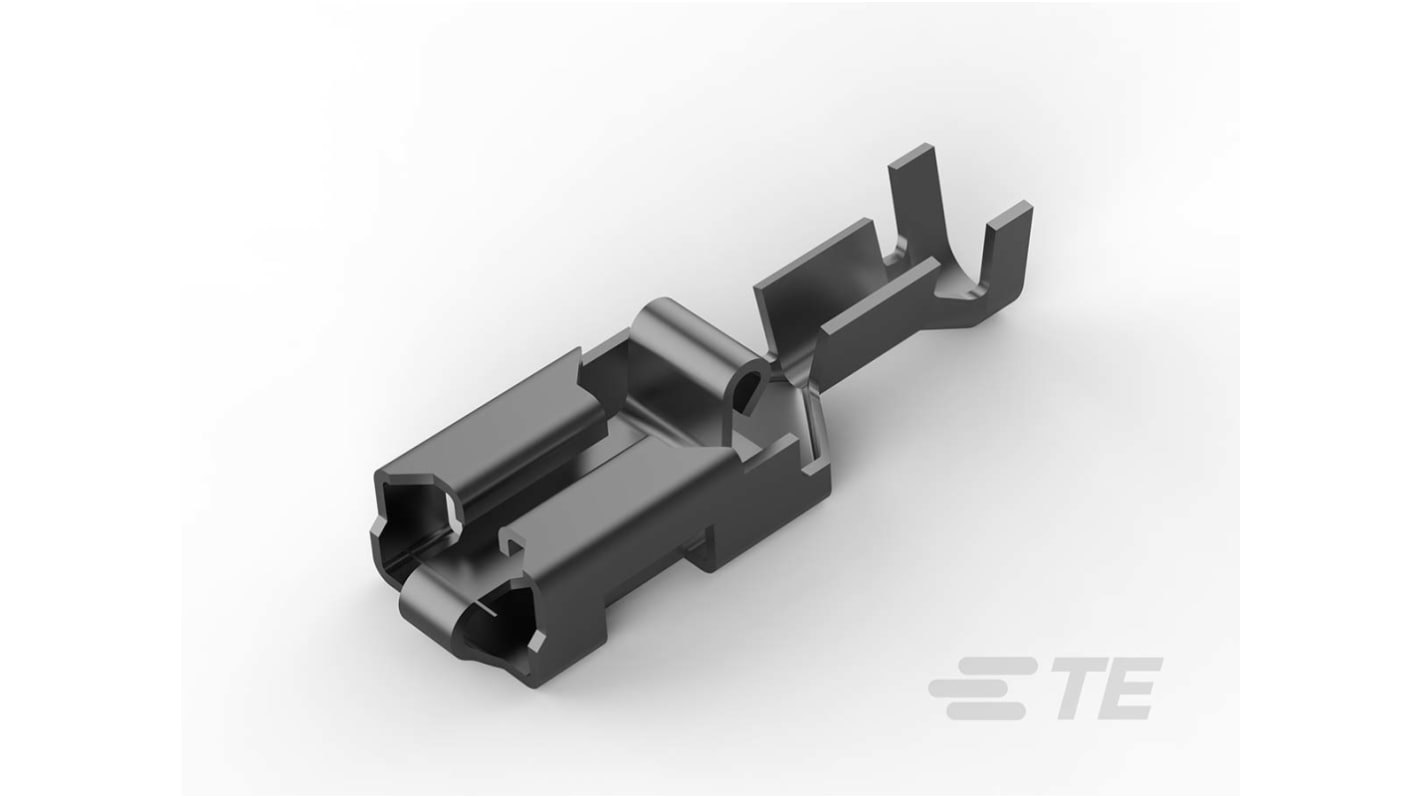

TE Connectivity 250 Series Female Crimp Terminal, 16AWG Max

View all Crimp Contacts
Bulk discount available

Subtotal (1 reel of 1500 units)*

£181.50

(exc. VAT)

£217.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1500 - 6000£0.121£181.50
7500 +£0.113£169.50

*price indicative

RS Stock No.:
205-8717
Mfr. Part No.:
1-160759-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Gender

Female

For Use With

Positive Lock 250 Series Housings

Series

250

Termination Method

Crimp

Maximum Wire Size AWG

16AWG

TE Connectivity Positive Lock Connector Contacts - MK I 250 Series


MK I 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.

The TE Connectivity Positive Lock 250 Quick Disconnects Receptacle.

Terminal & Splice Type?: Receptacle
Wire Size?(AWG): 20 – 15
Wire Size?(mm²): .51 – 1.65
Mating Tab Width?: 6.35?mm?[?.25?in?]
Mating Tab Thickness?: .81?mm?[?.032?in?]


TE Connectivity Positive Lock Range
