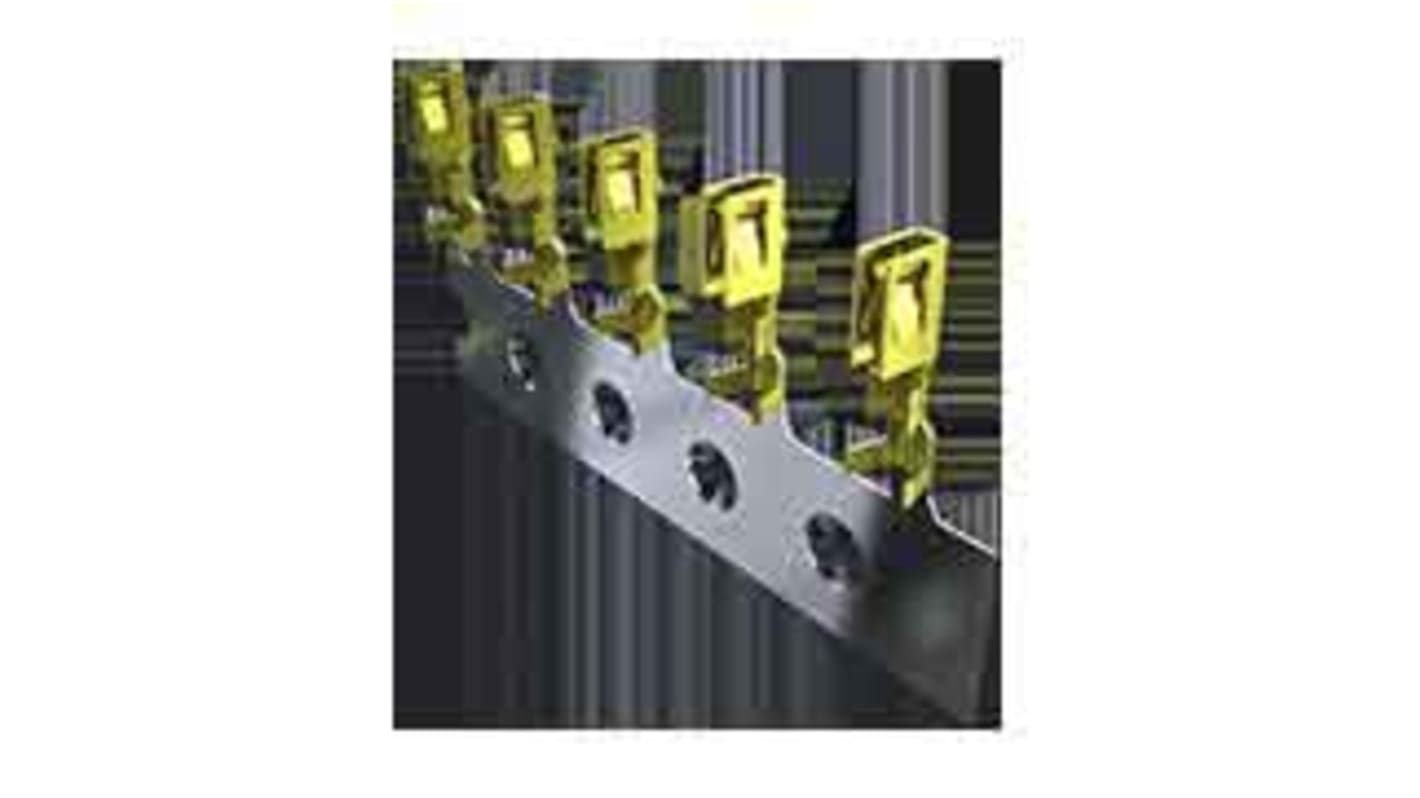

Samtec CC09M Series Female Crimp Terminal, 30 AWG Min Crimp, 28 AWG Max
- RS Stock No.:
- 180-1574
- Mfr. Part No.:
- CC09M-01-GF
- Brand:
- Samtec
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 100 units)*
£7.20
(exc. VAT)
£8.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 800 unit(s) ready to ship
- Plus 8,000 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £0.072 | £7.20 |
| 200 - 400 | £0.051 | £5.10 |
| 500 - 900 | £0.047 | £4.70 |
| 1000 - 2400 | £0.044 | £4.40 |
| 2500 + | £0.04 | £4.00 |
*price indicative
- RS Stock No.:
- 180-1574
- Mfr. Part No.:
- CC09M-01-GF
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | Housing ISS1 | |
| Series | CC09M | |
| Current | 2.5A | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 28AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 15mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With Housing ISS1 | ||
Series CC09M | ||
Current 2.5A | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 28AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 15mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
1.00 mm (.0394") pitch
Crimp-style dual leaf contact
Assembly tooling available
Reeled contacts (5k reel)
