JST ACH Series Female Crimp Terminal, 30AWG Min, 28AWG Max

View all Crimp Contacts
Bulk discount available

Subtotal (1 pack of 100 units)*

£9.60

(exc. VAT)

£11.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 700 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 400£0.096£9.60
500 - 900£0.087£8.70
1000 - 2400£0.08£8.00
2500 - 4900£0.074£7.40
5000 +£0.069£6.90

*price indicative

RS Stock No.:
175-5710
Mfr. Part No.:
SACH-003G-P0.2
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Gender

Female

For Use With

ACH Connectors

Series

ACH

Minimum Wire Size mm²

0.05mm²

Maximum Wire Size mm²

0.08mm²

Termination Method

Crimp

Minimum Wire Size AWG

30AWG

Maximum Wire Size AWG

28AWG

Contact Material

Copper Alloy

Maximum Contact Resistance

20mΩ

Minimum Operating Temperature

-25°C

Maximum Current

2A

Maximum Operating Temperature

+85°C

COO (Country of Origin):
JP

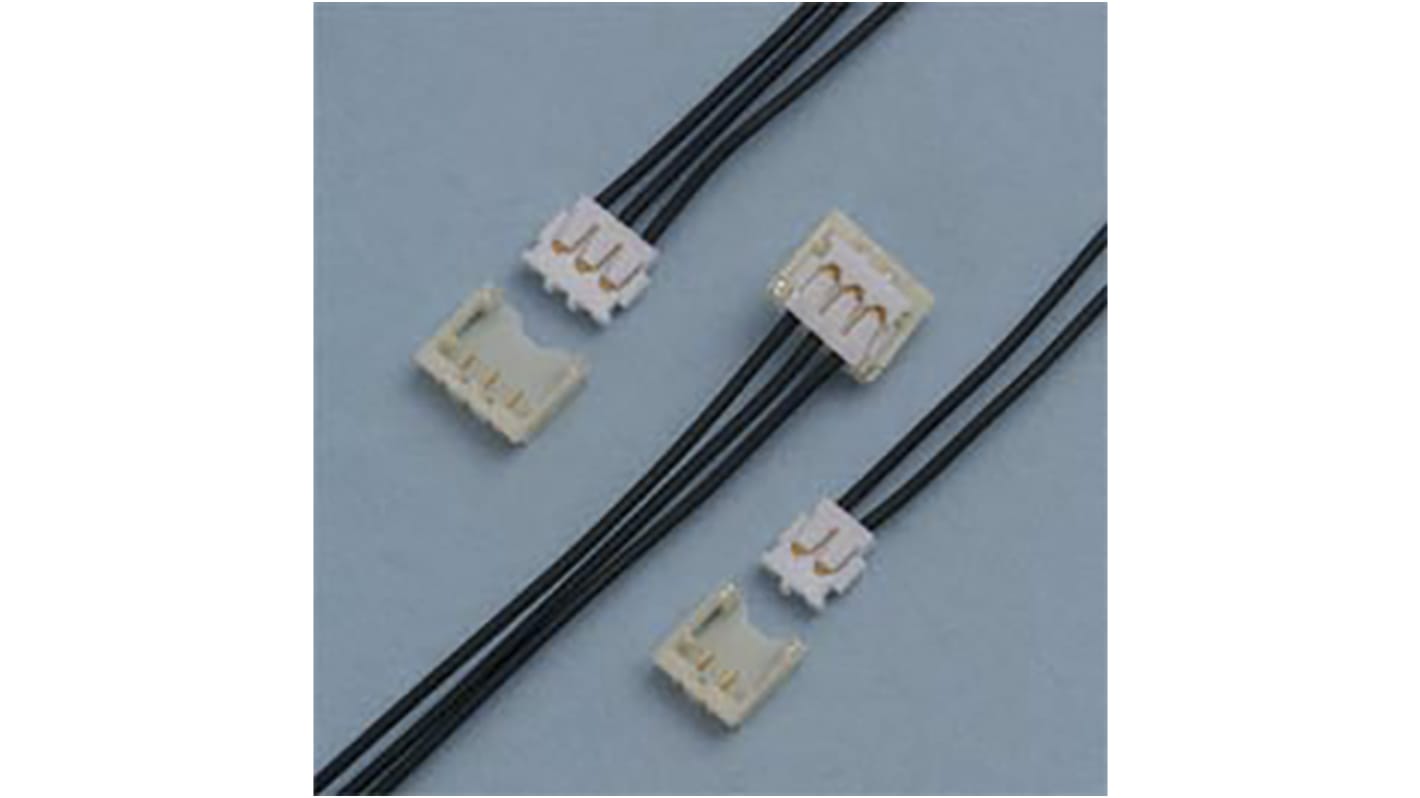

This connector is compact and low profile type, height: 1.4mm and width 4.3mm, 1.2mm pitch wire-to-board connector.

top entry but side feed type
Connector for dc power supply
Corresponding to sucking nozzle of pick and place machine
