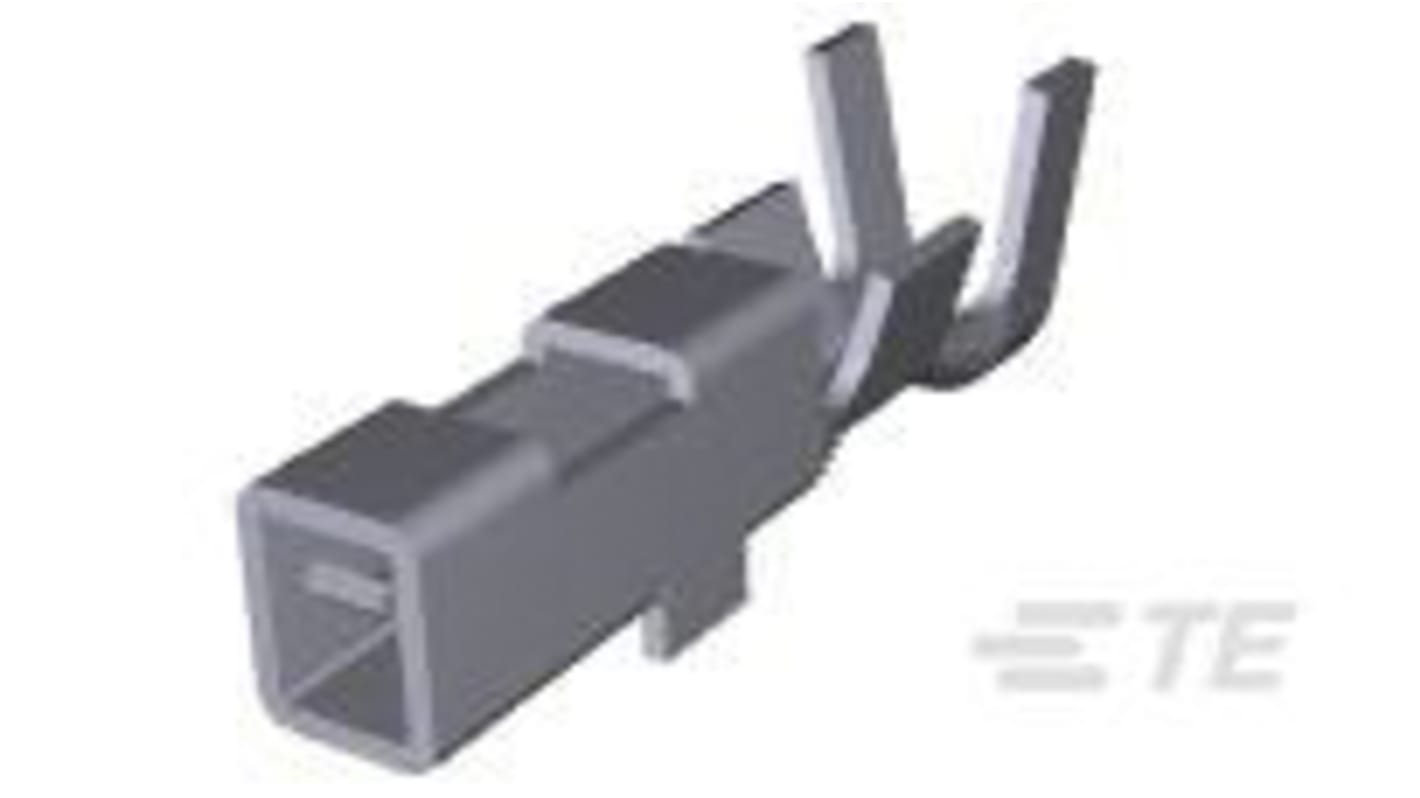

TE Connectivity Dynamic 1000 Series Female Crimp Terminal, 28AWG Min, 22AWG Max
- RS Stock No.:
- 174-3198
- Mfr. Part No.:
- 1871743-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 50 units)*
£11.55
(exc. VAT)
£13.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.231 | £11.55 |
| 250 - 1200 | £0.178 | £8.90 |
| 1250 - 2450 | £0.122 | £6.10 |
| 2500 - 4950 | £0.111 | £5.55 |
| 5000 + | £0.106 | £5.30 |
*price indicative
- RS Stock No.:
- 174-3198
- Mfr. Part No.:
- 1871743-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| For Use With | Tab Contact | |
| Series | Dynamic 1000 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 0.38mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Copper Alloy | |
| Series Number | 1000 | |
| Maximum Contact Resistance | 20mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
For Use With Tab Contact | ||
Series Dynamic 1000 | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 0.38mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Copper Alloy | ||
Series Number 1000 | ||
Maximum Contact Resistance 20mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- JP
D-1000 Series are the smallest connectors for signal lines among all the Dynamic connector series. The Dynamic 1000 Series consists of 3 different pitch sizes: 2.0mm standard type, 2.5mm high-voltage type and 3.5mm type. D-1000 Series has gold plated contacts to maintain its high reliability and also tin plated contacts for economical market needs.
Wide Applicable Wire Range
D-1000 series has wide applicable wire range of 30 AWG through 18 AWG with 2.2 mm of outside diameter maximum (D-1200/D-1500). Therefore there are no special safety considerations using it in electrical cabinets.
Hand Tools are available for all wire sizes. It can save on delivery lead time and involve minimal installation tooling costs.
Housing and Contact Features
Housing products
The D-1000 series consists of D-1100 series for 2.0mm pitch center line, D-1200 series for 2.5mm pitch center line as standard type. s.
D-1000 series has wide applicable wire range of 30 AWG through 18 AWG with 2.2 mm of outside diameter maximum (D-1200/D-1500). Therefore there are no special safety considerations using it in electrical cabinets.
Hand Tools are available for all wire sizes. It can save on delivery lead time and involve minimal installation tooling costs.
Housing and Contact Features
Housing products
The D-1000 series consists of D-1100 series for 2.0mm pitch center line, D-1200 series for 2.5mm pitch center line as standard type. s.
