JST JWPS Series Female Crimp Terminal Contact, 22AWG Min, 18AWG Max
- RS Stock No.:
- 172-4877
- Mfr. Part No.:
- SJWPSR-21T-P1.0
- Brand:
- JST
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 172-4877
- Mfr. Part No.:
- SJWPSR-21T-P1.0
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Gender | Female | |
| For Use With | JWPS Connector Housing | |
| Series | JWPS | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.8mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Contact Plating | Tin | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Copper Alloy | |
| Maximum Current | 6A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85 °C, +85 °C | |
Select all | ||
|---|---|---|
Brand JST | ||
Gender Female | ||
For Use With JWPS Connector Housing | ||
Series JWPS | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.8mm² | ||
Minimum Wire Size AWG 22AWG | ||
Contact Plating Tin | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Copper Alloy | ||
Maximum Current 6A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85 °C, +85 °C | ||
- COO (Country of Origin):
- JP

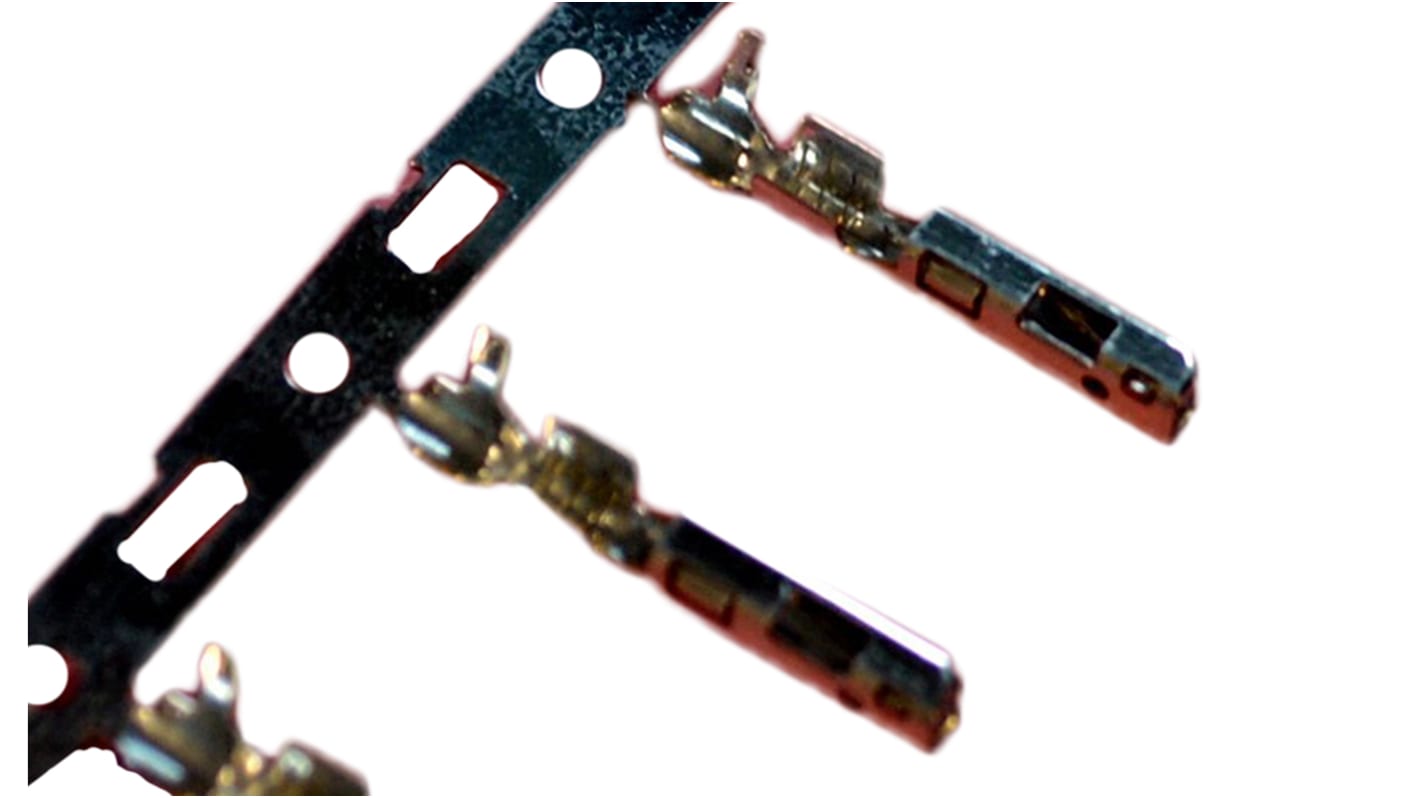

JST 4.0mm JWPS Waterproof IP67 Tab and Receptacle Crimp Contacts
Crimp tab contact (stock number 906-0143) for use in the 4.0mm JWPS waterproof IP67 tab housing connectors and crimp receptacle contact for use in the 4.0mm JWPS waterproof IP67 recepatcle housing connectors. The JWPS contact system features a a double spring construction that ensures superior contact force.
A crimp tool is also available, see stock number 906-0152
A crimp tool is also available, see stock number 906-0152
JST 4.0mm JWPS Waterproof Wire to Wire and Wire to Board Connectors
