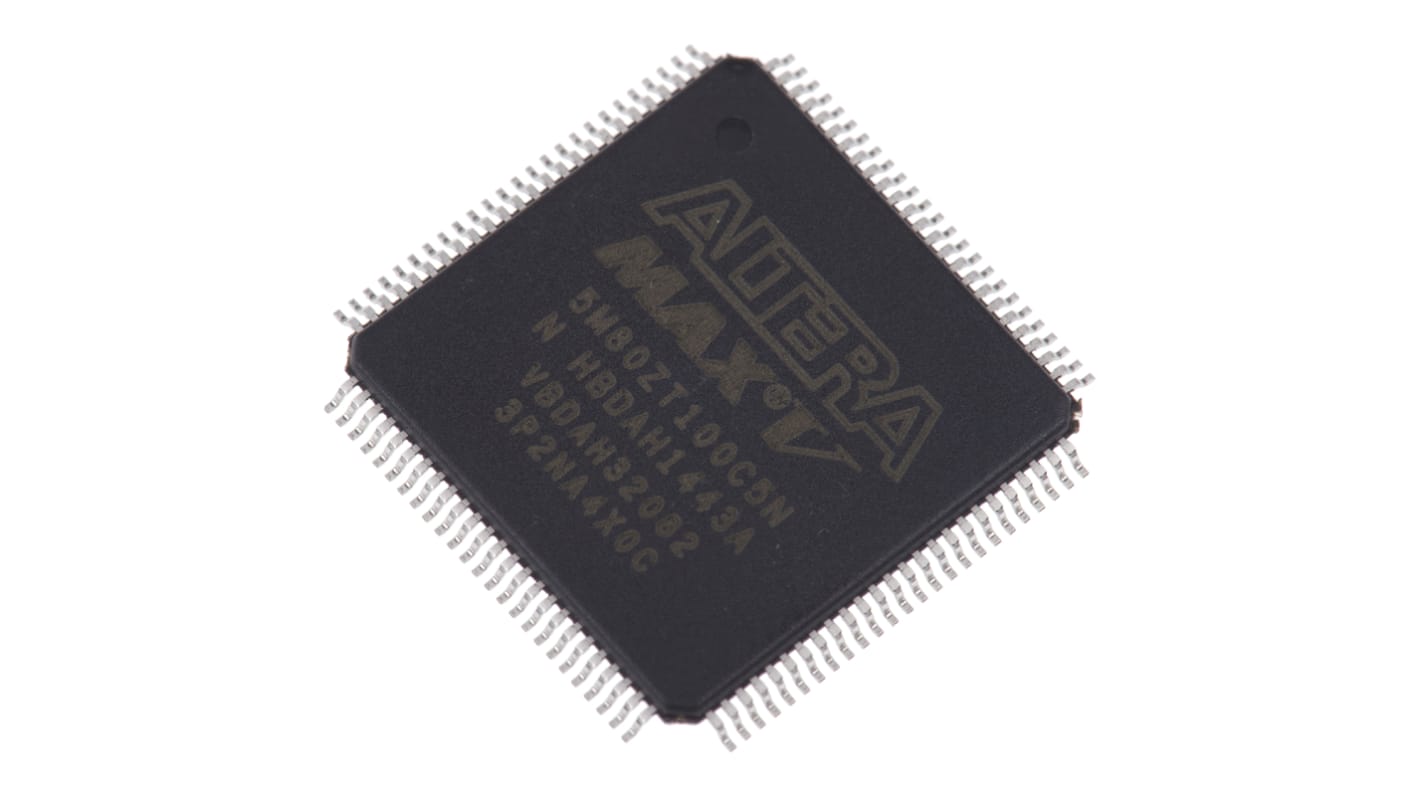

Altera 5M80ZT100C5N, CPLD MAX V Flash 64 Cells, 79 I/O, 80 Labs, 7.5ns, ISP, 100-Pin TQFP

RS Stock No.:: 771-6743
Mfr. Part No.:: 5M80ZT100C5N
Brand:: Altera

Altera 5M80ZT100C5N, CPLD MAX V Flash 64 Cells, 79 I/O, 80 Labs, 7.5ns, ISP, 100-Pin TQFP

Discontinued product

RS Stock No.:: 771-6743
Mfr. Part No.:: 5M80ZT100C5N
Brand:: Altera

Section I. MAX V Device Core
ESD Control Selection Guide V1

Be the first to know about our latest products and services

Join our mailing list today:

The personal information you provide to us when signing up to the mailing list will be processed in line with our privacy policy.

Attribute	Value
Family Name	MAX V
Number of Macro Cells	64
Number of User I/Os	79
Memory Type	Flash
Number of Logic Blocks/Elements	80
In System Programmability	In System
Mounting Type	Surface Mount
Package Type	TQFP
Pin Count	100
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	0 °C
Propagation Delay	7.5ns
Individual Output Enable Control	Yes
Dimensions	14 x 14 x 1.05mm
Height	1.05mm
Maximum Operating Supply Voltage	1.89 V
Length	14mm
Propagation Delay Test Condition	10pF
Minimum Operating Supply Voltage	1.71 V
Width	14mm

Altera 5M80ZT100C5N, CPLD MAX V Flash 64 Cells, 79 I/O, 80 Labs, 7.5ns, ISP, 100-Pin TQFP

Complex Programmable Logic Devices, Altera
