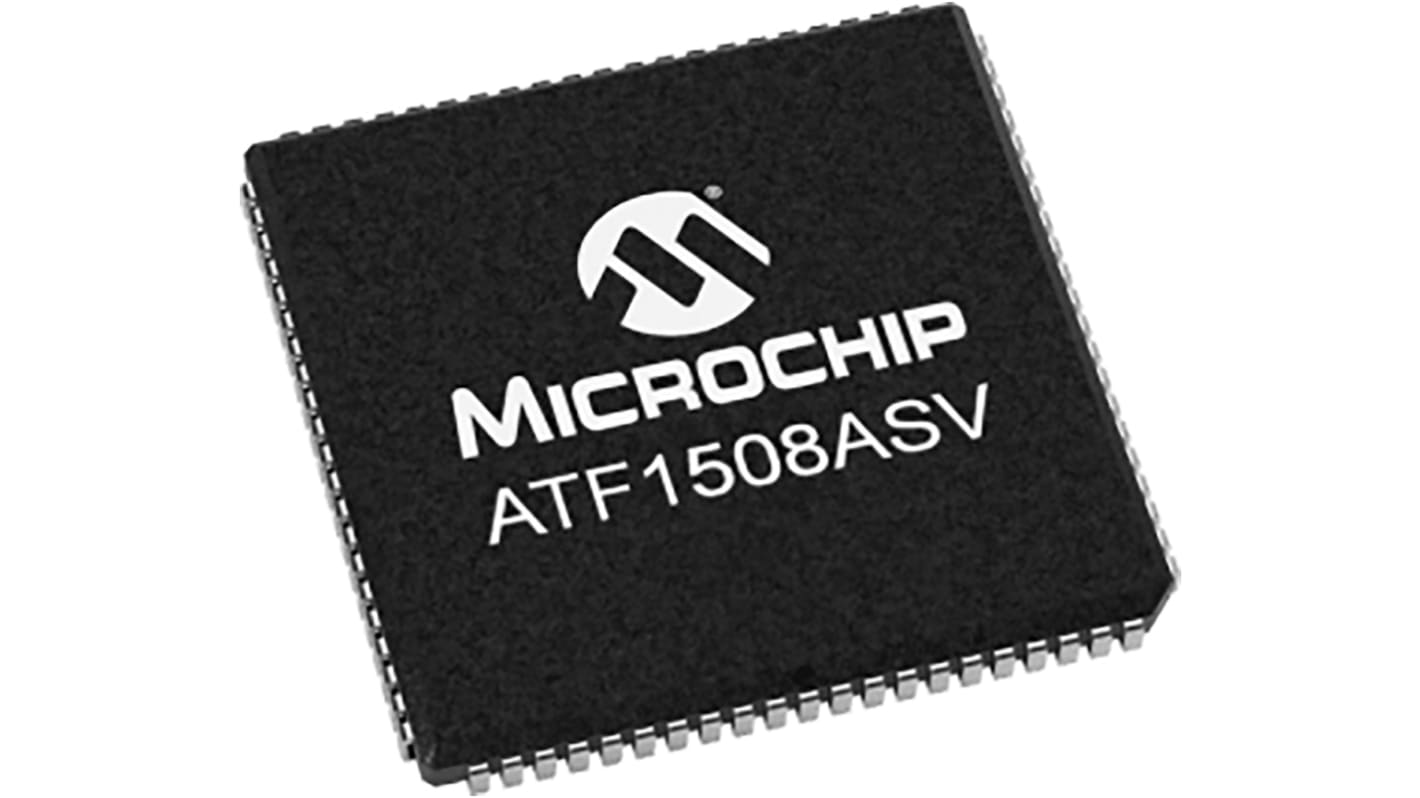

Microchip ATF1508ASV-15AU100, CPLD Atmel EEPROM 128 Cells, 80 I/O, 14 Labs, 15ns, ISP, 100-Pin TQFP

  • RS Stock No. 177-3435
  • Mfr. Part No. ATF1508ASV-15AU100
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Microchip Technology CPLD

The Microchip Technology Atmel family, TQFP package, surface mount, 100-pin, high performance, a high-density complex programmable logic device (CPLD) is an electrically erasable device. It has a voltage rating between 3.3V and 5V. The (CPLD) is designed with 128 logic macrocells and up to 100 inputs. This device easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs.

Features and Benefits

• 14 logic block elements
• 80 bidirectional I/O pins and four dedicated input pins depending on the type of device package selected
• Advanced EE technology
• Advanced power management
• D/T/Latch configurable flip flops
• EEPROM memory type
• Green (Pb/Halide-free) package options
• In-system programmability (ISP) via JTAG
• Integrated power-on reset and brown-out reset
• JTAG boundary scan testing
• Operating frequency is 77MHz
• Operating temperature ranges between -40°C and 85°C
• Pin-to-pin delay is 7.5ns
• Propagation delay is 15ns
• Security fuse feature
• Three global clock pins

Applications

• Digital designs
• Electronic product designers

Specifications
Attribute Value
Family Name Atmel
Number of Macro Cells 128
Number of User I/Os 80
Memory Type EEPROM
Number of Logic Blocks/Elements 14
In System Programmability In System
Mounting Type Surface Mount
Package Type TQFP
Pin Count 100
Propagation Delay 15ns
Individual Output Enable Control Yes
Dimensions 14.1 x 14.1 x 1.05mm
Height 1.05mm
Length 14.1mm
Width 14.1mm
Minimum Operating Temperature -40 °C
Minimum Operating Supply Voltage 3 V
Maximum Operating Temperature +85 °C
Re-programmability Support Yes
Maximum Operating Supply Voltage 3.6 V
90 In stock for FREE next working day delivery
Price Each (In a Tray of 90)
£ 3.315
(exc. VAT)
£ 3.978
(inc. VAT)
Units
Per unit
Per Tray*
90 - 90
£3.315
£298.35
180 +
£3.234
£291.06
*price indicative
