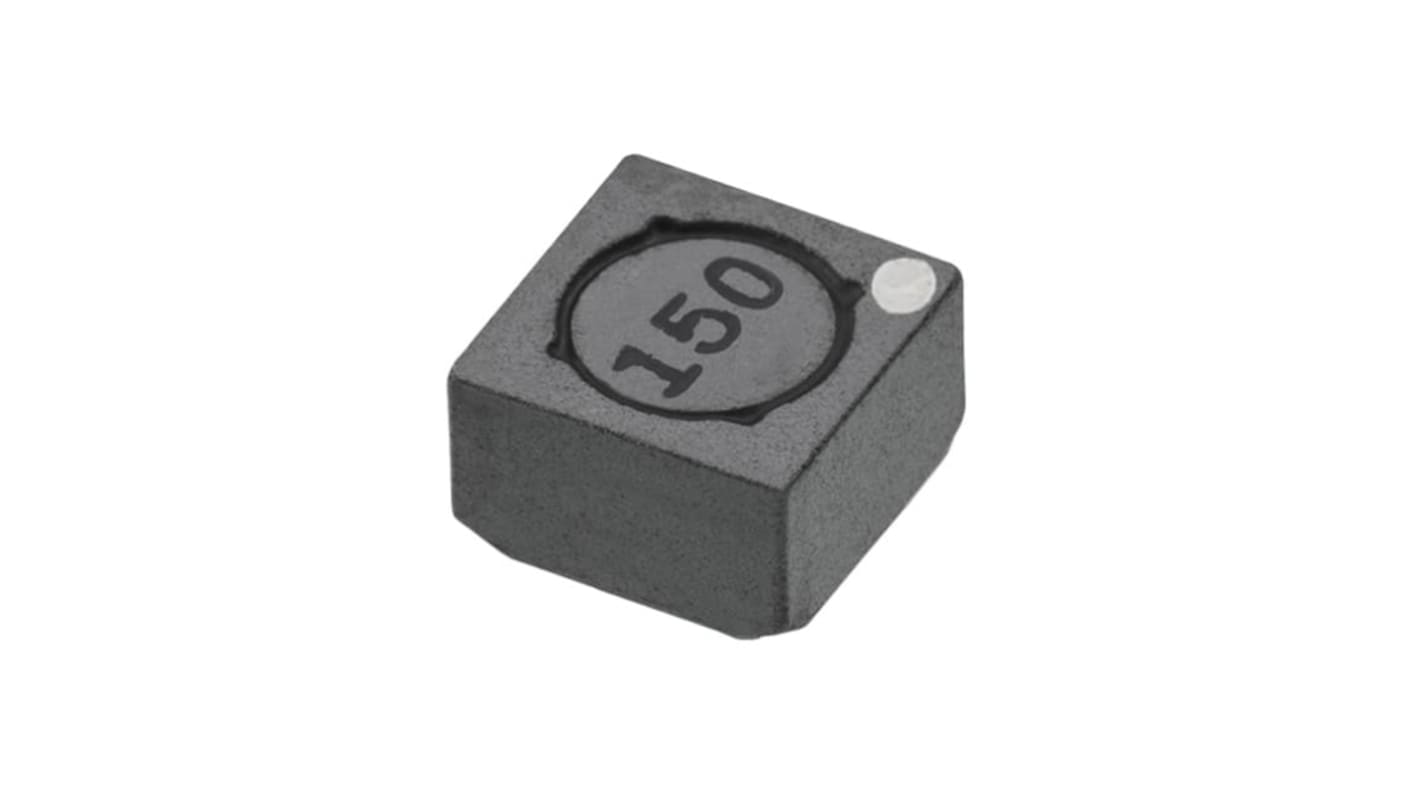

Wurth Elektronik Surface Mount Multi-Turn Ratio coupled Inductor Coupled Inductor Iron Oxide Core, 22 μH
- RS Stock No.:
- 258-5727
- Mfr. Part No.:
- 744889030220
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2000 units)*
£1,904.00
(exc. VAT)
£2,284.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.952 | £1,904.00 |
*price indicative
- RS Stock No.:
- 258-5727
- Mfr. Part No.:
- 744889030220
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 22μH | |
| Product Type | Coupled Inductor | |
| Core Material | Iron Oxide | |
| Tolerance | ±20 % | |
| Current Rating | 600mA | |
| Voltage | 80V | |
| Series | WE-MTCI | |
| Package/Case | 5030 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 5.2mm | |
| Inductor Construction | Surface Mount Multi-Turn Ratio coupled Inductor | |
| Height | 3.1mm | |
| Depth | 5.2mm | |
| Automotive Standard | AEC-Q200 | |
| Dimensions | 3.1 x 5.2 x 5.2 mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 22μH | ||
Product Type Coupled Inductor | ||
Core Material Iron Oxide | ||
Tolerance ±20 % | ||
Current Rating 600mA | ||
Voltage 80V | ||
Series WE-MTCI | ||
Package/Case 5030 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 5.2mm | ||
Inductor Construction Surface Mount Multi-Turn Ratio coupled Inductor | ||
Height 3.1mm | ||
Depth 5.2mm | ||
Automotive Standard AEC-Q200 | ||
Dimensions 3.1 x 5.2 x 5.2 mm | ||
The Wurth Elektronik SMT multi turn ratio coupled Inductor, smallest coupled inductor with different Turn Ratio and 0.5 kV isolation with magnetically shielded.
Smallest Coupled Inductor with different Turn Ratio and 0.5 kV isolation
1:N Transformer
Operation temperature -40 °C to +125 °C
