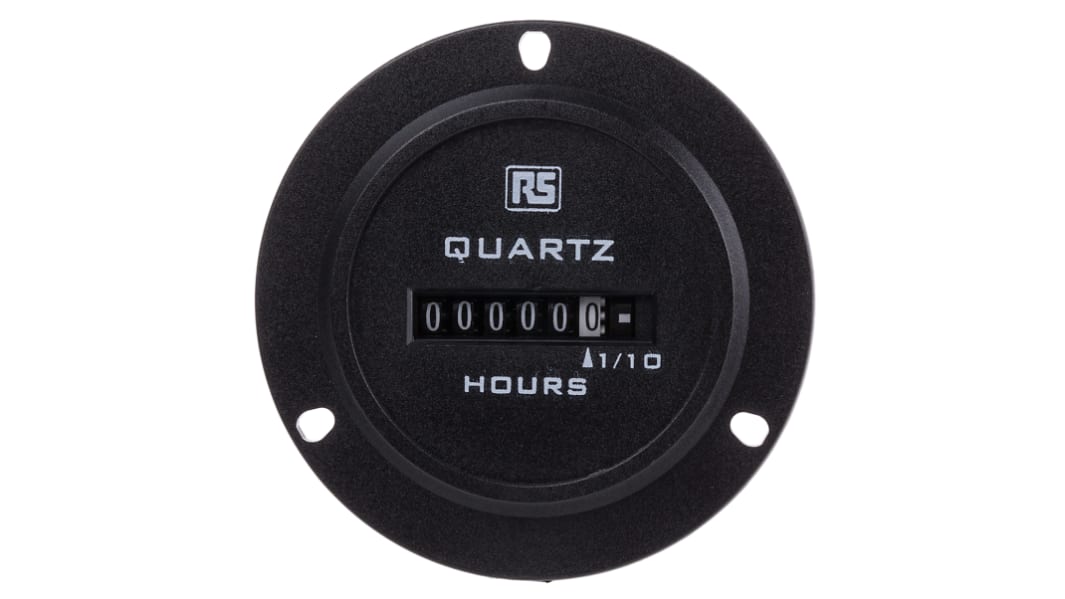

RS PRO Hour Meter, 6 Digit Analogue, 50Hz, 90 → 264 V ac
- RS Stock No.:
- 896-6917
- Distrelec Article No.:
- 304-05-962
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£18.65
(exc. VAT)
£22.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 323 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.65 |
| 5 - 9 | £17.90 |
| 10 + | £17.16 |
*price indicative
- RS Stock No.:
- 896-6917
- Distrelec Article No.:
- 304-05-962
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 90 → 264 V ac | |
| Count Mode | Hours | |
| Display Type | Analogue | |
| Function | Hour Meter | |
| Input Type | Voltage | |
| Connection Type | Spade Terminal | |
| Reset Method | No Reset | |
| Number of Digits | 6 | |
| Mounting Type | Panel Mount | |
| Count Direction | Up | |
| Digit Height | 3.6 mm | |
| Maximum Count Frequency | 50 Hz, 60Hz | |
| Cutout Size | 64.26 (Dia.) mm | |
| Minimum Operating Temperature | -40°C | |
| Minimum Measurement | 0h | |
| Meter Accuracy | ±0.02% | |
| Approvals | CE, cRUus, NEMA 4X, RoHS, SAE | |
| Meter Type | Electronic | |
| Depth | 67.9mm | |
| Cutout Width | 64.26 (Dia.)mm | |
| Cutout Height | 24.1mm | |
| Weight | 47g | |
| Measurement Range | 0 → 99999.9h | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 90 → 264 V ac | ||
Count Mode Hours | ||
Display Type Analogue | ||
Function Hour Meter | ||
Input Type Voltage | ||
Connection Type Spade Terminal | ||
Reset Method No Reset | ||
Number of Digits 6 | ||
Mounting Type Panel Mount | ||
Count Direction Up | ||
Digit Height 3.6 mm | ||
Maximum Count Frequency 50 Hz, 60Hz | ||
Cutout Size 64.26 (Dia.) mm | ||
Minimum Operating Temperature -40°C | ||
Minimum Measurement 0h | ||
Meter Accuracy ±0.02% | ||
Approvals CE, cRUus, NEMA 4X, RoHS, SAE | ||
Meter Type Electronic | ||
Depth 67.9mm | ||
Cutout Width 64.26 (Dia.)mm | ||
Cutout Height 24.1mm | ||
Weight 47g | ||
Measurement Range 0 → 99999.9h | ||
- COO (Country of Origin):
- IN
RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 90 to 264 V AC
Choose this RS PRO hour meter to keep an eye on how long your machinery has been running. It counts in hours from 0 to 99999.99, making it suitable for use in a variety of applications.
This hour meter counter is highly accurate and displays up to six digits. It's resistant to shock and vibration, so it can withstand heavy-duty use in harsh environments. It also has an Ingress Protection (IP) rating of IP66, meaning it's safe from dust and low-pressure water sprays.
You can be sure of this product's reliability as it has a range of international approvals. This type of hour meter is commonly used in production lines and dairy farms.
This hour meter counter is highly accurate and displays up to six digits. It's resistant to shock and vibration, so it can withstand heavy-duty use in harsh environments. It also has an Ingress Protection (IP) rating of IP66, meaning it's safe from dust and low-pressure water sprays.
You can be sure of this product's reliability as it has a range of international approvals. This type of hour meter is commonly used in production lines and dairy farms.
Features and Benefits
- CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved
- Spade terminal connection type
- Count capacity of 99999.9 h
- Count direction of up
- Count mode of hours
- Cutout height of 24.1 mm
- Cutout width of 64.26 mm
- Depth of 67.9 mm
- Digit height of 3.6 mm
- Analogue display type
- Hour meter function
- Voltage input type
- Minimum measurement of 0 h
- Maximum measurement of 99999.9 h
- Meter accuracy of ±0.02%
- Electronic meter type
- Maximum count frequency of 50 Hz, 60 Hz
- Minimum operating temperature of -40°C
- Panel mounting type
- Six digits
- No reset method
- Round shape
- Supply voltage of 90 to 264 V AC
- Weight of 47 g
