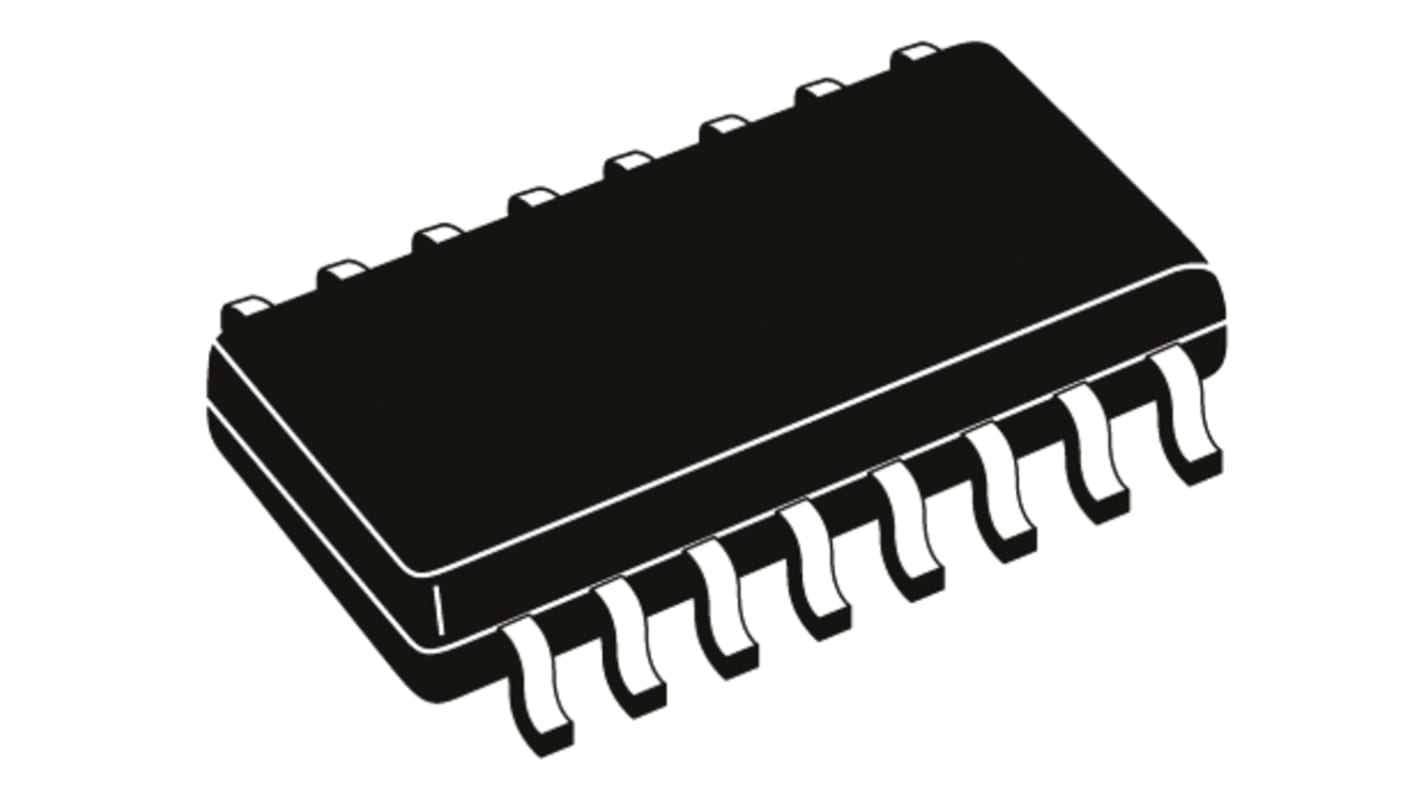

Nexperia 74LV595D,112 8 Surface Mount Shift Register 74LV 16 SOIC
- RS Stock No.:
- 816-8713
- Mfr. Part No.:
- 74LV595D,112
- Brand:
- Nexperia
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 816-8713
- Mfr. Part No.:
- 74LV595D,112
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Shift Register | |
| Package Type | SOIC | |
| Logic Function | Shift Register | |
| Number of Stages | 8 | |
| Logic Family | 74LV | |
| Mount Type | Surface Mount | |
| Number of Elements | 1 | |
| Pin Count | 16 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Direction Type | Uni-Directional | |
| Reset Type | Asynchronous | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Shift Register | ||
Package Type SOIC | ||
Logic Function Shift Register | ||
Number of Stages 8 | ||
Logic Family 74LV | ||
Mount Type Surface Mount | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Direction Type Uni-Directional | ||
Reset Type Asynchronous | ||
74LV Family, Nexperia
Low-Voltage CMOS logic
Operating Voltage: 1.0 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LV Family
