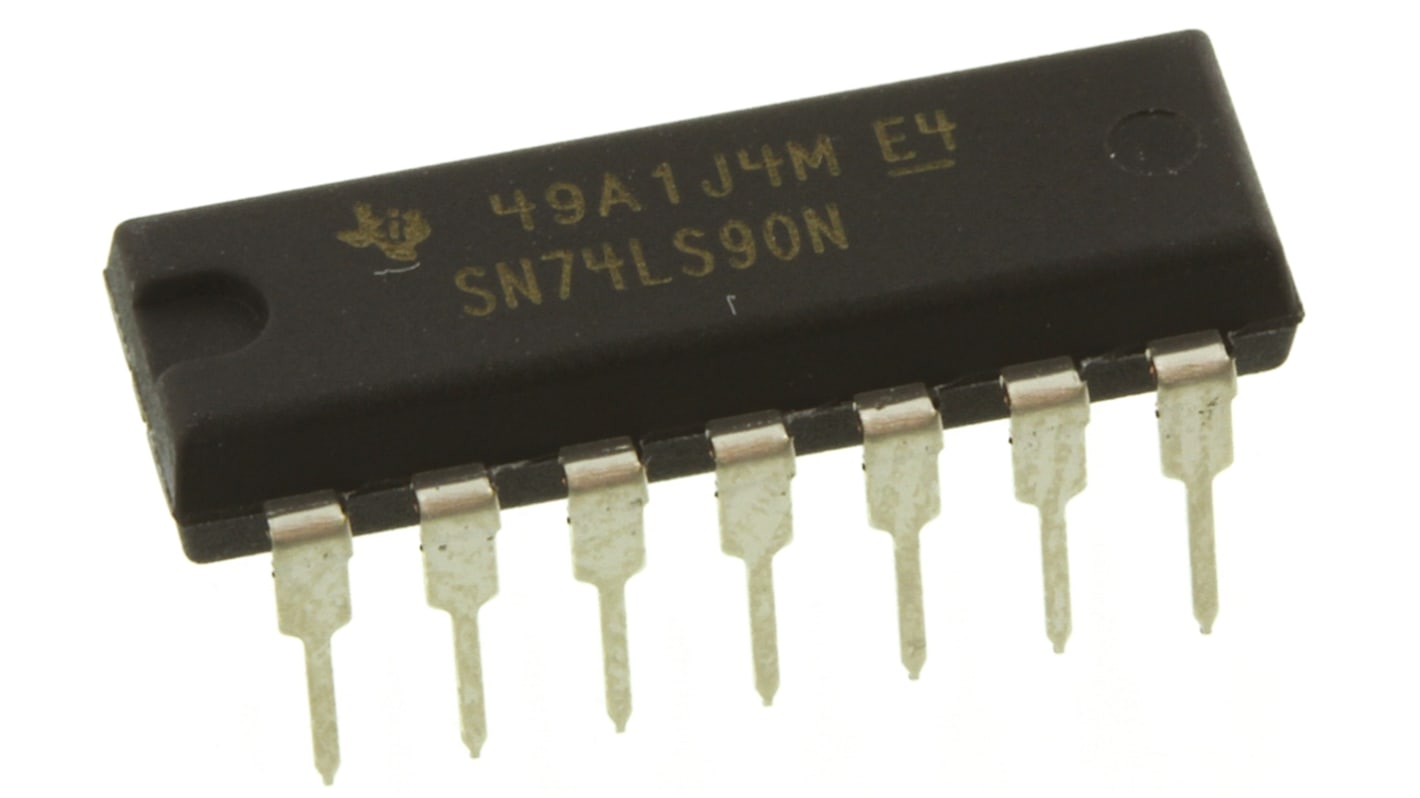

Texas Instruments SN74LS90N 4 Through Hole Decade Counter LS 14 PDIP
- RS Stock No.:
- 663-2622
- Mfr. Part No.:
- SN74LS90N
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 5 units)*
£13.57
(exc. VAT)
£16.285
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 285 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.714 | £13.57 |
| 25 - 45 | £2.578 | £12.89 |
| 50 - 120 | £2.32 | £11.60 |
| 125 - 245 | £2.088 | £10.44 |
| 250 + | £1.982 | £9.91 |
*price indicative
- RS Stock No.:
- 663-2622
- Mfr. Part No.:
- SN74LS90N
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Counter | |
| Package Type | PDIP | |
| Logic Function | Divider, Counter | |
| Number of Stages | 4 | |
| Logic Family | LS | |
| Mount Type | Through Hole | |
| Counter Type | Decade | |
| Number of Elements | 1 | |
| Pin Count | 14 | |
| Minimum Supply Voltage | 4.75V | |
| Counter IC Clock Frequency | 32 MHz, 16 MHz | |
| Maximum Supply Voltage | 5.25V | |
| Series | SN74LS90 | |
| Standards/Approvals | RoHS | |
| Length | 19.69mm | |
| Width | 6.6 mm | |
| Preset Type | Asynchronous | |
| Height | 4.57mm | |
| Minimum Operating Temperature | 0°C | |
| Automotive Standard | No | |
| Direction Type | Uni-Directional | |
| Reset Type | Asynchronous | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Counter | ||
Package Type PDIP | ||
Logic Function Divider, Counter | ||
Number of Stages 4 | ||
Logic Family LS | ||
Mount Type Through Hole | ||
Counter Type Decade | ||
Number of Elements 1 | ||
Pin Count 14 | ||
Minimum Supply Voltage 4.75V | ||
Counter IC Clock Frequency 32 MHz, 16 MHz | ||
Maximum Supply Voltage 5.25V | ||
Series SN74LS90 | ||
Standards/Approvals RoHS | ||
Length 19.69mm | ||
Width 6.6 mm | ||
Preset Type Asynchronous | ||
Height 4.57mm | ||
Minimum Operating Temperature 0°C | ||
Automotive Standard No | ||
Direction Type Uni-Directional | ||
Reset Type Asynchronous | ||
Maximum Operating Temperature 70°C | ||
74LS Family Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters and Shift Registers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
74LS Family
