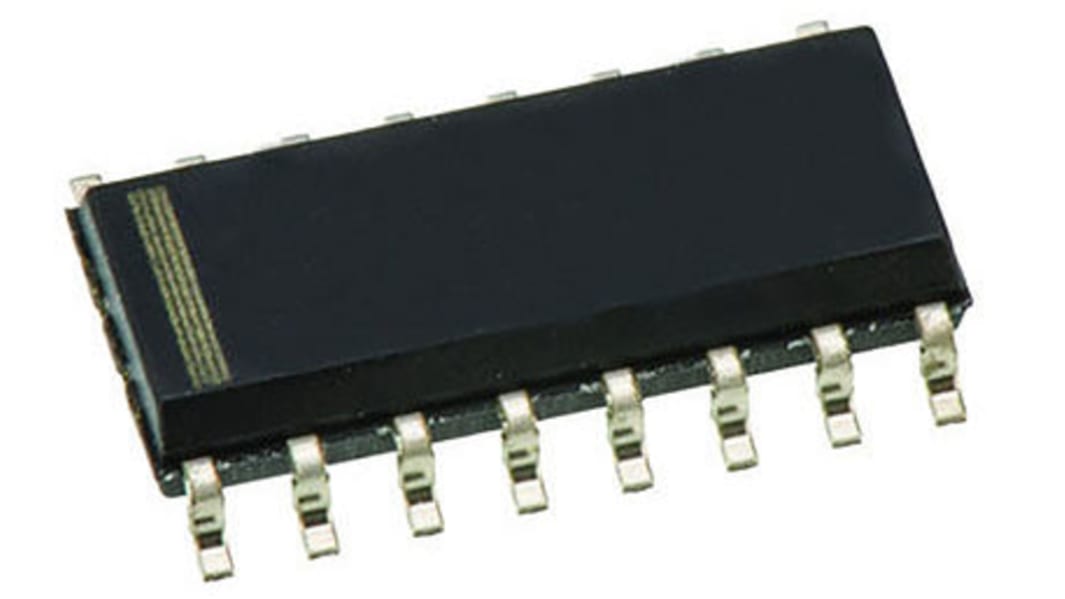

Nexperia 74HC193D,652 4-stage Surface Mount Binary Counter HC, 16-Pin SOIC
- RS Stock No.:
- 436-7486
- Mfr. Part No.:
- 74HC193D,652
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 tube of 50 units)*
£35.80
(exc. VAT)
£42.95
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 100 unit(s), ready to ship
Units | Per unit | Per Tube* |
---|---|---|
50 - 200 | £0.716 | £35.80 |
250 - 950 | £0.454 | £22.70 |
1000 - 2450 | £0.371 | £18.55 |
2500 + | £0.358 | £17.90 |
*price indicative
- RS Stock No.:
- 436-7486
- Mfr. Part No.:
- 74HC193D,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Package Type | SOIC | |
Logic Function | Counter | |
Number of Stages | 4 | |
Logic Family | HC | |
Mounting Type | Surface Mount | |
Counter Type | Binary | |
Operation Mode | Down Counter, Up Counter | |
Number of Elements | 1 | |
Pin Count | 16 | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Operating Supply Voltage | 6 V | |
Dimensions | 10 x 4 x 1.45mm | |
Maximum Operating Temperature | 125 °C | |
Direction Type | Bi-Directional | |
Preset Type | Synchronous | |
Triggering Type | Positive Edge | |
Minimum Operating Temperature | -40 °C | |
Reset Type | Asynchronous | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Package Type SOIC | ||
Logic Function Counter | ||
Number of Stages 4 | ||
Logic Family HC | ||
Mounting Type Surface Mount | ||
Counter Type Binary | ||
Operation Mode Down Counter, Up Counter | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 10 x 4 x 1.45mm | ||
Maximum Operating Temperature 125 °C | ||
Direction Type Bi-Directional | ||
Preset Type Synchronous | ||
Triggering Type Positive Edge | ||
Minimum Operating Temperature -40 °C | ||
Reset Type Asynchronous | ||
- COO (Country of Origin):
- TH
74HC Family Counters & Shift Registers, Nexperia
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
