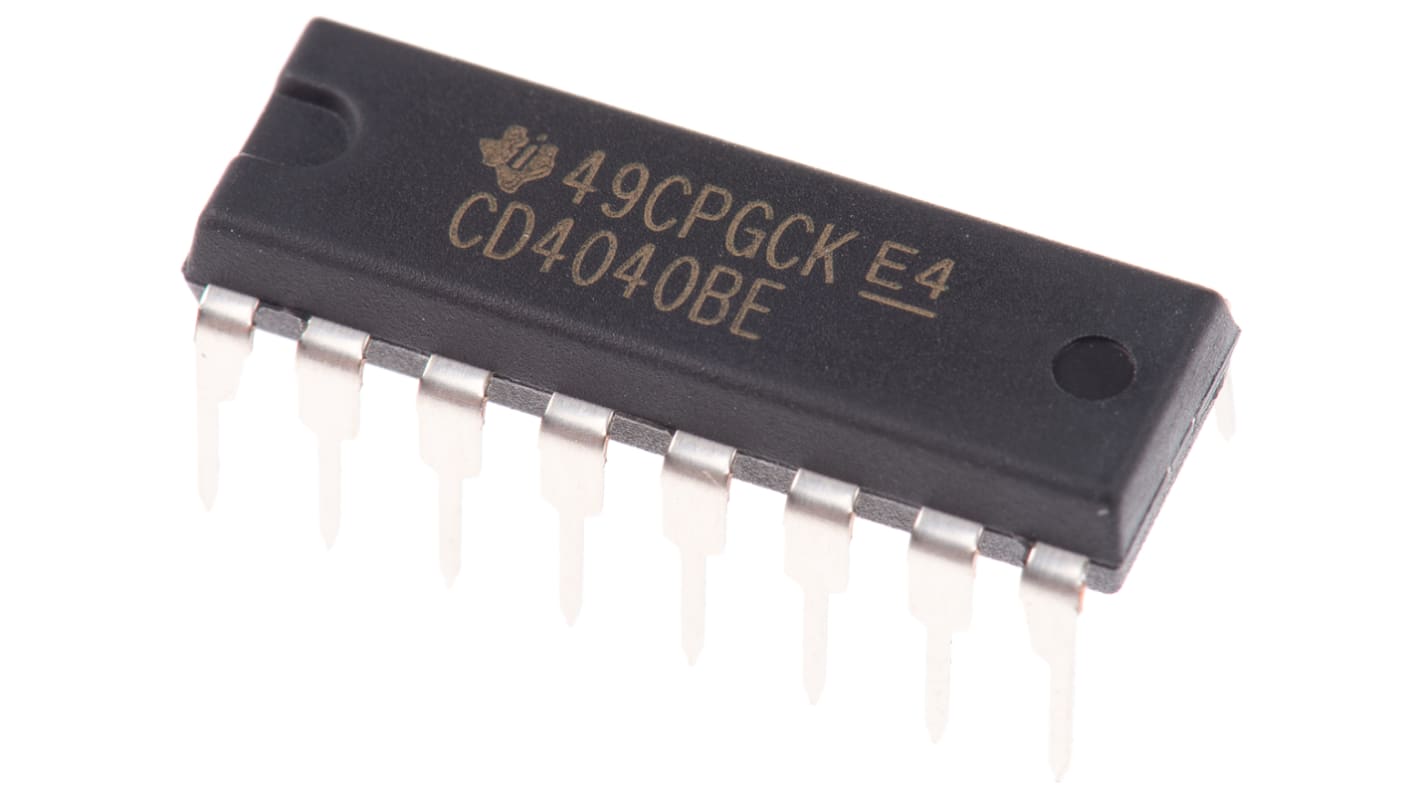

Texas Instruments CD4040BE 12 Through Hole Binary Counter 4000 16 PDIP
- RS Stock No.:
- 527-445
- Mfr. Part No.:
- CD4040BE
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 tube of 25 units)*
£14.525
(exc. VAT)
£17.425
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 175 unit(s) ready to ship from another location
- Plus 1,075 unit(s) shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 100 | £0.581 | £14.53 |
| 125 - 225 | £0.521 | £13.03 |
| 250 - 600 | £0.507 | £12.68 |
| 625 - 1225 | £0.495 | £12.38 |
| 1250 + | £0.482 | £12.05 |
*price indicative
- RS Stock No.:
- 527-445
- Mfr. Part No.:
- CD4040BE
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Package Type | PDIP | |
| Product Type | Counter | |
| Logic Function | Counter, Divider | |
| Number of Stages | 12 | |
| Logic Family | 4000 | |
| Mount Type | Through Hole | |
| Counter Type | Binary | |
| Number of Elements | 1 | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 3V | |
| Counter IC Clock Frequency | 12 MHz (5V), 3.5 MHz (10V), 8 MHz (15V) | |
| Maximum Supply Voltage | 18V | |
| Length | 19.69mm | |
| Standards/Approvals | RoHS | |
| Series | CD4040B | |
| Width | 6.6 mm | |
| Preset Type | Asynchronous | |
| Automotive Standard | No | |
| Direction Type | Uni-Directional | |
| Reset Type | Asynchronous | |
| Minimum Operating Temperature | -55°C | |
| Height | 4.57mm | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Package Type PDIP | ||
Product Type Counter | ||
Logic Function Counter, Divider | ||
Number of Stages 12 | ||
Logic Family 4000 | ||
Mount Type Through Hole | ||
Counter Type Binary | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Supply Voltage 3V | ||
Counter IC Clock Frequency 12 MHz (5V), 3.5 MHz (10V), 8 MHz (15V) | ||
Maximum Supply Voltage 18V | ||
Length 19.69mm | ||
Standards/Approvals RoHS | ||
Series CD4040B | ||
Width 6.6 mm | ||
Preset Type Asynchronous | ||
Automotive Standard No | ||
Direction Type Uni-Directional | ||
Reset Type Asynchronous | ||
Minimum Operating Temperature -55°C | ||
Height 4.57mm | ||
Maximum Operating Temperature 125°C | ||
4000 Series Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters & Shift Registers from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
