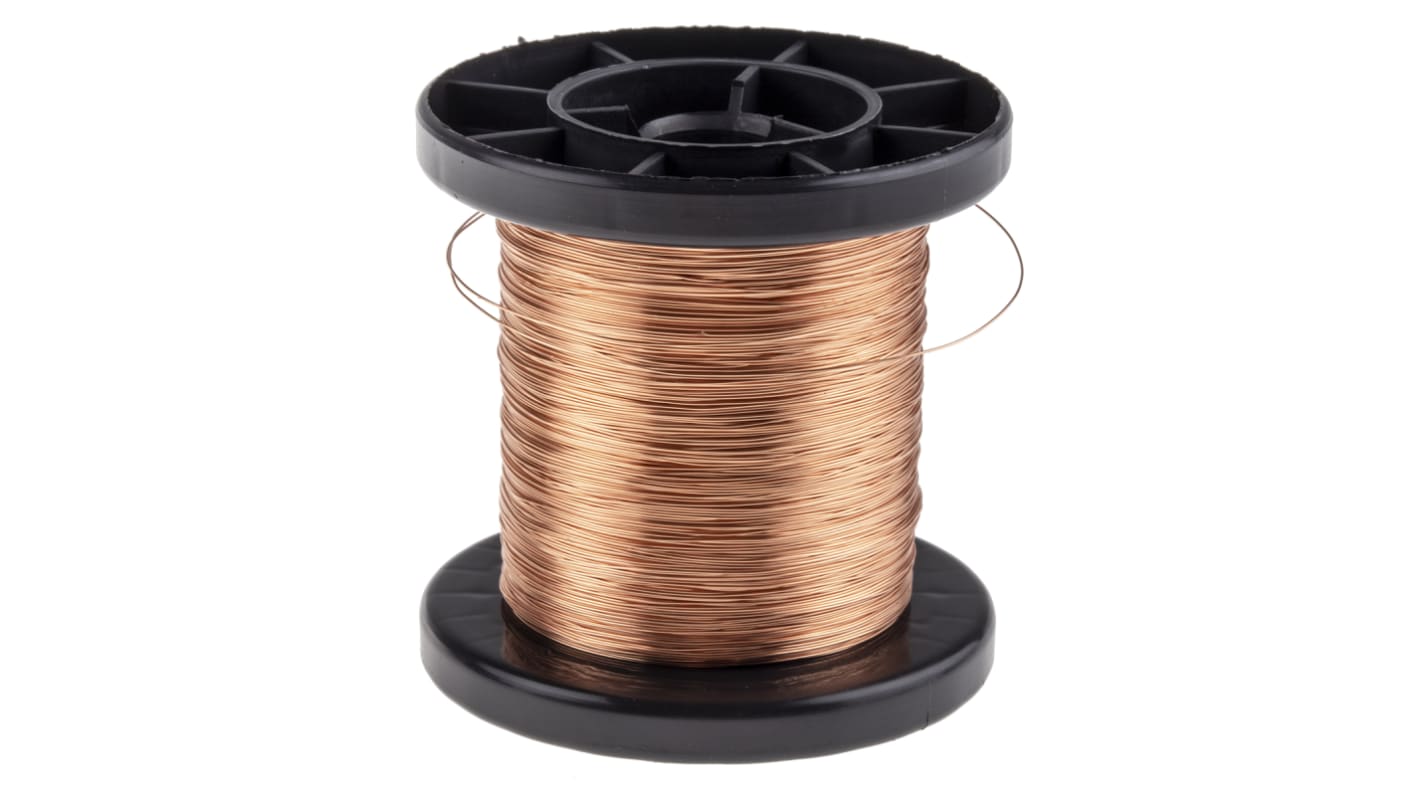

Block 0.22mm Enamelled Copper Wire, 31 AWG 215m Reel

View all Copper Wire
Bulk discount available

Subtotal (1 unit)*

£8.13

(exc. VAT)

£9.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 43 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£8.13
5 +£7.33

*price indicative

RS Stock No.:
779-0690
Mfr. Part No.:
CUL 100/0,22
Brand:
Block
Find similar products by selecting one or more attributes.
Select all

Brand

Block

Cross Sectional Area

0.04 mm²

American Wire Gauge

31 AWG

Core Strands

1/0.22 mm

Insulation Material

PUR

Outer Diameter

0.22mm

Length

215m

Finish

Enamelled

Maximum Operating Temperature

+155°C

Shield Type

Unshielded

Series

CUL100

Cable Type

Single Core

Operating Temperature Range

+155 °C

COO (Country of Origin):
DE

Block Enamelled Copper Wire


From Block, a range of enamelled copper wire supplied on plastic spools. The single strand copper wire features a thin covering of enamel which acts as great insulation ensuring good chemical and thermal resistance. The enamel coating also prevents shorting. Enamelled copper wire or magnet wire is particularly useful for the production of tight coils. Block insulated copper wire is available in various diameters, AWG (American Wire Gauge) sizes and current ratings.

Features and Benefits


• Excellent insulation properties
• Copper possesses good chemical and corrosion protection
• Long term thermal resistance
• Solderable

Applications


Enamelled single strand copper conductors are utilised in a wide range of electronic manufacturing. The most common are

• Motor coil production
• Transformer winding
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers
