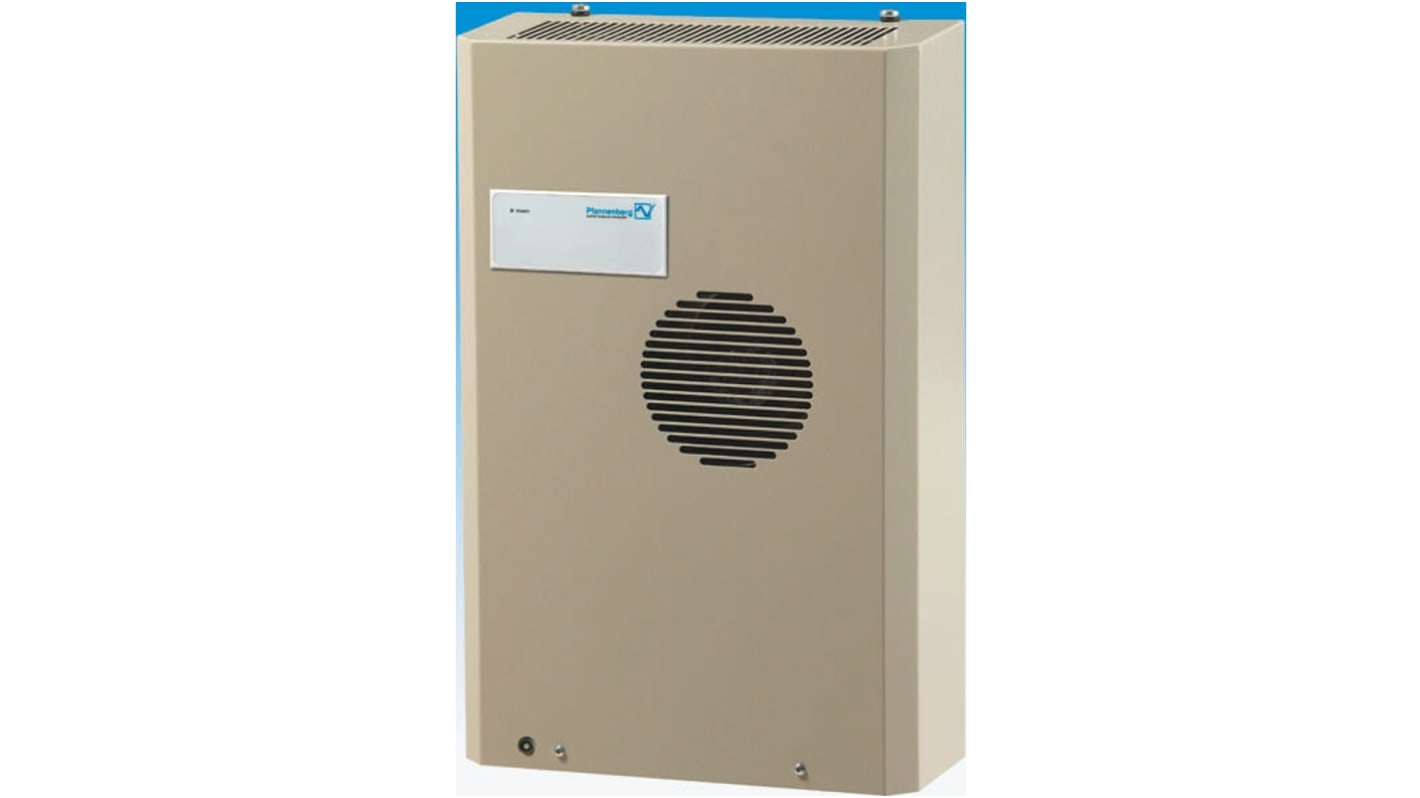

Pfannenberg DTS9041 Series Enclosure Cooling Unit, 870W, 570 m³/h 230V ac 604 mm 380mm 231 mm
- RS Stock No.:
- 513-4401
- Mfr. Part No.:
- DTS9041 13249041000
- Brand:
- Pfannenberg
Stock information currently inaccessible
- RS Stock No.:
- 513-4401
- Mfr. Part No.:
- DTS9041 13249041000
- Brand:
- Pfannenberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pfannenberg | |
| Maximum Cooling Power | 870W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 570m³/h | |
| Noise Level | 37dB | |
| Mount Type | Wall | |
| Input Power | 870W | |
| IP Rating | IP54 | |
| Maximum Supply Voltage | 230V ac | |
| Maximum Temperature Setting | 45°C | |
| Min Temperature Setting | 25°C | |
| Height | 604mm | |
| Standards/Approvals | No | |
| Series | DTS9041 | |
| Depth | 231mm | |
| Width | 380mm | |
| Cooler Type | Air Conditioning Unit | |
| Select all | ||
|---|---|---|
Brand Pfannenberg | ||
Maximum Cooling Power 870W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 570m³/h | ||
Noise Level 37dB | ||
Mount Type Wall | ||
Input Power 870W | ||
IP Rating IP54 | ||
Maximum Supply Voltage 230V ac | ||
Maximum Temperature Setting 45°C | ||
Min Temperature Setting 25°C | ||
Height 604mm | ||
Standards/Approvals No | ||
Series DTS9041 | ||
Depth 231mm | ||
Width 380mm | ||
Cooler Type Air Conditioning Unit | ||
- COO (Country of Origin):
- DE
870W Air Conditioning Unit
IP54
Suitable for door widths of 400mm or more
Optimum long air passage in internal circuit
Fault and door contacts as standard electronics
Extremely good air circulation inside enclosure
Factory set thermostat setting: +35°C (+95°F)
Ambient air temperature: +15°C (59°F) to +55°C (131°F)
Temperature inside enclosure: +25°C (77°) to +50°C (122°F)
