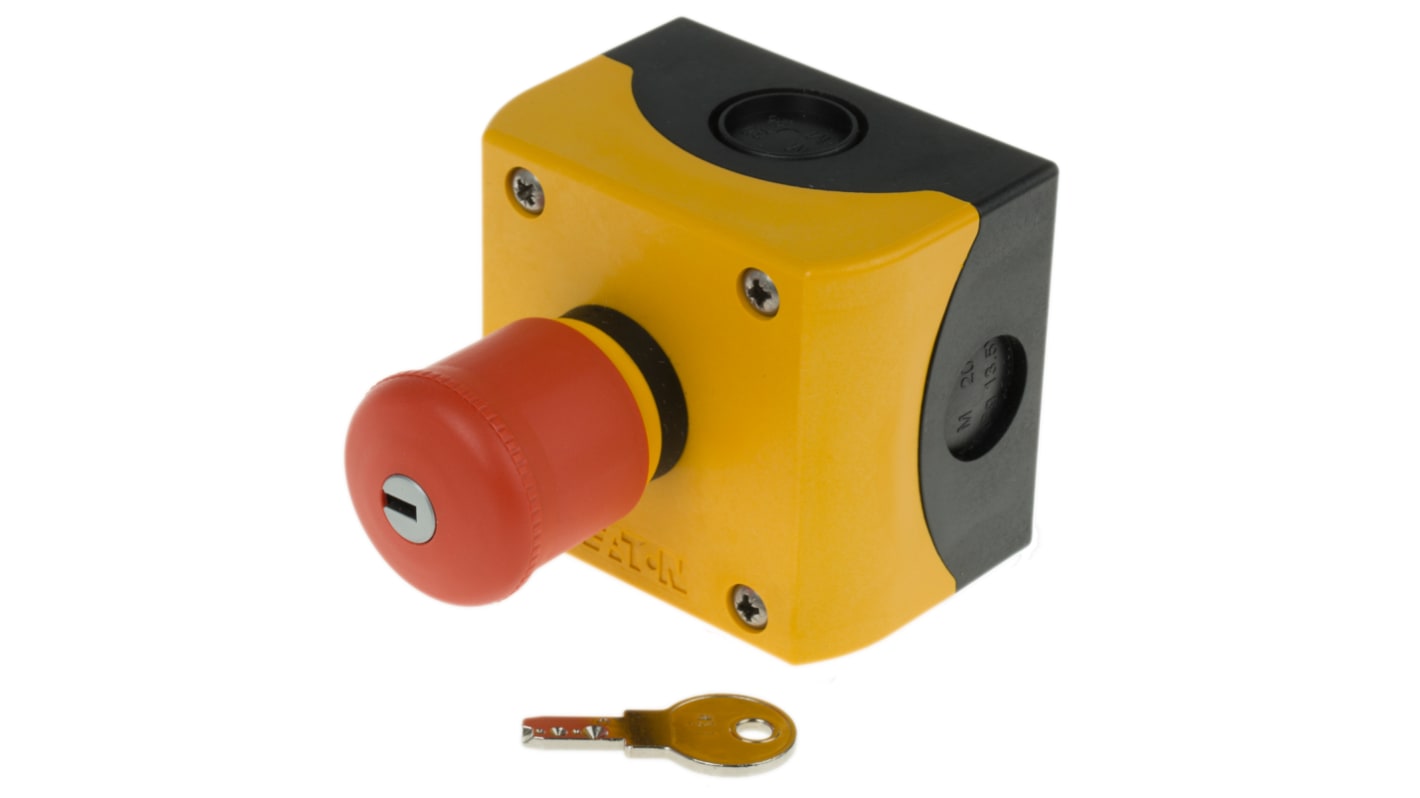

Name: Eaton Key Release Control Station Switch - SPDT, Plastic, Red, IP67, IP69K
Brand: Eaton
SKU: 399-3113
Price: 117.73 GBP
Availability: InStock

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Series	RMQ Titan M22
	Push Button Colour	Red
	Push Button Material	Plastic
	Enclosure Colour	Black, Yellow
	Contact Configuration	SPDT
	Enclosure Material	Plastic
	IP Rating	IP67, IP69K
	Push Button Actuation	Key Release
	Length	72mm
	Width	80mm
	Depth	104mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Maximum AC Voltage	500V ac

	Select all
	Brand Eaton
	Series RMQ Titan M22
	Push Button Colour Red
	Push Button Material Plastic
	Enclosure Colour Black, Yellow
	Contact Configuration SPDT
	Enclosure Material Plastic
	IP Rating IP67, IP69K
	Push Button Actuation Key Release
	Length 72mm
	Width 80mm
	Depth 104mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Maximum AC Voltage 500V ac

COO (Country of Origin):: DE

Eaton Control Station Switch, Plastic Bezel, Surface-Mounted - M22 Series - 216523 M22-PVS/KC11/IY

Be ready to bring your operation to a halt fast with this control station switch from Eaton. It has a standard 22.5mm cutout diameter, so you can easily install it in your control panel and use it as an emergency stop mechanism. A key-release design prevents unauthorised restarts for added peace of mind. You'll typically find units like this in factories, engineering workshops and chemical processing plants.

Features & Benefits

• Operating temperature range between -25°C and +70°C, suitable for extreme conditions
• Ergonomic mushroom-head button is easy to use
• Mechanical shock resistance of 50g stands up to high-vibration environments
• Accepts a supply voltage of 24 to 220V DC or 115V to 500V AC for broad compatibility
• Dimensions of 72 (L) x 80 (W) x 104mm (D) strike a good balance between compactness and accessibility

Is this control station switch waterproof?

Yes. It has an IP69K rating, so it's entirely protected from high-pressure, high-temperature jets of water and immersion. It's also dust-tight, ideal for workspaces with airborne debris and particles.

How durable is the switch?

A mechanical lifespan of over 100,000 operations means you can rely on it to last.

Note

Eaton formerly known as Moeller

Approvals

UL; CSA; IEC/EN60947
