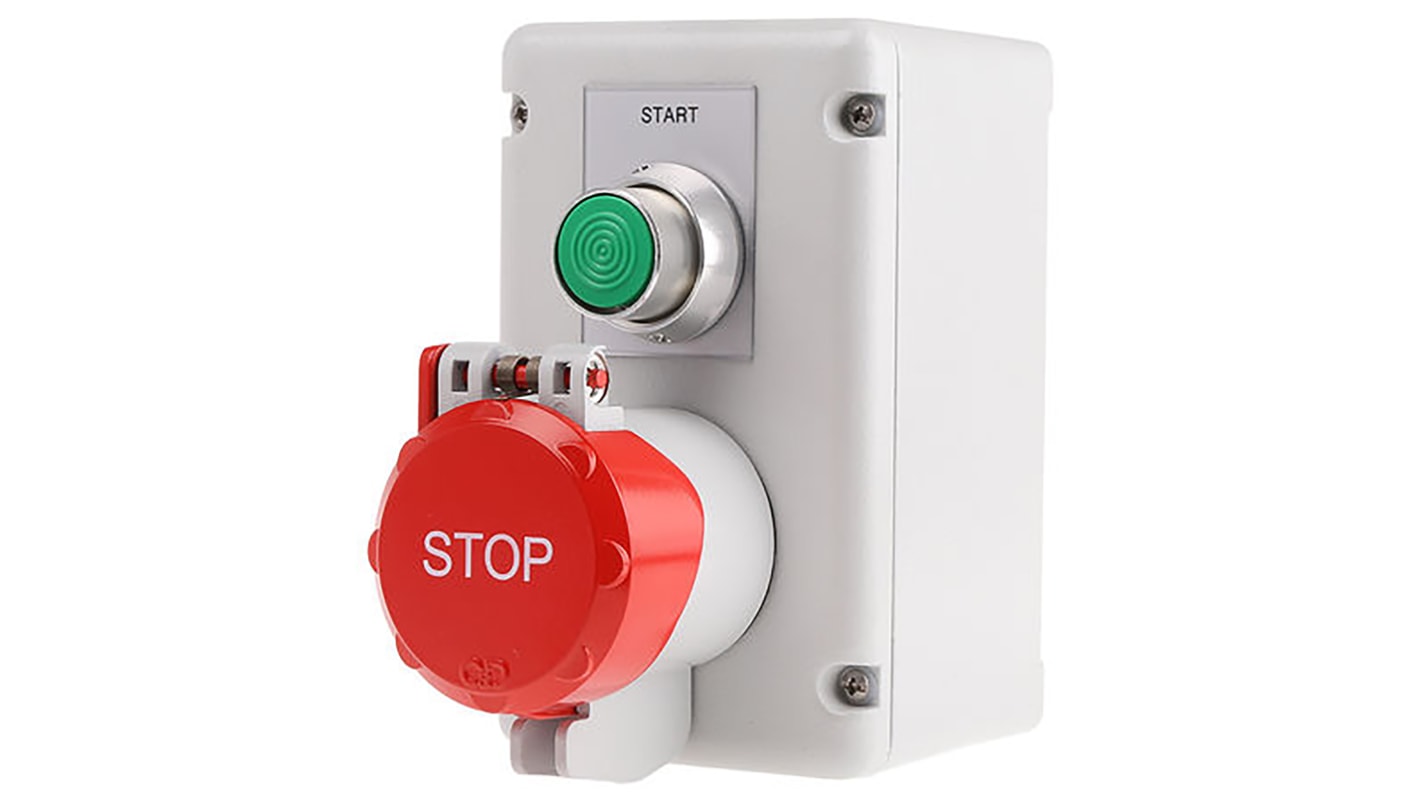

Craig & Derricott Momentary (Start), Pull to Reset (Stop) Push Button Control Station - SPDT, Die Cast Aluminium,
- RS Stock No.:
- 310-3966
- Mfr. Part No.:
- SSTH/GS/P/F3/MG/CO
- Brand:
- Craig & Derricott
Subtotal (1 unit)*
£299.19
(exc. VAT)
£359.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £299.19 |
*price indicative
- RS Stock No.:
- 310-3966
- Mfr. Part No.:
- SSTH/GS/P/F3/MG/CO
- Brand:
- Craig & Derricott
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Craig & Derricott | |
Series | i-push | |
Push Button Colour | Green, Red | |
Push Button Material | Plastic | |
Enclosure Colour | Grey | |
Contact Configuration | SPDT | |
Enclosure Material | Die Cast Aluminium | |
IP Rating | IP65 | |
Cutout Diameter | 22mm | |
Push Button Actuation | Momentary (Start), Pull to Reset (Stop) | |
Length | 167mm | |
Width | 100mm | |
Depth | 155mm | |
Maximum AC Voltage | 690V | |
Terminal Type | Screw | |
Maximum Current | 16A | |
Select all | ||
---|---|---|
Brand Craig & Derricott | ||
Series i-push | ||
Push Button Colour Green, Red | ||
Push Button Material Plastic | ||
Enclosure Colour Grey | ||
Contact Configuration SPDT | ||
Enclosure Material Die Cast Aluminium | ||
IP Rating IP65 | ||
Cutout Diameter 22mm | ||
Push Button Actuation Momentary (Start), Pull to Reset (Stop) | ||
Length 167mm | ||
Width 100mm | ||
Depth 155mm | ||
Maximum AC Voltage 690V | ||
Terminal Type Screw | ||
Maximum Current 16A | ||
- COO (Country of Origin):
- GB
Aluminium Enclosed Pushbutton Stations
Pull to reset push buttons all with coverable flaps to prevent inadvertent reset
Heavy duty die-cast aluminium enclosure
Suitable for indoor or outdoor applications
Stock no. 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted
Ingress protection to IP65
1 x M20 tapped conduit entry
Screw terminal, block type contacts cable size 2x2.5mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5
Heavy duty die-cast aluminium enclosure
Suitable for indoor or outdoor applications
Stock no. 310-3972 features a lockable flap which is padlockable and has to be unlocked to reset push button, padlock holes 2x14mm allow several padlocks to be fitted
Ingress protection to IP65
1 x M20 tapped conduit entry
Screw terminal, block type contacts cable size 2x2.5mm² maximum
Standards: BS EN 60947-5-1, BS EN 60947-5-5
Note
Allow for an extra 75mm depth for the swing of the flap.

Approvals
BSEN418; BSEN292
