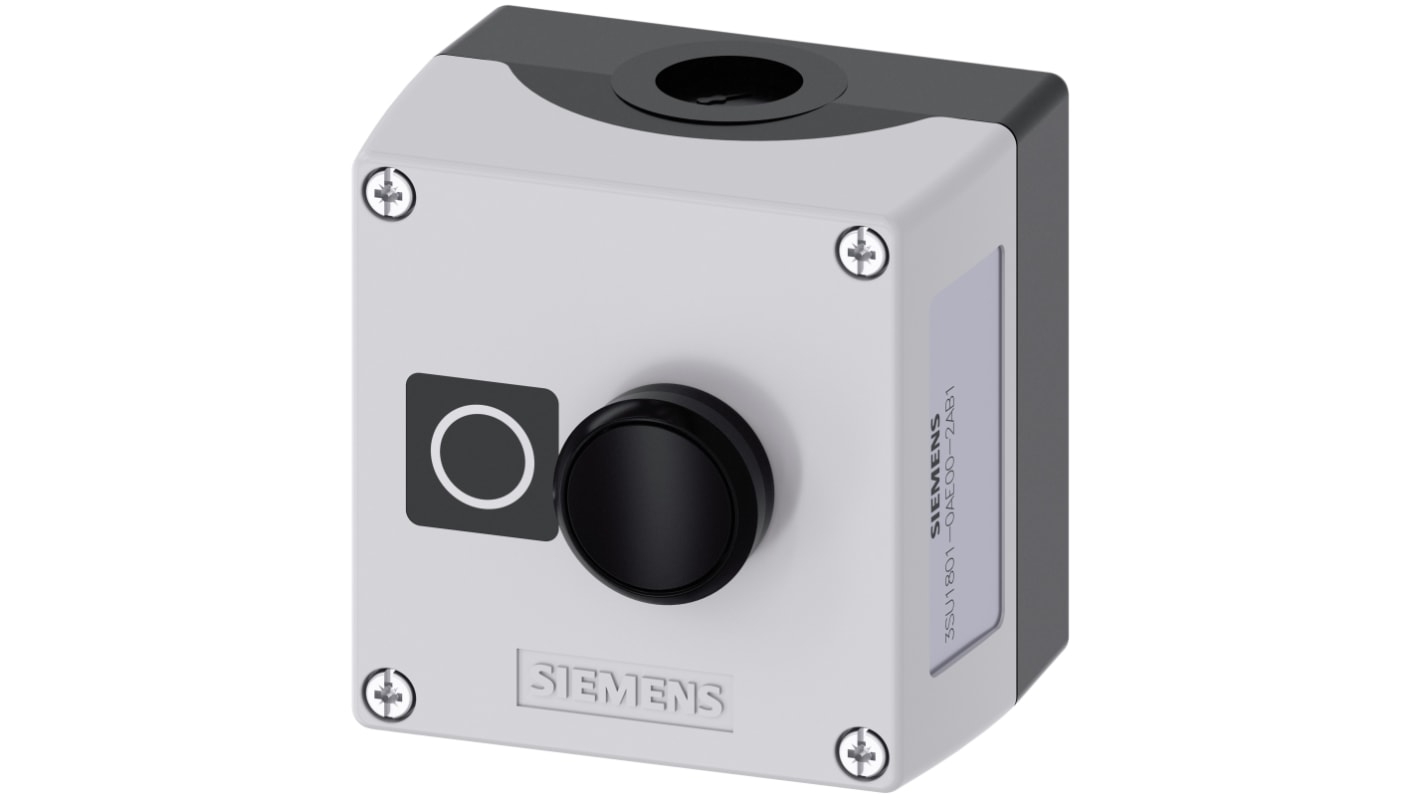

Siemens Push Button Control Station - SPST, Plastic, 1 Cutouts, Black, O, IP66, IP67, IP69
- RS Stock No.:
- 180-9515
- Mfr. Part No.:
- 3SU1801-0AE00-2AB1
- Brand:
- Siemens
Subtotal (1 unit)*
£32.05
(exc. VAT)
£38.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.05 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 180-9515
- Mfr. Part No.:
- 3SU1801-0AE00-2AB1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | SIRIUS ACT 3SU18 | |
| Number of Cutouts | 1 | |
| Push Button Marking | O | |
| Push Button Colour | Black | |
| Push Button Material | Plastic | |
| Enclosure Colour | Grey | |
| Contact Configuration | SPST | |
| Enclosure Material | Plastic | |
| IP Rating | IP66, IP67, IP69 | |
| Cutout Diameter | 22mm | |
| Length | 85mm | |
| Width | 75mm | |
| Depth | 85mm | |
| Better World Product | Yes | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +70°C | |
| Maximum Current | 10A | |
| Maximum AC Voltage | 500V | |
| Maximum DC Voltage | 500V | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Series SIRIUS ACT 3SU18 | ||
Number of Cutouts 1 | ||
Push Button Marking O | ||
Push Button Colour Black | ||
Push Button Material Plastic | ||
Enclosure Colour Grey | ||
Contact Configuration SPST | ||
Enclosure Material Plastic | ||
IP Rating IP66, IP67, IP69 | ||
Cutout Diameter 22mm | ||
Length 85mm | ||
Width 75mm | ||
Depth 85mm | ||
Better World Product Yes | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature +70°C | ||
Maximum Current 10A | ||
Maximum AC Voltage 500V | ||
Maximum DC Voltage 500V | ||
- COO (Country of Origin):
- DE
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 1 control point plastic, Recess for label, A=pushbutton black label: O 1 NC, screw terminal, Floor mounting
