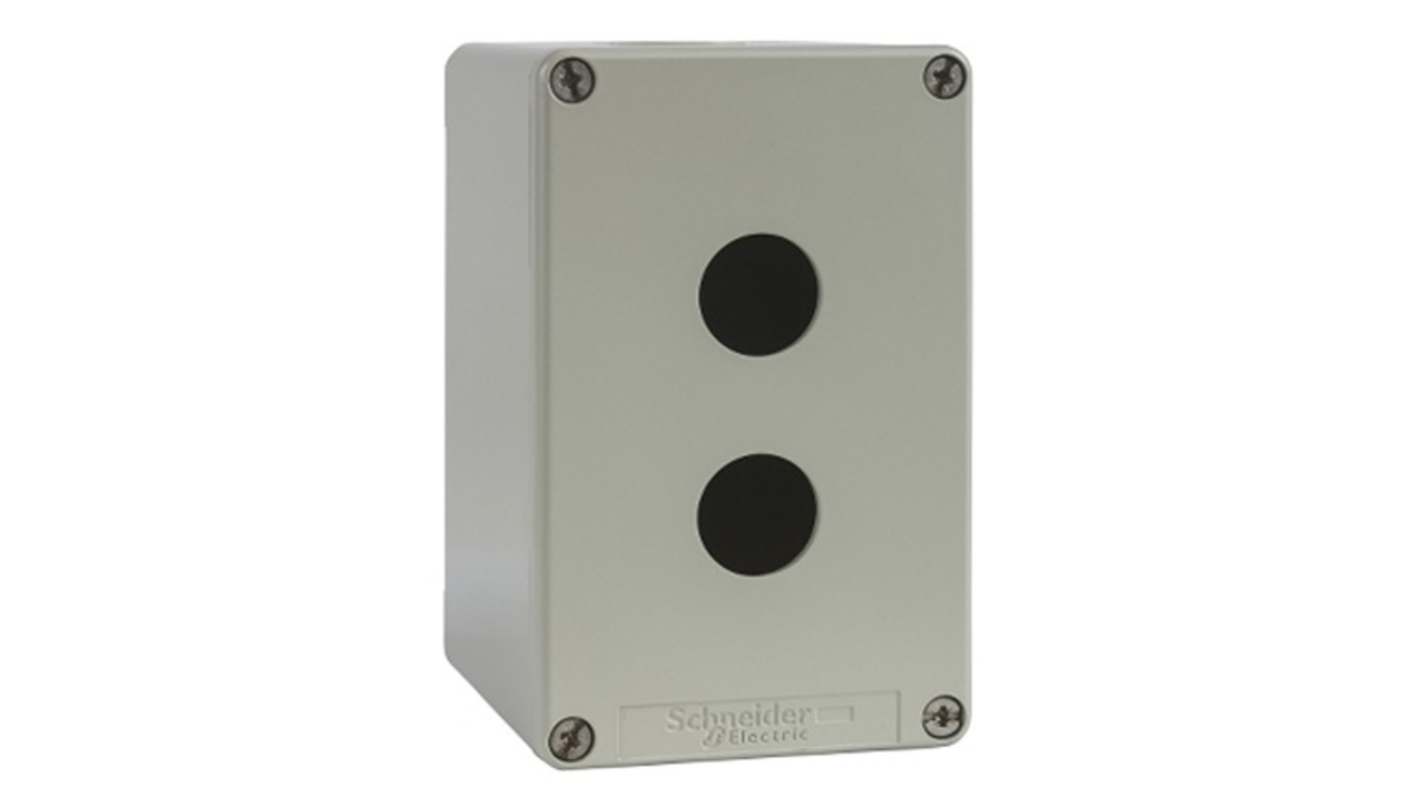

Schneider Electric Grey Die Cast Zinc Harmony XAP Push Button Control Station Enclosure - 2 Hole 22 mm Diameter
- RS Stock No.:
- 654-193
- Mfr. Part No.:
- XAPG29502
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£86.08
(exc. VAT)
£103.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.08 |
*price indicative
- RS Stock No.:
- 654-193
- Mfr. Part No.:
- XAPG29502
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Push Button Control Station Enclosure | |
| Series | Harmony XAP | |
| Cutout Diameter | 22mm | |
| Number of Cutouts | 2 | |
| Enclosure Colour | Grey | |
| Enclosure Material | Die Cast Zinc | |
| IP Rating | IP65, IP67 | |
| Width | 8mm | |
| Depth | 74.5mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | IEC 60529, RoHS | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Push Button Control Station Enclosure | ||
Series Harmony XAP | ||
Cutout Diameter 22mm | ||
Number of Cutouts 2 | ||
Enclosure Colour Grey | ||
Enclosure Material Die Cast Zinc | ||
IP Rating IP65, IP67 | ||
Width 8mm | ||
Depth 74.5mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals IEC 60529, RoHS | ||
The Schneider Electric Grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents.
Designed for machines builders and services
Protection index is IP65
Wide availability throughout an extensive distribution network
