Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 0.78 mm², ECO, Screened, 30m, Grey PUR Sheath, 18 AWG

RS Stock No.:: 890-4622
Mfr. Part No.:: 80134 SL005
Brand:: Alpha Wire

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 0.78 mm², ECO, Screened, 30m, Grey PUR Sheath, 18 AWG

Subtotal (1 reel of 30 metres)*

£371.43

(exc. VAT)

£445.72

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 19 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£371.43	£12.381

*price indicative

Alternatives

This product is not currently available. Here are our alternative recommendations.

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 0.33 mm², ECO, Unscreened, 30m, Grey PUR Sheath, 22 AWG

RS Stock No.: 890-4528

1 Reel of 30 Metre(s)

£329.58

(exc. VAT)

£395.50

(inc. VAT)

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 0.78 mm², ECO, Unscreened, 30m, Grey PUR Sheath, 18 AWG

RS Stock No.: 890-4556

1 Reel of 30 Metre(s)

£257.02

(exc. VAT)

£308.42

(inc. VAT)

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 2 mm², ECO, Unscreened, 30m, Grey PUR Sheath, 14 AWG

RS Stock No.: 890-4593

1 Reel of 30 Metre(s)

£369.99

(exc. VAT)

£443.99

(inc. VAT)

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 3.33 mm², ECO, Unscreened, 30m, Grey PUR Sheath, 12 AWG

RS Stock No.: 890-4613

1 Reel of 30 Metre(s)

£576.93

(exc. VAT)

£692.32

(inc. VAT)

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 1.33 mm², ECO, Screened, 30m, Grey PUR Sheath, 16 AWG

RS Stock No.: 890-4632

1 Reel of 30 Metre(s)

£479.57

(exc. VAT)

£575.48

(inc. VAT)

Alpha Wire EcoFlex PUR Multicore Industrial Cable, 4 Cores, 2 mm², Screened, 30m, Grey Polyurethane PUR Sheath, 14 AWG

RS Stock No.: 890-4648

1 Reel of 30 Metre(s)

£195.09

(exc. VAT)

£234.11

(inc. VAT)

Alpha Wire Ecogen Ecoflex PUR Control Cable, 4 Cores, 3.33 mm², ECO, Screened, 30m, Grey PUR Sheath, 12 AWG

RS Stock No.: 890-4650

1 Reel of 30 Metre(s)

£884.28

(exc. VAT)

£1,061.14

(inc. VAT)

Alpha Wire EcoFlex PUR Multicore Industrial Cable, 4 Cores, 5.27 mm², Screened, 30m, Grey Polyurethane PUR Sheath, 10

RS Stock No.: 890-4654

1 Reel of 30 Metre(s)

£641.31

(exc. VAT)

£769.57

(inc. VAT)

RS Stock No.:: 890-4622
Mfr. Part No.:: 80134 SL005
Brand:: Alpha Wire

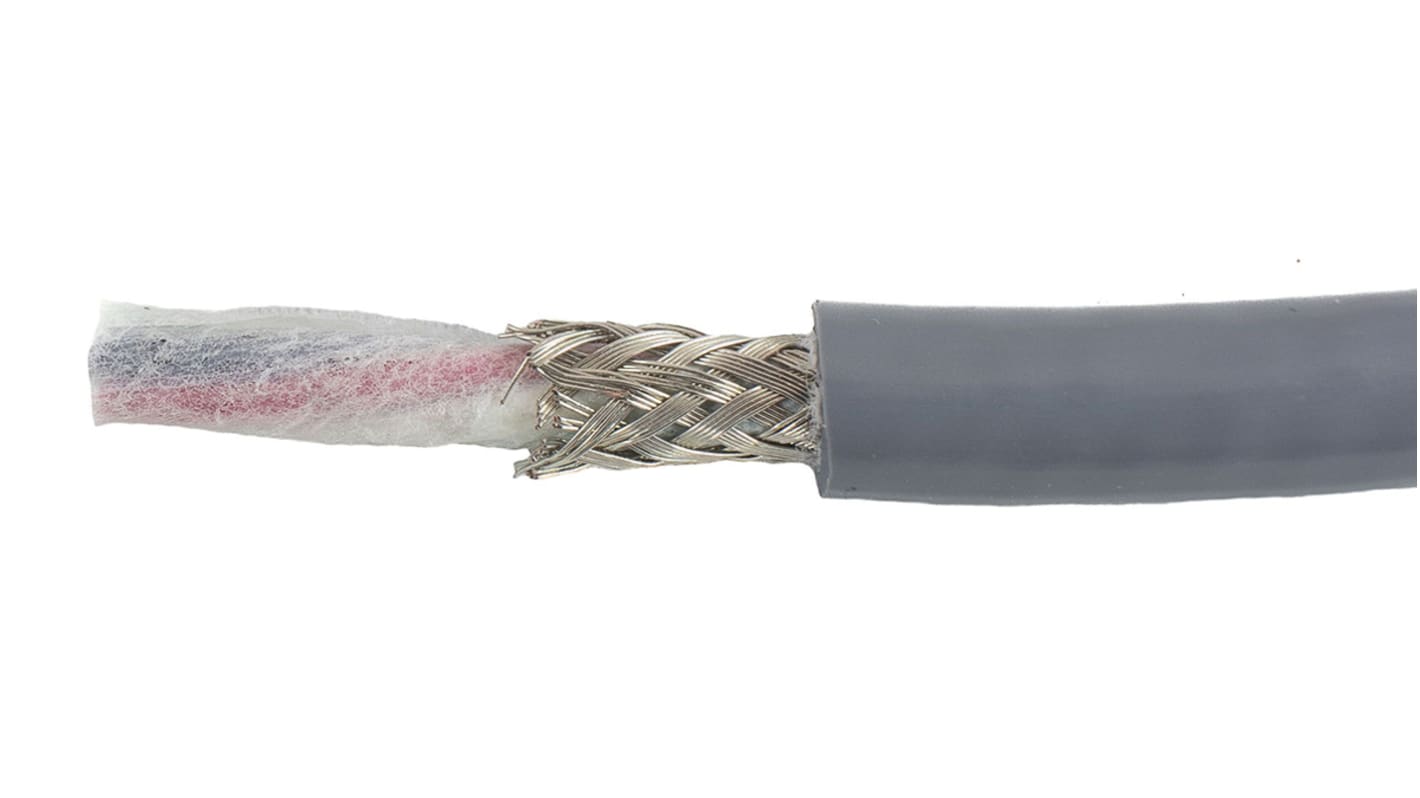

Alpha Wire Ecoflex PUR Cable - Braided Shielding

The EcoFlex PUR range from Alpha Wire is an abrasion, UV and oil resistant cable due to its tough polyurethane jacket and mPPE insulation construction. The cable can handle extreme temperatures, contains zero halogens, plus it is smaller and lighter than its PVC equivalent. This multicore cable comes with braided shielding.

What is PUR and mPPE?

Cables sheathed in polyurethane are more flexible and can perform to higher standards than PVC making them a great choice for use in machinery and robotic applications. They are also abrasion, oil and flame resistant, plus free of halogen.
mPPE is a modified polyphenylene ether thermoplastic. Multicore cables containing mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications. mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Is this cable environmentally friendly?

Unlike PVC, cables containing PUR and mPPE are halogen-free, contain no phthalates and are 100% recyclable and deemed to be environmentally friendly.

What is halogen-free?

If a cable is not made from materials that contain salt-forming fluorine, bromine, iodine or chlorine then it is defined as halogen-free.

Features and Benefits

Contain no halogen
Environmentally friendly
Able to handle extreme temperatures as low as -50°C
Smaller, lighter and lower outgassing than PVC cable
Excellent abrasion resistance
Mechanically strong
Finely stranded tinned copper conductors
Black and numbered conductors, with one green/yellow
mPPE insulation
Tinned copper braid with 85% coverage
Choice of conductor sizes

Product Application Information

Machine tools
Automotive
Robotics
Medical
Mining
Industrial machinery
Construction machinery
Agricultural equipment
Assembly and production lines

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Ecogen Ecoflex PUR
	Number of Cores	4
	Cross Sectional Area	0.78 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Tinned Copper
	Sheath Material	PUR
	Sheath Colour	Grey
	Control Cable Type	ECO
	Screen Type	Braid
	Screened/Unscreened	Screened
	Length	30m
	Outer Diameter	6.32mm
	Minimum Bend Radius	4 x Diameter
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Maximum Operating Temperature	+90°C
	Fire Behaviour	Halogen Free
	Insulation Material	MPPE
	Minimum Operating Temperature	-50°C
	Drain Wire	No
	Core Strands	41/0.16 mm
	Conductor Resistance	7.1 Ω/1000ft

	Select all
	Brand Alpha Wire
	Series Ecogen Ecoflex PUR
	Number of Cores 4
	Cross Sectional Area 0.78 mm²
	American Wire Gauge 18 AWG
	Conductor Material Tinned Copper
	Sheath Material PUR
	Sheath Colour Grey
	Control Cable Type ECO
	Screen Type Braid
	Screened/Unscreened Screened
	Length 30m
	Outer Diameter 6.32mm
	Minimum Bend Radius 4 x Diameter
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Maximum Operating Temperature +90°C
	Fire Behaviour Halogen Free
	Insulation Material MPPE
	Minimum Operating Temperature -50°C
	Drain Wire No
	Core Strands 41/0.16 mm
	Conductor Resistance 7.1 Ω/1000ft
