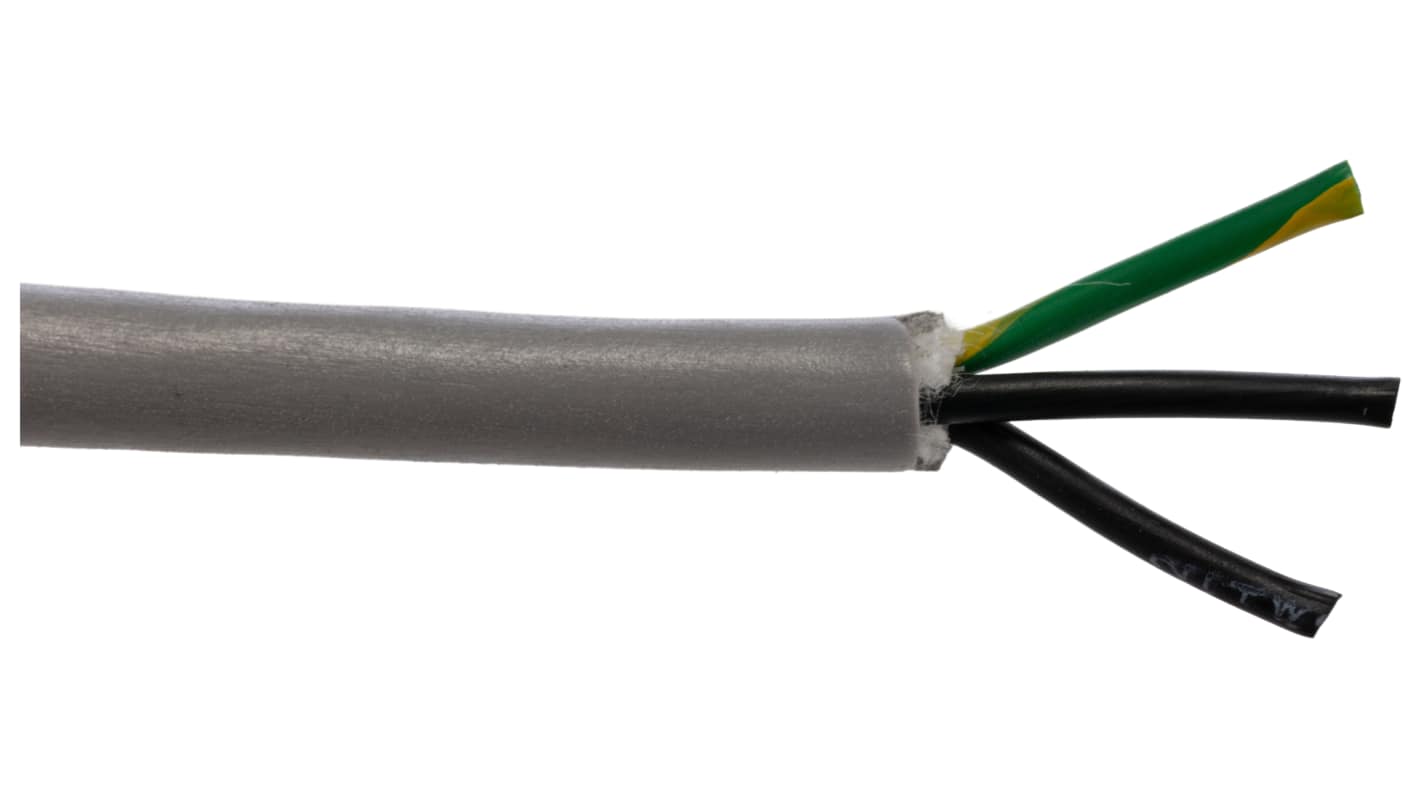

Alpha Wire Ecogen Ecoflex PUR Control Cable, 3 Cores, 0.5 mm², ECO, Unscreened, 30m, Grey PUR Sheath, 20 AWG
- RS Stock No.:
- 890-4525
- Mfr. Part No.:
- 80021 SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£321.38
(exc. VAT)
£385.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £321.38 | £10.713 |
*price indicative
- RS Stock No.:
- 890-4525
- Mfr. Part No.:
- 80021 SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Ecogen Ecoflex PUR | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.5 mm² | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PUR | |
| Control Cable Type | ECO | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Screen Type | Unscreened | |
| Minimum Bend Radius | 4 x Diameter | |
| Length | 30m | |
| Outer Diameter | 4.75mm | |
| Voltage Rating | 600 V | |
| Standards Met | CE, CSA, UL | |
| Maximum Operating Temperature | +80 (Dynamic) °C, +90 (Static) °C | |
| Fire Behaviour | Halogen Free | |
| Conductor Resistance | 11.1 Ω/1000ft | |
| Core Strands | 26/0.16 mm | |
| Minimum Operating Temperature | -40 (Dynamic) °C, -50 (Static) °C | |
| Insulation Material | MPPE | |
| Drain Wire | No | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Ecogen Ecoflex PUR | ||
Number of Cores 3 | ||
Cross Sectional Area 0.5 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PUR | ||
Control Cable Type ECO | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Screen Type Unscreened | ||
Minimum Bend Radius 4 x Diameter | ||
Length 30m | ||
Outer Diameter 4.75mm | ||
Voltage Rating 600 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80 (Dynamic) °C, +90 (Static) °C | ||
Fire Behaviour Halogen Free | ||
Conductor Resistance 11.1 Ω/1000ft | ||
Core Strands 26/0.16 mm | ||
Minimum Operating Temperature -40 (Dynamic) °C, -50 (Static) °C | ||
Insulation Material MPPE | ||
Drain Wire No | ||
Belden Ecogen Ecoflex PUR Series Control Cable, 3 Number Of Cores, 0.5mm² Cross Sectional Area - 80021 SL005
This control cable is designed for applications requiring reliable connections and exceptional performance. Constructed with 3 cores and a tinned copper composition, this 600V rated cable is ideal for various demanding environments. The outer jacket is made from halogen-free PUR material, providing resistance to abrasion and chemicals while maintaining flexibility even at low temperatures. With a length of 30m and an outer diameter of 4.75mm, it offers excellent adaptability for intricate installation scenarios.
Features & Benefits
• Unscreened design simplifies installation requirements
• Halogen-free construction ensures environmental safety
• Supports a maximum operating temperature of +80°C
• Flexible at low temperatures enhances usability
• Built from durable tinned copper for improved conductivity
• Rated for 600V, providing reliable power transmission
• Halogen-free construction ensures environmental safety
• Supports a maximum operating temperature of +80°C
• Flexible at low temperatures enhances usability
• Built from durable tinned copper for improved conductivity
• Rated for 600V, providing reliable power transmission
Applications
• Used for automation systems where flexibility is vital
• Utilised in electrical installations needing high-temperature ratings
• Ideal for control in mechanical and electronic sectors
• Suited for situations demanding lightweight and compact cabling
• Utilised in electrical installations needing high-temperature ratings
• Ideal for control in mechanical and electronic sectors
• Suited for situations demanding lightweight and compact cabling
What is the maximum temperature range that this cable can withstand?
The cable can operate within a maximum temperature range of +80°C when used dynamically and up to +90°C in a static state.
How does the construction of this cable benefit its performance in challenging environments?
The durable PUR sheath provides excellent abrasion resistance and flexibility, while the halogen-free composition prevents toxic gas emissions in the event of fire, making it suitable for various critical applications.
Can this cable be used in low-temperature conditions?
Yes, it maintains flexibility in low temperatures down to -40°C during dynamic applications, which allows it to perform reliably in harsh environmental conditions.
What materials are used in the construction of this cable?
The cable features tinned copper conductors, a mPPE insulation layer, and a protective PUR outer jacket, all contributing to its durability and performance.
