RS PRO Control Cable, 4 Cores, Screened, 100m, White PVC Sheath
- RS Stock No.:
- 842-0695
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 152 Metre(s)
£181.47
(exc. VAT)
£217.76
(inc. VAT)
- RS Stock No.:
- 842-0695
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 4 | |
| Conductor Material | Tinned Copper Cladded Aluminium | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | White | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Outer Diameter | 3.9mm | |
| Voltage Rating | 300 V | |
| Standards Met | Euroclass Eca | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Core Strands | 7/0.19 mm | |
| Drain Wire | Yes | |
| Insulation Material | PVC | |
| Conductor Resistance | 177 Ω/km | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 4 | ||
Conductor Material Tinned Copper Cladded Aluminium | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour White | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Outer Diameter 3.9mm | ||
Voltage Rating 300 V | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Core Strands 7/0.19 mm | ||
Drain Wire Yes | ||
Insulation Material PVC | ||
Conductor Resistance 177 Ω/km | ||
- COO (Country of Origin):
- CN

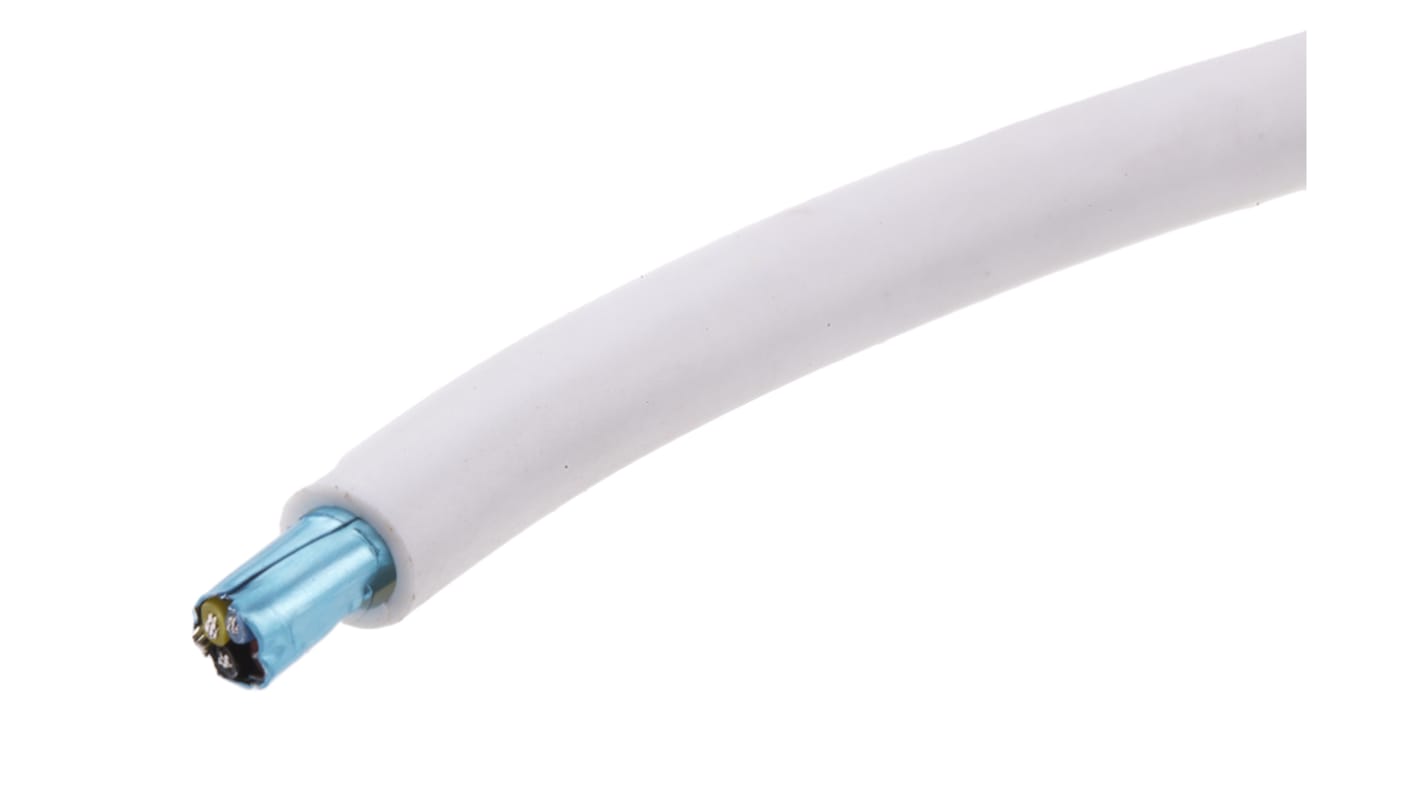

RS PRO Screened Security Cable, 4 Core, PVC Sheath, 100 m
Need new cabling for your burglar alarm? This screened security cable from RS PRO has a polyvinyl chloride (PVC) sheath that protects the inner wiring, helping it to last longer. It's safe to use this cable underground or to embed it into walls.
The cable's tinned copper wires have excellent anti-corrosive properties, which means it won't be affected by environmental factors such as moisture or humidity. This makes it suitable to use outside as you don't have to worry about it being affected by rain. Its PVC sheath is lightweight, making the cable easy to move around and install.
This kind of cable is useful for low-voltage applications. It also comes in handy as a replacement cord for your keyboard. It's compliant with Euroclass Eca standards for copper networking cables, so you can be sure that it will meet your building's fire safety requirements.
The cable's tinned copper wires have excellent anti-corrosive properties, which means it won't be affected by environmental factors such as moisture or humidity. This makes it suitable to use outside as you don't have to worry about it being affected by rain. Its PVC sheath is lightweight, making the cable easy to move around and install.
This kind of cable is useful for low-voltage applications. It also comes in handy as a replacement cord for your keyboard. It's compliant with Euroclass Eca standards for copper networking cables, so you can be sure that it will meet your building's fire safety requirements.
Features and Benefits
• Multicore cable
• Conductor resistance of less than 177 Ω/Km
• Seven core strands of 0.19 mm
• Drain wire
• Screened
• Polyvinyl-chloride (PVC) sheath
• Tinned-copper, cladded-aluminium conductor material
• Polyvinyl-chloride (PVC) insulation material
• Jacket ripcord
• Maximum operating temperature of +80°C
• Minimum operating temperature of -20°C
• Four cores
• Seven strands
• Outer diameter of 3.9 mm
• Reel length of 100 m
• White sheath colour
• Strand size of 0.19 mm
• Euroclass Eca compliant
• Voltage rating of 300 V
• Conductor resistance of less than 177 Ω/Km
• Seven core strands of 0.19 mm
• Drain wire
• Screened
• Polyvinyl-chloride (PVC) sheath
• Tinned-copper, cladded-aluminium conductor material
• Polyvinyl-chloride (PVC) insulation material
• Jacket ripcord
• Maximum operating temperature of +80°C
• Minimum operating temperature of -20°C
• Four cores
• Seven strands
• Outer diameter of 3.9 mm
• Reel length of 100 m
• White sheath colour
• Strand size of 0.19 mm
• Euroclass Eca compliant
• Voltage rating of 300 V
