Alpha Wire Ecogen Ecocable Mini Control Cable, 4 Cores, 0.24 mm², ECO, Screened, 30m, Grey mPPE Sheath, 24 AWG

View all Control Cable

Subtotal (1 reel of 30 metres)*

£314.60

(exc. VAT)

£377.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 02 December 2025
  • Plus 2 unit(s) shipping from 13 January 2026
  • Plus 6 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£314.60£10.487

*price indicative

RS Stock No.:
832-5048
Mfr. Part No.:
78324 SL005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

Ecogen Ecocable Mini

Number of Cores

4

Cross Sectional Area

0.24 mm²

American Wire Gauge

24 AWG

Conductor Material

Tinned Copper

Sheath Material

mPPE

Sheath Colour

Grey

Control Cable Type

ECO

Screen Type

Foil and Braid

Screened/Unscreened

Screened

Length

30m

Minimum Bend Radius

10 x Diameter

Outer Diameter

4.04mm

Voltage Rating

300 V

Standards Met

CE, CSA, UL

CPR Certification

Eca

Maximum Operating Temperature

+80°C

Fire Behaviour

Halogen Free

Drain Wire

Yes

Core Strands

19/0.127 mm

Minimum Operating Temperature

-40°C

Insulation Material

MPPE

COO (Country of Origin):
US

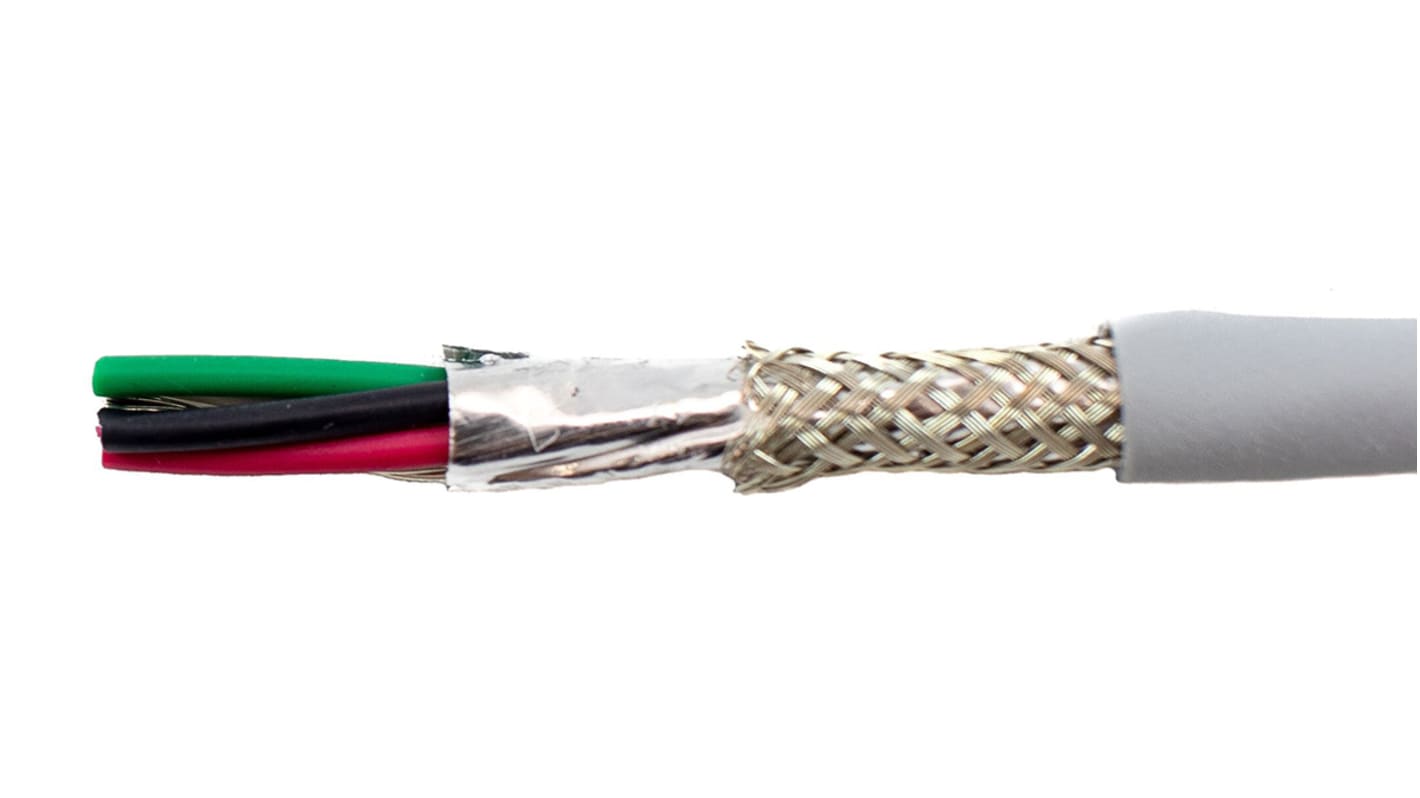

Alpha Wire EcoCable Mini - 300 V Supra-Shield Foil + Braid, Multiconductor


The Supra-Shield foil and braid EcoCable Mini range from Alpha Wire is a 300 Volt electrical cable which is fully recyclable due to its mPPE sheath and insulation construction. This stranded cable can handle extreme temperatures, contains zero halogens and is smaller and lighter than its PVC equivalent. Cables with Supra-Shield have a triple layer of aluminium/polyester/aluminium foil and braided shielding made from tinned copper. The combination of braid and foil allows for excellent EMI performance.

Features and Benefits


Temperature Range: -40°C to +80°C

Tinned copper conductors

mPPE insulation and jacket

Zero halogen

Specific gravity: 1.03

100% recyclable

Low outgassing

Available in several sizes of AWG

Supra-Shield® Foil + Braid Shield

How do communication cables work?


Communication cables work by sending information between two points, often at long distances via their copper conductors or optical fibres. Data communication requires clean transmission with little to no interference from external sources.

What is mPPE?


mPPE is a modified polyphenylene ether thermoplastic. Cables made from mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Product Application Information


Communication cables are used in a wide range of applications such as radio transmitters, electronic circuits, telecommunication, automation and studios. They are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals


• UL AWM 21460 • UL VW-1 • CSA I A/B FT1 • CE • RoHS • REACH • WEEE • ISO 10993-5

EcoCable Mini 300 V Supra-Shield Foil + Braid Shield, Multiconductor


Conductors: 4, Black, Brown, Red, Orange
Nominal Diameter: 0.159 inch (4.04 mm)
Jacket Thickness: 0.015 inch (0.38 mm)
Stranding: 19/36
Insulation Thickness: 0.007 (0.18 mm)
24 AWG (0.241 mm²)
Jacket Colour: Slate
