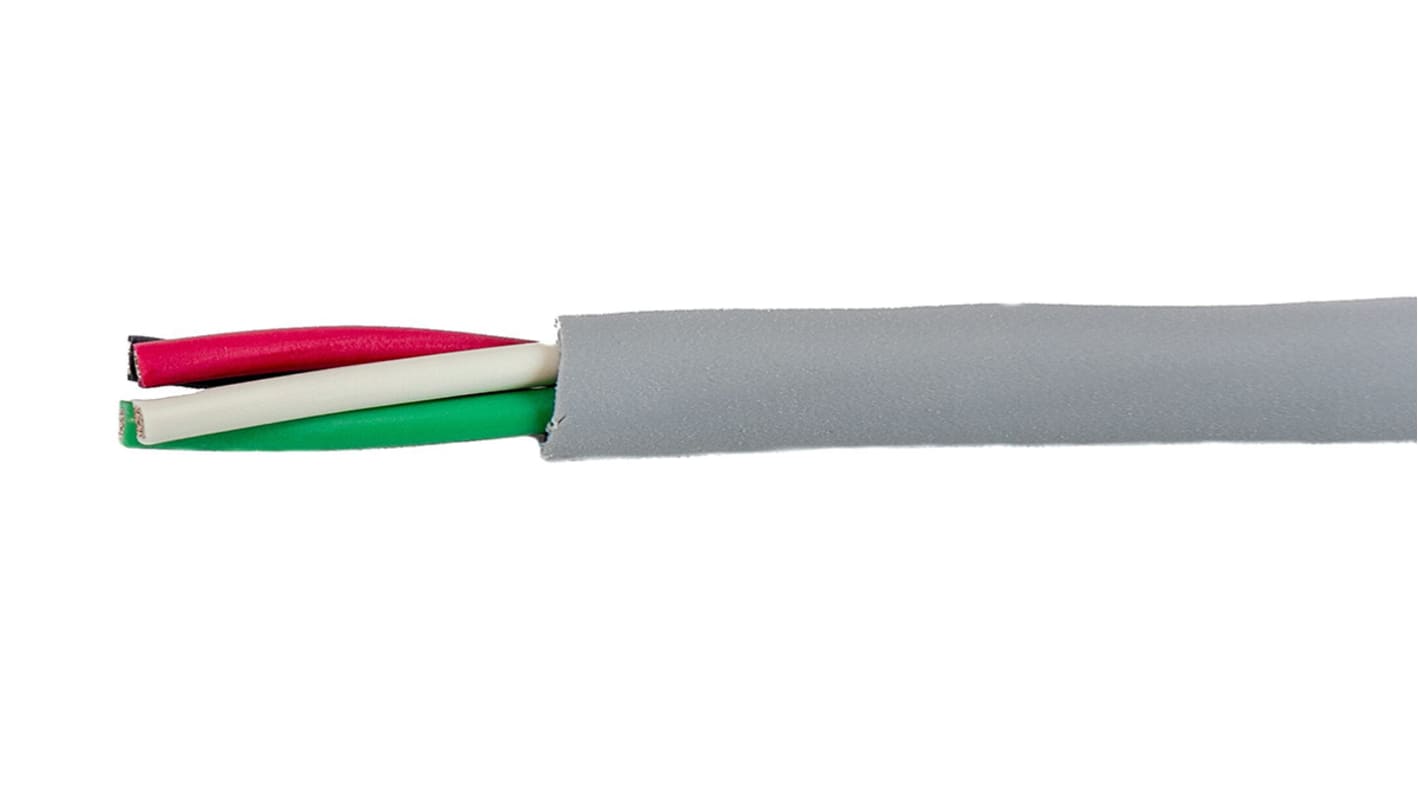

Alpha Wire Ecogen Ecocable Mini Control Cable, 4 Cores, 0.15 mm², ECO, Unscreened, 30m, Grey mPPE Sheath, 26 AWG
- RS Stock No.:
- 832-4758
- Mfr. Part No.:
- 78014 SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£228.60
(exc. VAT)
£274.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £228.60 | £7.62 |
*price indicative
- RS Stock No.:
- 832-4758
- Mfr. Part No.:
- 78014 SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Ecogen Ecocable Mini | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.15 mm² | |
| American Wire Gauge | 26 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | mPPE | |
| Control Cable Type | ECO | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Length | 30m | |
| Minimum Bend Radius | 10 x Diameter | |
| Outer Diameter | 2.95mm | |
| Voltage Rating | 300 V | |
| Standards Met | CE, CSA, UL | |
| Fire Behaviour | Halogen Free | |
| Maximum Operating Temperature | +80°C | |
| Drain Wire | No | |
| Core Strands | 19/0.102 mm | |
| Insulation Material | MPPE | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Ecogen Ecocable Mini | ||
Number of Cores 4 | ||
Cross Sectional Area 0.15 mm² | ||
American Wire Gauge 26 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material mPPE | ||
Control Cable Type ECO | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 2.95mm | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Fire Behaviour Halogen Free | ||
Maximum Operating Temperature +80°C | ||
Drain Wire No | ||
Core Strands 19/0.102 mm | ||
Insulation Material MPPE | ||
Minimum Operating Temperature -40°C | ||
Alpha Wire EcoCable Mini - 300 V Unshielded, Multiconductor
The unshielded EcoCable Mini range from Alpha Wire is a 300 Volt electrical cable which is fully recyclable due to its mPPE sheath and insulation construction. This stranded cable can handle extreme temperatures, contains zero halogens and is smaller and lighter than its PVC equivalent.
Features and Benefits
Temperature Range: -40°C to +80°C
Tinned copper conductors
mPPE insulation and jacket
Zero halogen
Specific gravity: 1.03
100% recyclable
Low outgassing
Available in several sizes of AWG
How do communication cables work?
Communication cables work by sending information between two points, often at long distances via their copper conductors or optical fibres. Data communication requires clean transmission with little to no interference from external sources.
What is mPPE?
mPPE is a modified polyphenylene ether thermoplastic. Cables made from mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.
Product Application Information
Communication cables are used in a wide range of applications such as radio transmitters, electronic circuits, telecommunication, automation and studios. They are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.
Approvals
• UL AWM 21460 • UL VW-1 • CSA I A/B FT1 • CE • RoHS • REACH • WEEE • ISO 10993-5
EcoCable Mini 300 V Unshielded, Multiconductor
Conductors: 4, Black, Brown, Red, Orange
Nominal Diameter: 0.116 inch (2.95 mm)
Jacket Thickness: 0.015 inch (0.38 mm)
Stranding: 19/38
Insulation Thickness: 0.007 (0.18 mm)
26 AWG (0.154 mm²)
Jacket Colour: Slate
Nominal Diameter: 0.116 inch (2.95 mm)
Jacket Thickness: 0.015 inch (0.38 mm)
Stranding: 19/38
Insulation Thickness: 0.007 (0.18 mm)
26 AWG (0.154 mm²)
Jacket Colour: Slate
