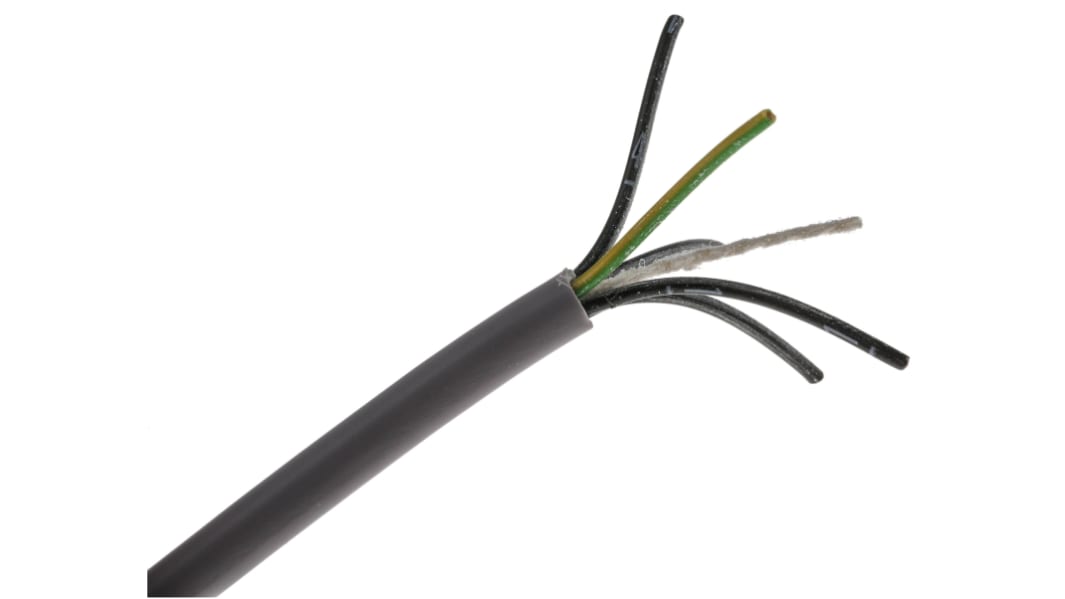

RS PRO Control Cable, 5 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£61.76

(exc. VAT)

£74.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 78 unit(s) ready to ship
  • Plus 14 unit(s) ready to ship from another location
  • Plus 35 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£61.76£1.235

*price indicative

RS Stock No.:
827-4274
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

ÖLFLEX® CLASSIC 110

Number of Cores

5

Cross Sectional Area

0.5 mm²

American Wire Gauge

20 AWG

Conductor Material

Bare Copper

Sheath Material

PVC

Sheath Colour

Grey

Control Cable Type

YY

Screened/Unscreened

Unscreened

Minimum Bend Radius

Fixed - 4 x D, Occasional Flexing - 15 x D

Outer Diameter

6.2mm

Length

50m

Voltage Rating

300/500 V

Current Rating

9 A

Standards Met

EN 50525-2-51

CPR Certification

Eca

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Filler Material

Non-Wicking Filler

Minimum Operating Temperature

-40°C

Core Strands

16/0.20 mm

Oil Resistant

Yes

Cable Shape

Multicore

Earth Cable

Yes

Insulation Material

PVC

Conductor Resistance

39 Ω/km

COO (Country of Origin):
DE

LAPP ÖLFLEX® CLASSIC 110 Series Control Cable, 0.5mm² Cross Sectional Area, 50m Length - 1119005


This control cable is designed for versatile applications in automation and electrical systems. With a length of 50m, it features a 5-core configuration, ensuring a reliable solution for power and signal transfer. The cable is composed of bare copper conductors and is encased in a grey PVC sheath, making it suitable for various environmental conditions specified in its electrical credentials.

Features & Benefits


• Unscreened design allows for easier installation in tight spaces
• Flame retardant properties enhance safety during operation
• Good chemical resistance ensures durability in challenging environments
• Suitable for fixed installations while maintaining flexibility
• Maximum operating temperature of +80°C caters for demanding usage
• Low conductor resistance of 39 ohm/km improves efficiency

Applications


• Used in plant engineering for controlling machinery
• Suitable for conveyor and transport systems wiring
• Ideal for heating and air conditioning system connections
• Effective in robust electrical installations requiring flexibility
• Utilised in varied automation technologies and projects

What is the minimum bend radius for this control cable?


The minimum bend radius for fixed installations is 4 times the outer diameter, while for occasional flexing, it is 10 times the outer diameter.

Can this cable handle outdoor applications?


Yes, the cable is oil resistant and can be effectively used in outdoor environments

however, it is advisable to consider additional protective measures depending on the specific external conditions.

What electrical specifications should I be aware of when using this cable?


Key specifications include a voltage rating of 300/500 V and a current rating of 9A, making it suitable for a variety of electrical applications.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
