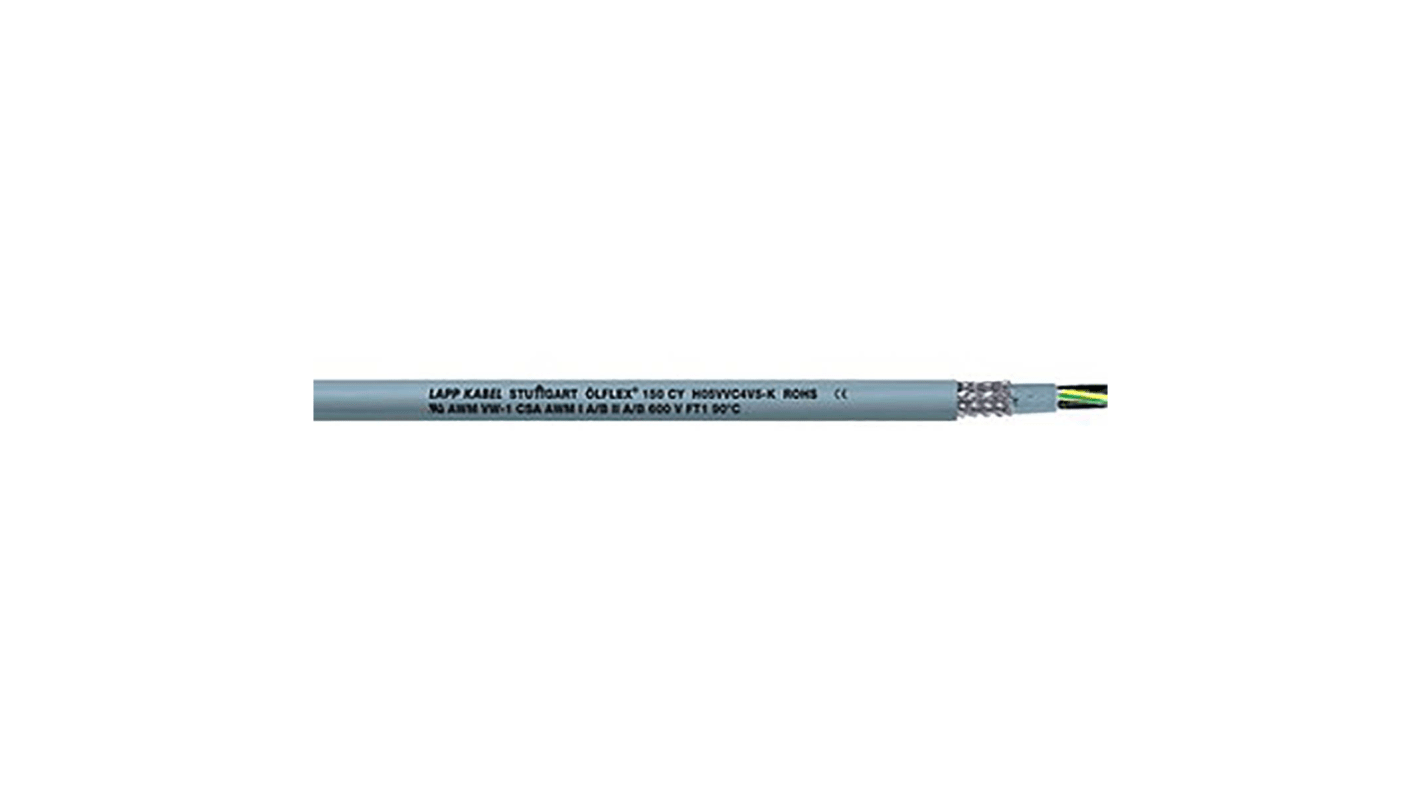

Lapp ÖLFLEX 150 CY Control Cable, 7 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 15 AWG

RS Stock No.:: 807-8913
Mfr. Part No.:: 0015807
Brand:: Lapp

Lapp ÖLFLEX 150 CY Control Cable, 7 Cores, 1.5 mm², CY, Screened, 50m, Grey PVC Sheath, 15 AWG

Subtotal (1 reel of 50 metres)*

£485.70

(exc. VAT)

£582.84

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£485.70	£9.714

*price indicative

RS Stock No.:: 807-8913
Mfr. Part No.:: 0015807
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX 150 CY
	Number of Cores	7
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	15 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	CY
	Screened/Unscreened	Screened
	Screen Type	Tinned Copper Braid
	Outer Diameter	15.1mm
	Minimum Bend Radius	6 x Diameter
	Length	50m
	Voltage Rating	500 V
	Standards Met	CE, CSA, UL
	CPR Certification	Dca
	Maximum Operating Temperature	+70°C
	Fire Behaviour	Flame Retardant
	Insulation Material	PVC
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Cable Shape	Multicore
	Drain Wire	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX 150 CY
	Number of Cores 7
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 15 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type CY
	Screened/Unscreened Screened
	Screen Type Tinned Copper Braid
	Outer Diameter 15.1mm
	Minimum Bend Radius 6 x Diameter
	Length 50m
	Voltage Rating 500 V
	Standards Met CE, CSA, UL
	CPR Certification Dca
	Maximum Operating Temperature +70°C
	Fire Behaviour Flame Retardant
	Insulation Material PVC
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Cable Shape Multicore
	Drain Wire Yes

COO (Country of Origin):: DE

LAPP ÖLFLEX 150 CY Series Control Cable, 7 Cores, 1.5 mm² Cross Sectional Area - 0015807

This control cable is a high-quality solution designed for various applications in electrical engineering and automation. With a multicore structure featuring 7 cores and a cross-sectional area of 1.5 mm², it is particularly suited for tasks that require effective data and signal transmission. The grey PVC sheath ensures durability while the cable maintains flexibility for easy installation in both dry and damp conditions.

Features & Benefits

• Oil-resistant construction enhances durability against pollutants
• Flame retardant properties improve safety in installations
• Copper conductor ensures excellent conductivity and performance
• Rated for a voltage of 500V suitable for various systems

Applications

• Ideal for use in plant engineering projects
• Can used in industrial machinery setups
• Suitable for heating and air conditioning system wiring
• Effective in environments sensitive to electromagnetic interference
• Appropriate for installations in dry, damp, and wet interiors

What are the installation requirements for this cable in mechanical applications?

It is recommended for fixed installations under medium mechanical load with occasional flexing allowed, provided there is no tensile load or compulsory guidance. The minimum bending radius should be adhered to for optimal performance.

How does the screened feature benefit installations in sensitive environments?

The high degree of screening greatly reduces transfer impedance, thereby minimising interference signals that could affect performance. This makes it particularly effective in electromagnetic compatibility (EMC) sensitive environments.

Which environments are most suitable for the use of this cable?

While it is suitable for dry, damp, and even wet interiors, it is not recommended for outdoor use. It performs well in conditions that may involve exposure to water-oil mixtures, making it versatile for industrial settings.
