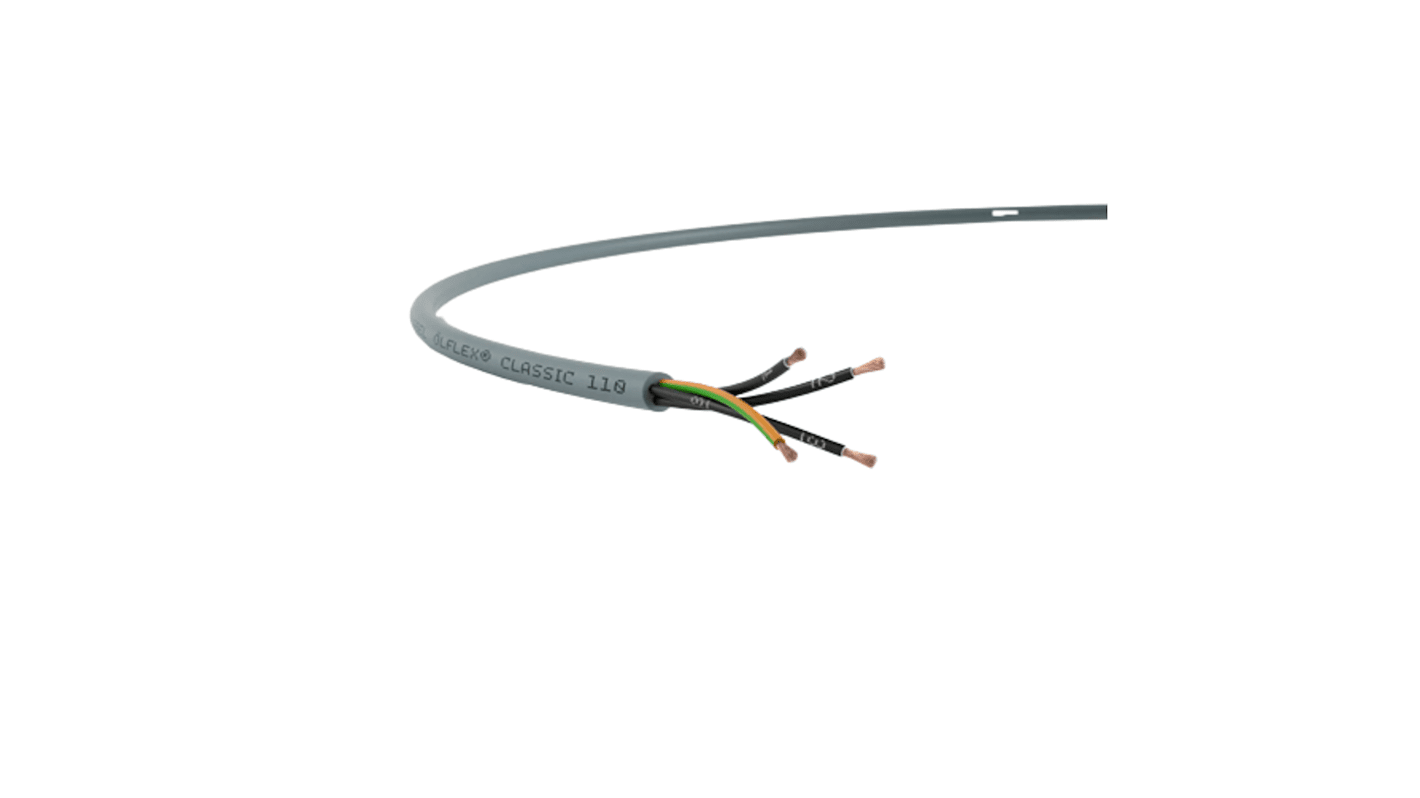

Lapp ÖLFLEX CLASSIC 110 Control Cable, 7 Cores, 1.5 mm², YY, Unscreened, 100m, Grey PVC Sheath, 16 AWG
- RS Stock No.:
- 787-4075
- Distrelec Article No.:
- 304-01-840
- Mfr. Part No.:
- 1119307
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£402.72
(exc. VAT)
£483.26
(inc. VAT)
FREE delivery for orders over £50.00
- 3 unit(s) ready to ship
- Plus 8 unit(s) shipping from 16 October 2025
- Plus 999,999,988 unit(s) shipping from 01 January 2026
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £402.72 | £4.027 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£320.09
(exc. VAT)
£384.11
(inc. VAT)
- RS Stock No.:
- 787-4075
- Distrelec Article No.:
- 304-01-840
- Mfr. Part No.:
- 1119307
- Brand:
- Lapp
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 110 | |
| Number of Cores | 7 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Control Cable Type | YY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| Outer Diameter | 8.9mm | |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D | |
| Voltage Rating | 300/500 V | |
| Current Rating | 18 A | |
| CPR Certification | Eca | |
| Standards Met | CE | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Filler Material | Non-Wicking Filler | |
| Oil Resistant | Yes | |
| Core Strands | 30/0.25 mm | |
| Earth Cable | Yes | |
| Minimum Operating Temperature | -40°C | |
| Insulation Material | PVC | |
| Conductor Resistance | 13.5 Ω/km | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 | ||
Number of Cores 7 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Outer Diameter 8.9mm | ||
Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 18 A | ||
CPR Certification Eca | ||
Standards Met CE | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Filler Material Non-Wicking Filler | ||
Oil Resistant Yes | ||
Core Strands 30/0.25 mm | ||
Earth Cable Yes | ||
Minimum Operating Temperature -40°C | ||
Insulation Material PVC | ||
Conductor Resistance 13.5 Ω/km | ||
