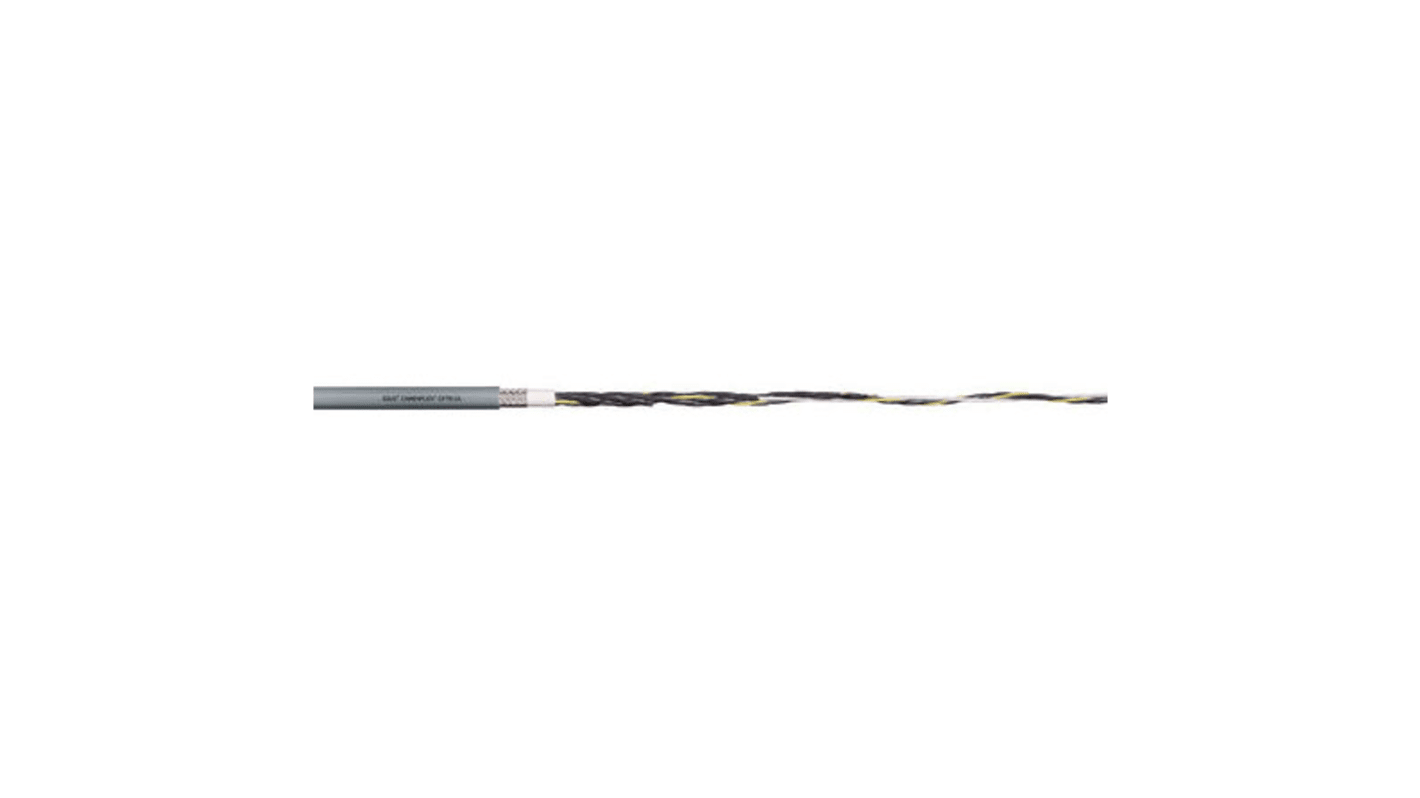

Igus chainflex CF78.UL Control Cable, 7 Cores, 0.5 mm², Screened, 25m, Grey PUR Sheath, 20 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£256.80

(exc. VAT)

£308.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 999,999,998 unit(s) shipping from 29 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£256.80£10.272

*price indicative

RS Stock No.:
765-4323
Mfr. Part No.:
CF78.UL.05.07
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF78.UL

Number of Cores

7

Cross Sectional Area

0.5 mm²

American Wire Gauge

20 AWG

Conductor Material

Bare Copper

Sheath Material

PUR

Sheath Colour

Grey

Screened/Unscreened

Screened

Screen Type

Braid

Armoured

No

Outer Diameter

9.5mm

Length

25m

Minimum Bend Radius

4 x D

Voltage Rating

300/500 V

Current Rating

10 A

Fire Behaviour

Flame Retardant, Halogen Free

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-35°C

Insulation Material

TPE

Earth Cable

Yes

Conductor Resistance

39 Ω/km

Oil Resistant

Yes

Cable Shape

Multicore
