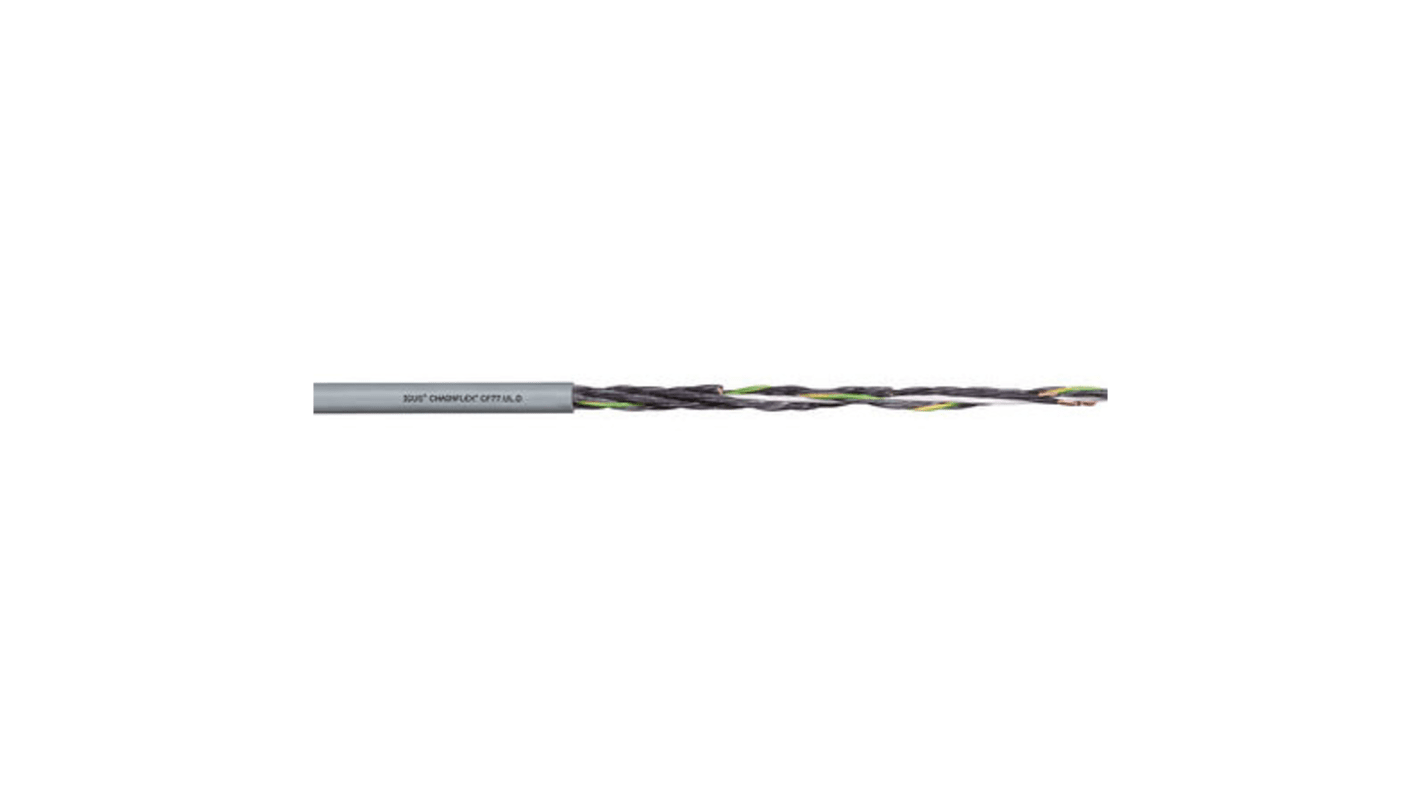

Igus chainflex CF77.UL.D Control Cable, 3 Cores, 0.75 mm², Unscreened, 25m, Grey PUR Sheath, 18 AWG
- RS Stock No.:
- 765-4250
- Mfr. Part No.:
- CF77.UL.07.03.D
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£86.71
(exc. VAT)
£104.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £86.71 | £3.468 |
*price indicative
- RS Stock No.:
- 765-4250
- Mfr. Part No.:
- CF77.UL.07.03.D
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF77.UL.D | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Armoured | No | |
| Screened/Unscreened | Unscreened | |
| Minimum Bend Radius | 4 x D | |
| Length | 25m | |
| Outer Diameter | 6mm | |
| Voltage Rating | 300/500 V | |
| Current Rating | 14 A | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Insulation Material | TPE | |
| Earth Cable | Yes | |
| Conductor Resistance | 26 Ω/km | |
| Minimum Operating Temperature | -35°C | |
| Oil Resistant | Yes | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF77.UL.D | ||
Number of Cores 3 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Armoured No | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius 4 x D | ||
Length 25m | ||
Outer Diameter 6mm | ||
Voltage Rating 300/500 V | ||
Current Rating 14 A | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Insulation Material TPE | ||
Earth Cable Yes | ||
Conductor Resistance 26 Ω/km | ||
Minimum Operating Temperature -35°C | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- DE
Chainflex® PUR Control Cable
Chainflex PUR control cable is designed for high load requirements.
Features and Benefits
• Oil-resistant and coolant-resistant
• Flame-retardant in accordance to IEC 332-1, CEI 20-35, FT1
• Notch-resistant
• PVC-free/halogen-free
• Core insulation: mechanically high-quality TPE mixture
• Especially for freely suspended and gliding travel distances up to 100 m
• Flame-retardant in accordance to IEC 332-1, CEI 20-35, FT1
• Notch-resistant
• PVC-free/halogen-free
• Core insulation: mechanically high-quality TPE mixture
• Especially for freely suspended and gliding travel distances up to 100 m
