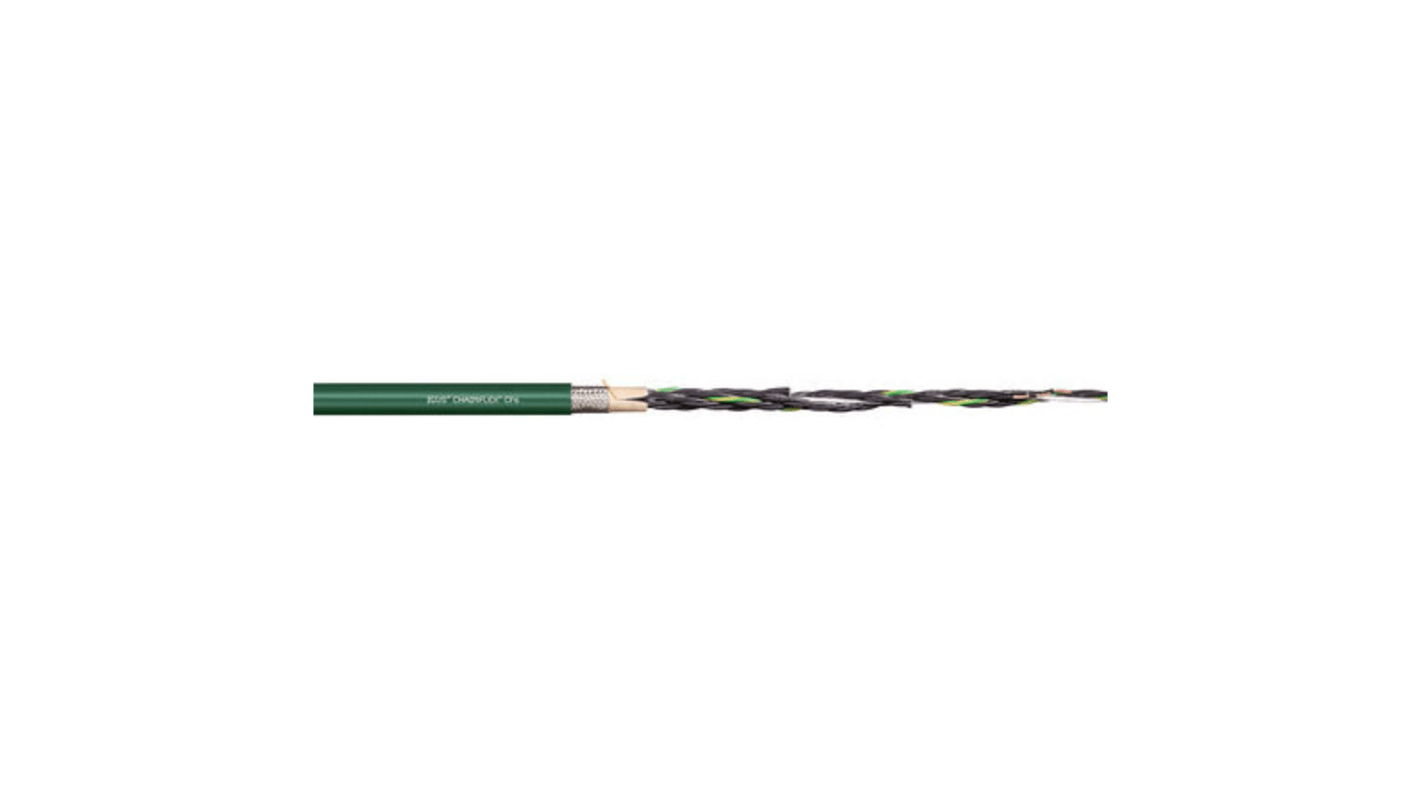

Igus chainflex CF6 Control Cable, 3 Cores, 1 mm², Screened, 25m, Green PVC Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£168.43

(exc. VAT)

£202.12

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£168.43£6.737

*price indicative

RS Stock No.:
765-4196
Mfr. Part No.:
CF6.10.03
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF6

Number of Cores

3

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Bare Copper

Sheath Material

PVC

Sheath Colour

Green

Screened/Unscreened

Screened

Screen Type

Braid

Armoured

No

Length

25m

Outer Diameter

8.5mm

Minimum Bend Radius

4 x D

Voltage Rating

300/500 V

Current Rating

15 A

Maximum Operating Temperature

+70°C

Fire Behaviour

Flame Retardant

Insulation Material

PVC

Oil Resistant

Yes

Minimum Operating Temperature

-5°C

Cable Shape

Multicore

Conductor Resistance

19.5 Ω/km

Earth Cable

Yes

COO (Country of Origin):
DE

Chainflex® PVC Control Cable CF6


The Chainflex® PVC control cable CF6 is used for high load requirements. Applications include: Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling and indoor cranes.

Features and Benefits


• Shielded
• Light oil influence
• Indoor applications, but also outdoor ones at temperatures +5 ºC
• Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228)
• Outer jacket tear strip
• Strip cables 50% faster
• Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains (following DIN VDE 0281 Part 13)
