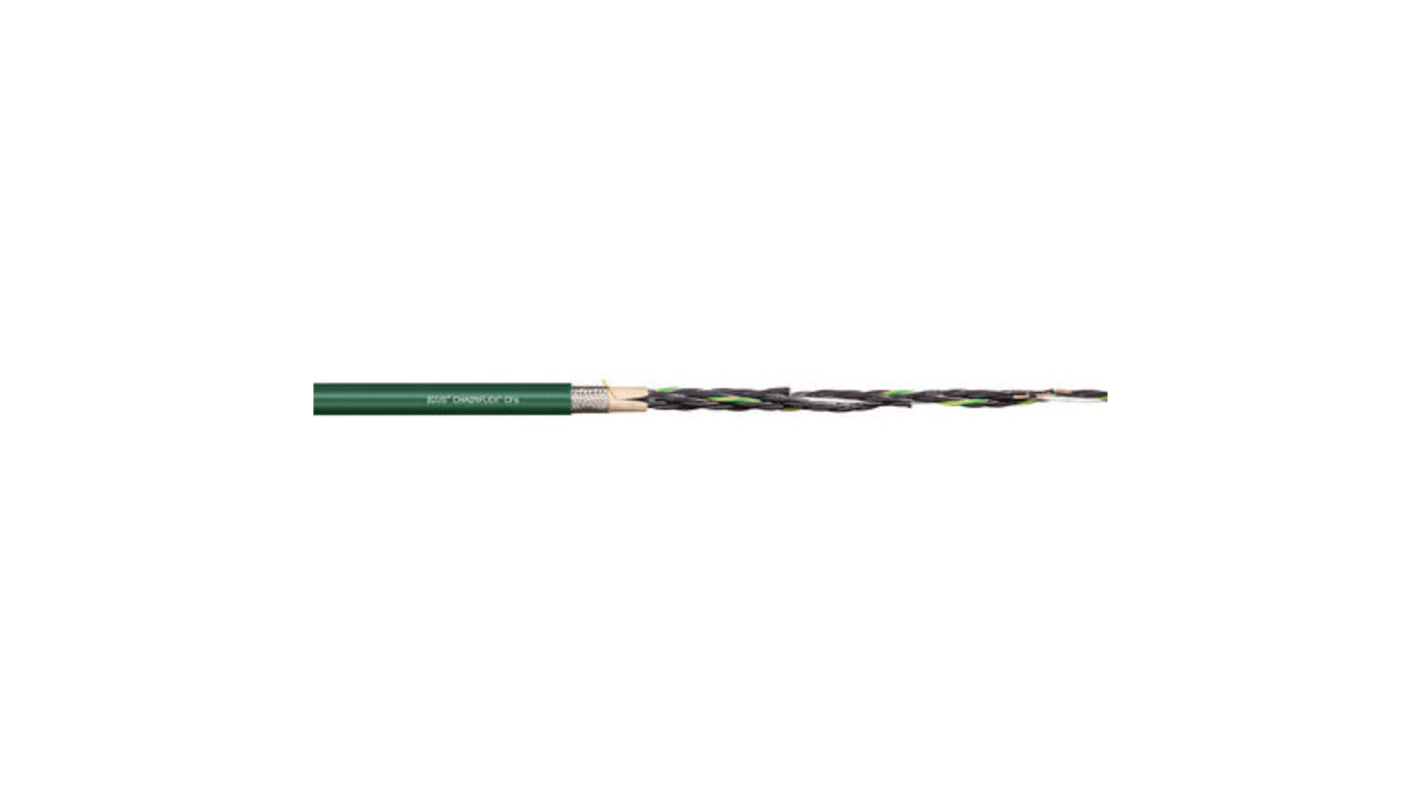

Igus chainflex CF6 Control Cable, 5 Cores, 0.75 mm², Screened, 20m, Green PVC Sheath, 18 AWG
- RS Stock No.:
- 765-4187
- Mfr. Part No.:
- CF6.07.05
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£228.45
(exc. VAT)
£274.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £228.45 | £9.138 |
*price indicative
- RS Stock No.:
- 765-4187
- Mfr. Part No.:
- CF6.07.05
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF6 | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Green | |
| Screened/Unscreened | Screened | |
| Screen Type | Braid | |
| Armoured | No | |
| Length | 20m | |
| Outer Diameter | 9mm | |
| Minimum Bend Radius | 4 x D | |
| Voltage Rating | 300/500 V | |
| Current Rating | 12 A | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +70°C | |
| Earth Cable | Yes | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | Yes | |
| Cable Shape | Multicore | |
| Conductor Resistance | 26 Ω/km | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF6 | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Green | ||
Screened/Unscreened Screened | ||
Screen Type Braid | ||
Armoured No | ||
Length 20m | ||
Outer Diameter 9mm | ||
Minimum Bend Radius 4 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 12 A | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Conductor Resistance 26 Ω/km | ||
- COO (Country of Origin):
- DE
Chainflex® PVC Control Cable CF6
The Chainflex® PVC control cable CF6 is used for high load requirements. Applications include: Storage and retrieval units for high-bay warehouses, machining units/packaging machines, quick handling and indoor cranes.
Features and Benefits
• Shielded
• Light oil influence
• Indoor applications, but also outdoor ones at temperatures +5 ºC
• Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228)
• Outer jacket tear strip
• Strip cables 50% faster
• Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains (following DIN VDE 0281 Part 13)
• Light oil influence
• Indoor applications, but also outdoor ones at temperatures +5 ºC
• Fine-wire stranded conductor in especially bending-resistant version consisting of bare copper wires (following EN 60228)
• Outer jacket tear strip
• Strip cables 50% faster
• Low-adhesion, oil-resistant mixture on the basis of PVC, adapted to suit the requirements in energy chains (following DIN VDE 0281 Part 13)
