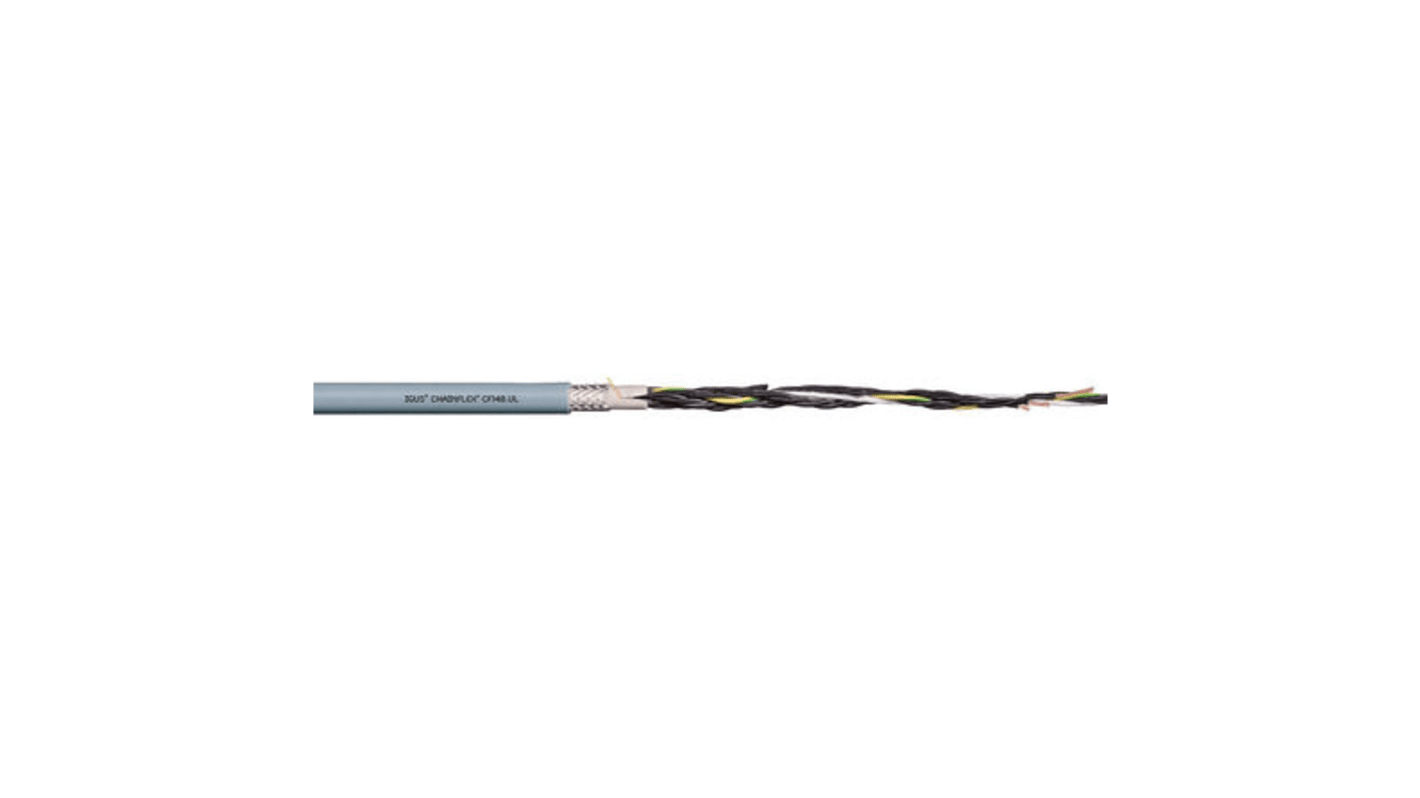

Igus chainflex CF140.UL Control Cable, 18 Cores, 1 mm², Screened, 25m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 765-4042
- Mfr. Part No.:
- CF140.10.18.UL
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£662.55
(exc. VAT)
£795.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £662.55 | £26.502 |
*price indicative
- RS Stock No.:
- 765-4042
- Mfr. Part No.:
- CF140.10.18.UL
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Igus | |
Series | chainflex CF140.UL | |
Number of Cores | 18 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Armoured | No | |
Screened/Unscreened | Screened | |
Screen Type | Braid | |
Minimum Bend Radius | 7.5 x D | |
Outer Diameter | 16.5mm | |
Length | 25m | |
Voltage Rating | 300 V | |
Current Rating | 17 A | |
Fire Behaviour | Flame Retardant | |
Maximum Operating Temperature | +70°C | |
Conductor Resistance | 19.5 Ω/km | |
Earth Cable | Yes | |
Insulation Material | TPE | |
Cable Shape | Multicore | |
Oil Resistant | No | |
Minimum Operating Temperature | -5°C | |
Select all | ||
---|---|---|
Brand Igus | ||
Series chainflex CF140.UL | ||
Number of Cores 18 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Screen Type Braid | ||
Minimum Bend Radius 7.5 x D | ||
Outer Diameter 16.5mm | ||
Length 25m | ||
Voltage Rating 300 V | ||
Current Rating 17 A | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Conductor Resistance 19.5 Ω/km | ||
Earth Cable Yes | ||
Insulation Material TPE | ||
Cable Shape Multicore | ||
Oil Resistant No | ||
Minimum Operating Temperature -5°C | ||
- COO (Country of Origin):
- DE
Chainflex® PVC Control Cable CF 140
Chainflex® PVC control cable CF 140 is designed for medium load requirements.
Features and Benefits
Preferably indoor operations
Shielded
Especially for freely suspended travel distances, but also for gliding applications up to 50 m
Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1-1
Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
Without influence of oil
Temperature moved from -5 ºC to 70 ºC
Shielded
Especially for freely suspended travel distances, but also for gliding applications up to 50 m
Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1-1
Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
Without influence of oil
Temperature moved from -5 ºC to 70 ºC
Standards
IEC 60332-1-2, CEI 20-35, FT1, VW-1
