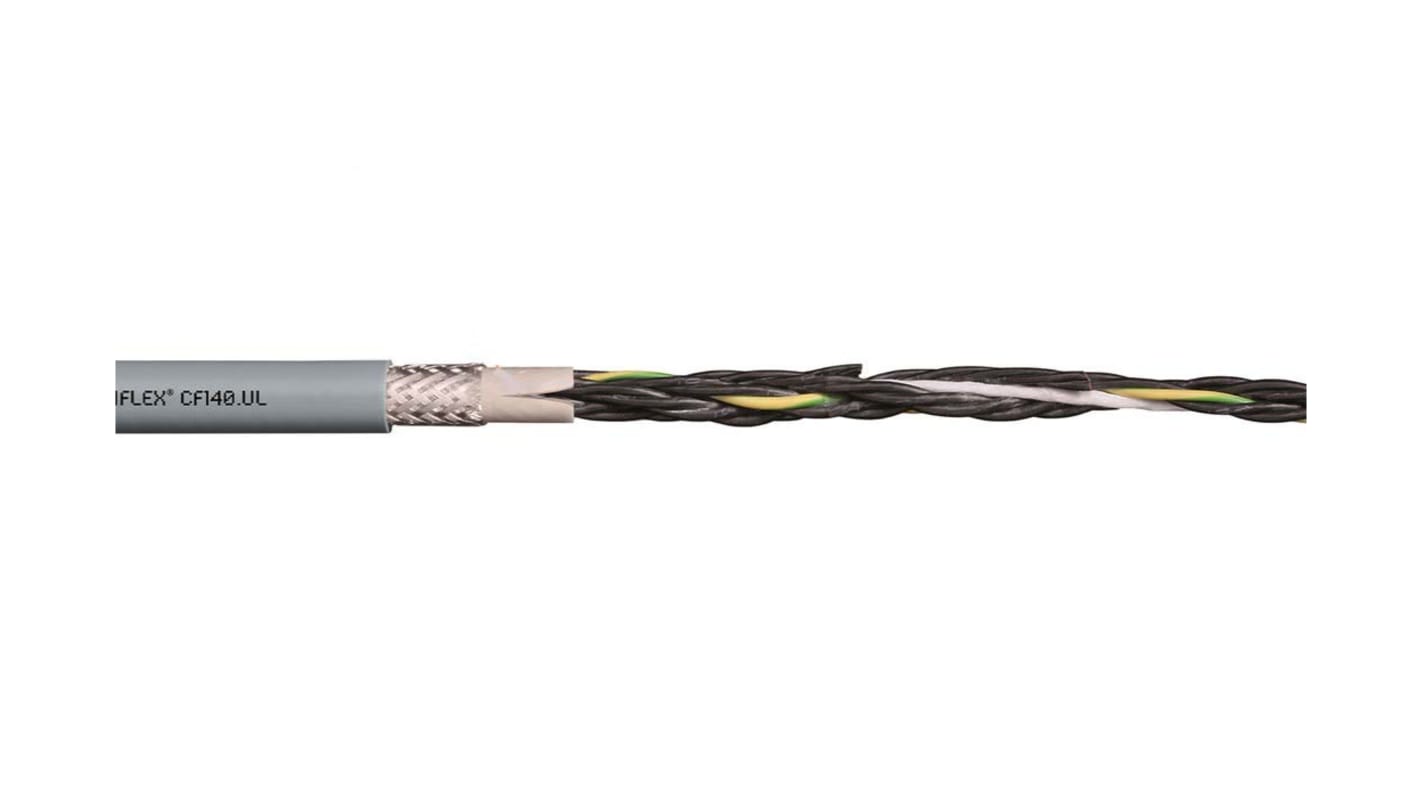

Igus chainflex CF140.UL Control Cable, 3 Cores, 1 mm², Screened, 10m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 502-3036
- Mfr. Part No.:
- CF140.10.03.UL
- Brand:
- Igus
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 502-3036
- Mfr. Part No.:
- CF140.10.03.UL
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Igus | |
Series | chainflex CF140.UL | |
Number of Cores | 3 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Tinned Copper Braid | |
Screened/Unscreened | Screened | |
Armoured | No | |
Length | 10m | |
Outer Diameter | 8.5mm | |
Minimum Bend Radius | 15 x Diameter | |
Voltage Rating | 500 V | |
Current Rating | 15 A | |
Fire Behaviour | Flame Retardant | |
Maximum Operating Temperature | +70°C | |
Earth Cable | Yes | |
Oil Resistant | No | |
Drain Wire | No | |
Minimum Operating Temperature | -5°C | |
Cable Shape | Multicore | |
Conductor Resistance | 19.5 Ω/km | |
Insulation Material | TPE | |
Select all | ||
---|---|---|
Brand Igus | ||
Series chainflex CF140.UL | ||
Number of Cores 3 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Tinned Copper Braid | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Length 10m | ||
Outer Diameter 8.5mm | ||
Minimum Bend Radius 15 x Diameter | ||
Voltage Rating 500 V | ||
Current Rating 15 A | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Earth Cable Yes | ||
Oil Resistant No | ||
Drain Wire No | ||
Minimum Operating Temperature -5°C | ||
Cable Shape Multicore | ||
Conductor Resistance 19.5 Ω/km | ||
Insulation Material TPE | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Chainflex® PVC Control Cable CF 140
Chainflex® PVC control cable CF 140 is designed for medium load requirements.
Features and Benefits
Preferably indoor operations
Shielded
Especially for freely suspended travel distances, but also for gliding applications up to 50 m
Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1-1
Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
Without influence of oil
Temperature moved from -5 ºC to 70 ºC
Shielded
Especially for freely suspended travel distances, but also for gliding applications up to 50 m
Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1-1
Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
Without influence of oil
Temperature moved from -5 ºC to 70 ºC
Standards
IEC 60332-1-2, CEI 20-35, FT1, VW-1
