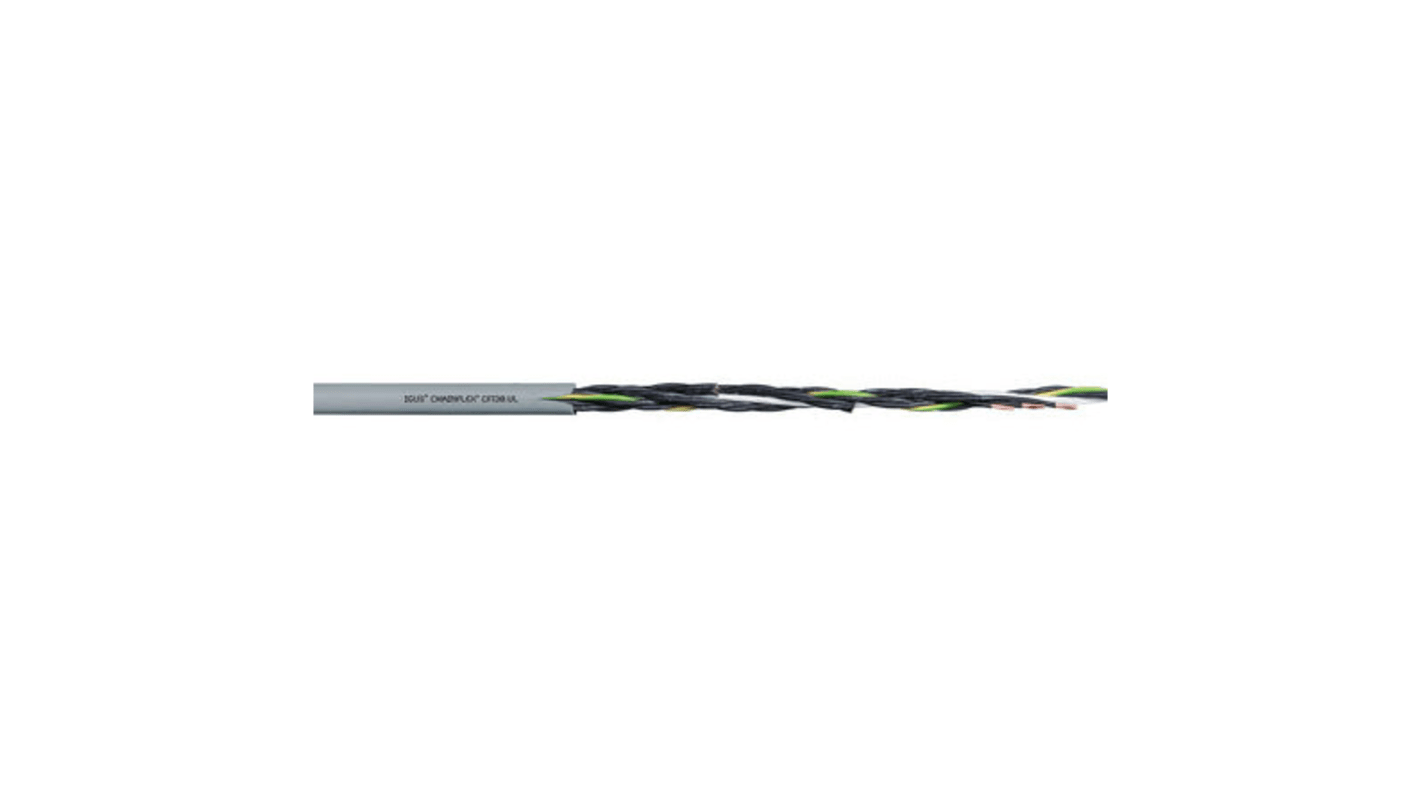

Igus chainflex CF130.UL Control Cable, 12 Cores, 0.75 mm², Unscreened, 25m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 765-3979
- Mfr. Part No.:
- CF130.07.12.UL
- Brand:
- Igus
6 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 25 Metre(s)
£213.01
(exc. VAT)
£255.61
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £213.01 | £8.52 |
| *price indicative | ||
- RS Stock No.:
- 765-3979
- Mfr. Part No.:
- CF130.07.12.UL
- Brand:
- Igus
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Chainflex® PVC Control Cable CF130
Chainflex® PVC control cable is designed for medium load requirements.
Features and Benefits
• Silicon-free
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)
Standards
IEC 60332-1-2, CEI 20-35, FT1, VW1
Specifications
Attribute | Value |
|---|---|
| Series | chainflex CF130.UL |
| Number of Cores | 12 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 25m |
| Sheath Colour | Grey |
| Cable Shape | Multicore |
| American Wire Gauge | 18 AWG |
| Outer Diameter | 10.5mm |
| Sheath Material | PVC |
| Screen Type | Unscreened |
| Earth Cable | Yes |
| Voltage Rating | 300 V |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 5 x D |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +70°C |
| Armoured | No |
| Oil Resistant | No |
| Current Rating | 14 A |
| Insulation Material | TPE |
| Conductor Resistance | 26 Ω/km |
