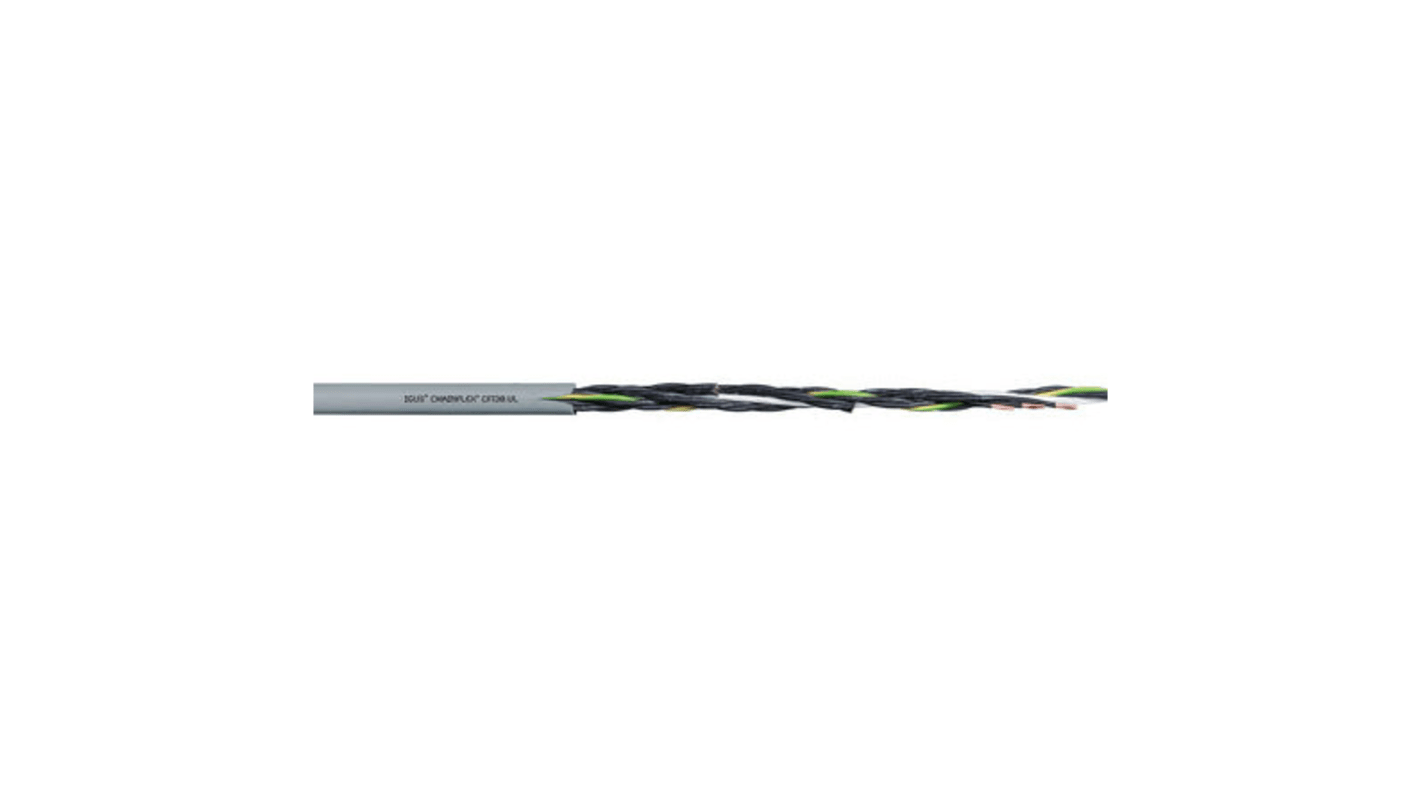

Igus chainflex CF130.UL Control Cable, 2 Cores, 0.75 mm², Unscreened, 25m, Grey PVC Sheath, 18 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£45.85

(exc. VAT)

£55.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£45.85£1.834

*price indicative

RS Stock No.:
765-3951
Mfr. Part No.:
CF130.07.02.UL
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF130.UL

Number of Cores

2

Cross Sectional Area

0.75 mm²

American Wire Gauge

18 AWG

Conductor Material

Bare Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Armoured

No

Outer Diameter

6mm

Length

25m

Minimum Bend Radius

5 x D

Voltage Rating

300/500 V

Current Rating

14 A

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+70°C

Earth Cable

No

Insulation Material

TPE

Cable Shape

Multicore

Oil Resistant

No

Minimum Operating Temperature

-5°C

Conductor Resistance

26 Ω/km

COO (Country of Origin):
DE

Chainflex® PVC Control Cable CF130


Chainflex® PVC control cable is designed for medium load requirements.

Features and Benefits


• Silicon-free
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)

Standards

IEC 60332-1-2, CEI 20-35, FT1, VW1
