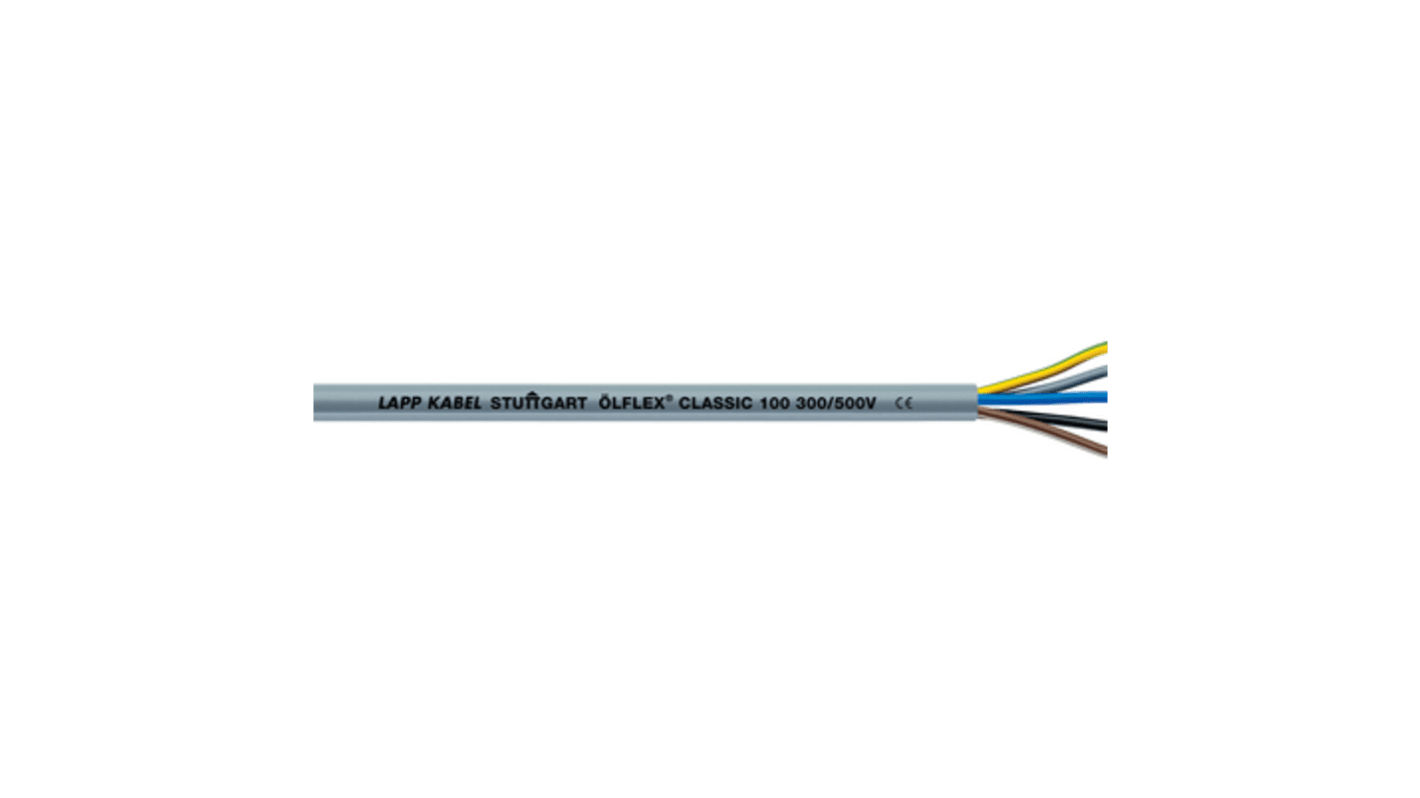

ÖLFLEX® Classic 100 cables are a connecting and control cable for flexible use and fixed installation for medium mechanical load.

ÖLFLEX® Classic 100 cables are used as supply and interconnecting cable for controlling machine tools, production lines, control equipment on conveyors, and are also used in computer units. They are suitable for use when freely moved without forced guidance and tensile stress.

They may only be installed outdoors with UV protection and in observation of their operating temperature range. At room temperature the cable is generally resistant against, acids, caustic solutions and certain oils.

Features and Benefits

• Chemical Resistance
• Flame retardant: in accordance to IEC 60 332.1 resp. VDE 0482 part 332-2-1
• Design: in accordance to HD 21.13S1 that is VDE 0281-13
• Minimum bending radius: flexible use 15 x cable diameter, fixed installation 4 x cable diameter
• Tests: in accordance to IEC 60 811 resp. VDE 0472 and VDE 0473
• Operating Temperature for flexible use -5 up to +70°C
• Operating Temperature for fixed installation -40 up to +80°C

Applications

ÖLFLEX® Classic 100 cables can be used in dry, damp and wet rooms, and their resistance to oil and chemicals makes them suitable for specialist environments. As such, they have a wide range of applications, and can often be found in;

• Plant and Engineering
• HVAC Systems
• Power Stations

Their torsion resistance also makes them suitable for torsional applications such as the loop in wind turbine generators.

Accessories

Lapp have a range of versatile cable glands for use in cable installation and management, such as the Skintop Click series of easy-fit glands:

• 560-678 is an M12 Skintop Click Cable Gland for 3.5-7mm Cable Diameters
• 475-091 is an M16 Skintop Click Cable Gland for 4.5-10mm Cable Diameters
• 475-136 is an M20 Skintop Click Cable Gland for 7-13mm Cable Diameters
• 475-132 is an M25 Skintop Click Cable Gland for 9-17mm Cable Diameters
• 560-688 is an M32 Skintop Click Cable Gland for 11-21mm Cable Diameters

This cable confirms to ECD 73/23/EEC (low voltage directive).

This control cable by Lapp features a compact design with high electrical performance and increased flexibility. It is ideal for plant engineering, industrial machinery and more, offering space-saving installation and reliable operation.

• Space-saving installation due to small cable diameters
• High electrical performance with 4kV test voltage
• Increased flexibility from short-twisted conductor layers
• Flame retardant according to IEC 60332-1-2
• Good chemical resistance for durability

• Ideal for plant engineering and construction
• Suitable for industrial machinery and air conditioning installations
• Can be used for dry or damp interiors under medium mechanical load conditions
• Designed for fixed installations and occasional flexing without tensile load

Yes, it is suitable for use in industrial machinery due to its high electrical performance and durability.

Yes, the cable is oil-resistant, making it suitable for various industrial applications.

The control cable can operate at temperatures ranging from -40°C to +70°C, making it suitable for different environments.

Yes, it is designed for fixed installations as well as occasional flexing without a constant tensile load.

The cable comes with a protective conductor for added safety in electrical installations.
