Lapp ÖLFLEX HEAT 180 SiHF Control Cable, 7 Cores, 1 mm², YY, Unscreened, 50m, Red Silicone Sheath, 17 AWG
- RS Stock No.:
- 714-2303
- Mfr. Part No.:
- 0046012
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£334.74
(exc. VAT)
£401.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) shipping from 31 October 2025
- Plus 2 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £334.74 | £6.695 |
*price indicative
- RS Stock No.:
- 714-2303
- Mfr. Part No.:
- 0046012
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX HEAT 180 SiHF | |
Number of Cores | 7 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | Silicone | |
Sheath Colour | Red | |
Control Cable Type | YY | |
Screened/Unscreened | Unscreened | |
Screen Type | Unscreened | |
Minimum Bend Radius | 4 x Diameter | |
Length | 50m | |
Outer Diameter | 9.5mm | |
Voltage Rating | 500 V | |
CPR Certification | Eca | |
Standards Met | CE | |
Fire Behaviour | Flame Retardant, Halogen Free | |
Maximum Operating Temperature | +180°C | |
Drain Wire | Yes | |
Insulation Material | Silicone | |
Minimum Operating Temperature | -50°C | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX HEAT 180 SiHF | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material Silicone | ||
Sheath Colour Red | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Screen Type Unscreened | ||
Minimum Bend Radius 4 x Diameter | ||
Length 50m | ||
Outer Diameter 9.5mm | ||
Voltage Rating 500 V | ||
CPR Certification Eca | ||
Standards Met CE | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Maximum Operating Temperature +180°C | ||
Drain Wire Yes | ||
Insulation Material Silicone | ||
Minimum Operating Temperature -50°C | ||

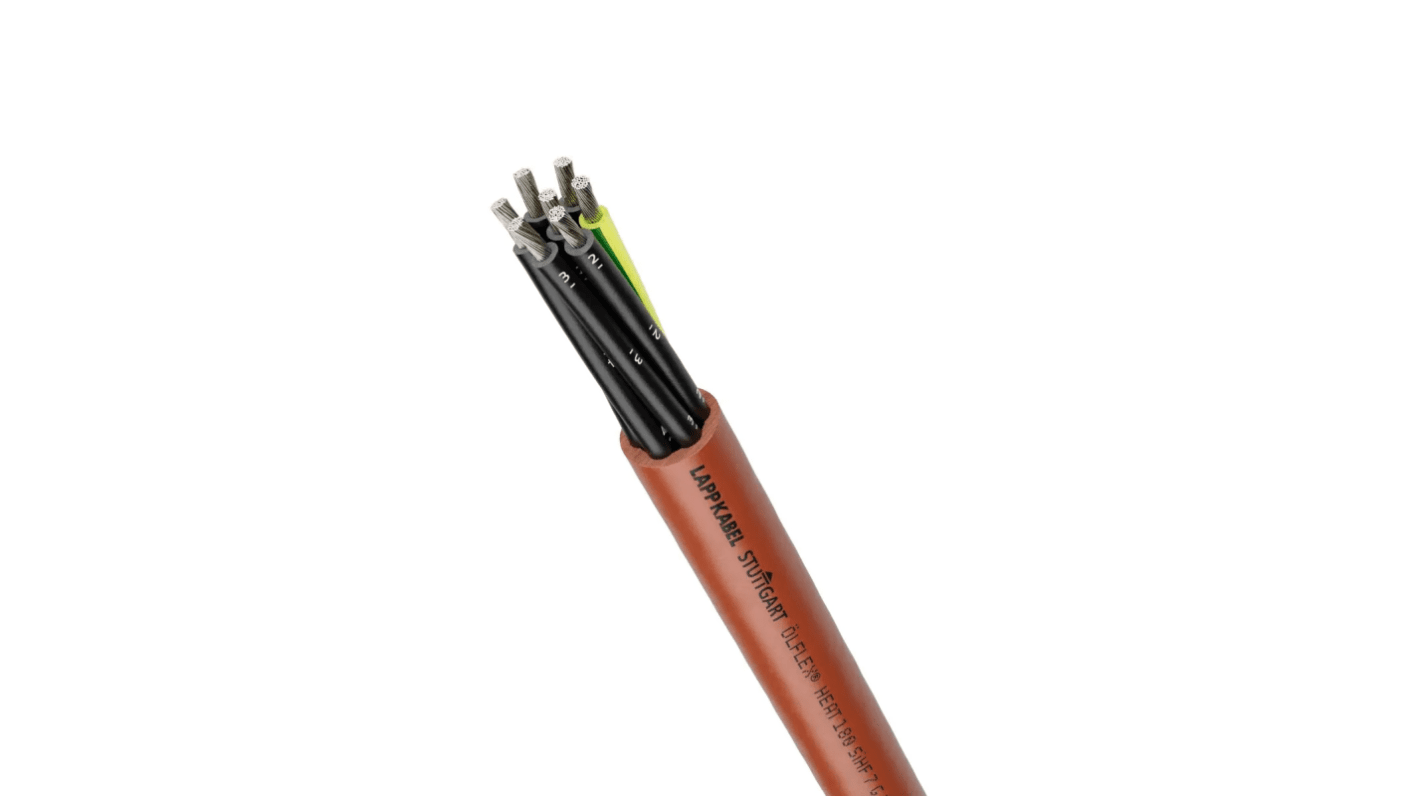

LAPP ÖLFLEX HEAT 180 SiHF Series Control Cable, 1mm² Cross-Sectional Area, 7 Core Configuration - 0046012
This control cable is designed to perform under demanding conditions, featuring a robust silicone sheath and tinned copper conductors. The 50m long cable has an outer diameter of 9.5mm, suitable for a variety of installations in automation and industrial settings. It exhibits excellent resilience to high temperatures, operating efficiently between -60°C to +180°C.
Features & Benefits
• High-temperature performance up to +180°C ensures durability
• Halogen-free composition prevents the release of corrosive gases
• Flame-retardant properties enhance safety in challenging environments
• Unscreened configuration reduces installation complexity
• Halogen-free composition prevents the release of corrosive gases
• Flame-retardant properties enhance safety in challenging environments
• Unscreened configuration reduces installation complexity
Applications
• Utilised in bakery equipment and industrial furnaces
• Suitable for use in sauna and solarium construction
• Applied in lighting technology and ventilation engineering
• Effective for electric motor industry
• Used in galvanisation technology for enhanced performance
• Suitable for use in sauna and solarium construction
• Applied in lighting technology and ventilation engineering
• Effective for electric motor industry
• Used in galvanisation technology for enhanced performance
What are the advantages of using silicone-based cables in high-temperature applications?
Silicone-based cables maintain their insulating and mechanical properties under high temperatures where traditional materials fail, ensuring reliable performance in critical environments.
How does the tinned copper conductor contribute to the cable's performance?
The tinned copper conductor provides excellent corrosion resistance and improved durability, ensuring consistent conductivity over time, especially in harsh conditions.
What precautions should be taken during installation to maintain optimal performance?
Ensure adequate ventilation during installation, as mechanical properties can diminish without airflow at temperatures above +100°C, impacting overall cable integrity.
