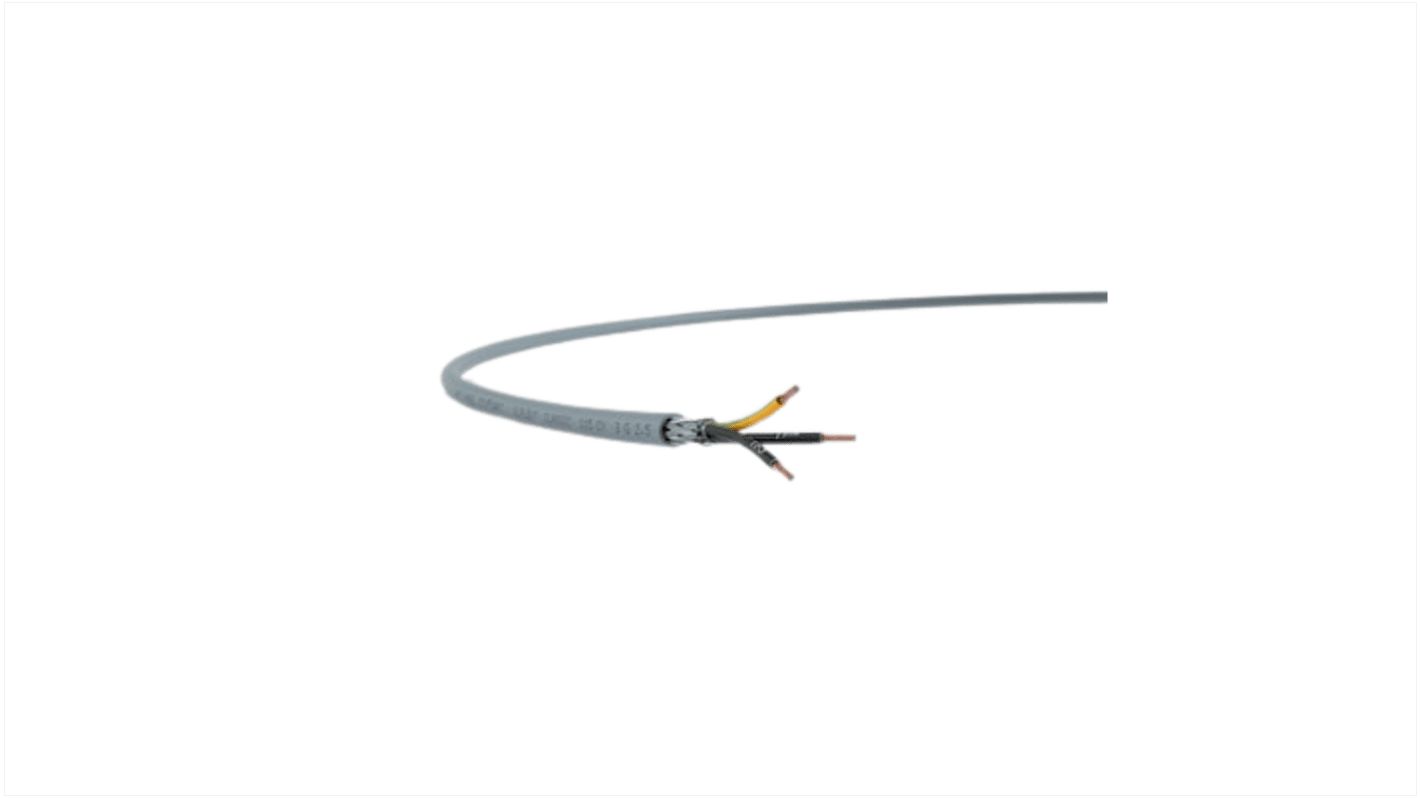

Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 4 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

RS Stock No.:: 444-0553
Mfr. Part No.:: 1136104
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 115 CY Control Cable, 4 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£155.87

(exc. VAT)

£187.04

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

13 unit(s) ready to ship
Plus 3 unit(s) ready to ship from another location
Plus 7 unit(s) shipping from 14 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£155.87	£3.117

*price indicative

RS Stock No.:: 444-0553
Mfr. Part No.:: 1136104
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 115 CY
	Number of Cores	4
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	CY
	Screened/Unscreened	Screened
	Screen Type	Tinned Copper Braid
	Length	50m
	Minimum Bend Radius	Fixed - 6 x D Occasional Flexing - 20 x D
	Outer Diameter	7mm
	Voltage Rating	300/500 V
	Current Rating	12 A
	Standards Met	CE
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Insulation Material	PVC
	Oil Resistant	Yes
	Conductor Resistance	26 Ω/km
	Core Strands	24/0.2 mm
	Filler Material	Non-Wicking Filler
	Earth Cable	Yes
	Minimum Operating Temperature	-40°C
	Bedding Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 115 CY
	Number of Cores 4
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type CY
	Screened/Unscreened Screened
	Screen Type Tinned Copper Braid
	Length 50m
	Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D
	Outer Diameter 7mm
	Voltage Rating 300/500 V
	Current Rating 12 A
	Standards Met CE
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Insulation Material PVC
	Oil Resistant Yes
	Conductor Resistance 26 Ω/km
	Core Strands 24/0.2 mm
	Filler Material Non-Wicking Filler
	Earth Cable Yes
	Minimum Operating Temperature -40°C
	Bedding Material PVC

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 115 CY Series Control Cable, 0.75mm² Cross Sectional Area, 4 Cores - 1136104

This screened control cable provides excellent flexibility and performance in various applications. With a round structure and outer diameter of 7mm, it is designed for use in automation and control technology. The PVC sheath enhances durability, making it suitable for conditions ranging from -40°C to +80°C.

Features & Benefits

• Screened design minimises interference from external signals
• Built with bare copper conductors for optimal conductivity
• High chemical resistance extends cable lifespan
• Rated for voltages of 300/500 V for versatile use

Applications

• Used for measurement and control systems in industrial settings
• Ideal for office machines and data processing equipment
• Suitable for flexible where movement is required

What current capacity can be managed effectively with this cable?

The cable has a current rating of 12A, ensuring it can handle standard control applications comfortably.

How does the cable perform in extreme temperatures?

It operates efficiently between -40°C and +80°C, making it suitable for diverse environmental conditions.

What is the significance of the screened design in this cable?

The screened design helps in preventing electromagnetic interference, thereby ensuring stable and reliable signal transmission.

In what forms can the cable be purchased for convenience?

It is available in coils up to 30kg or in drums for larger lengths, providing flexibility for installation requirements.

What type of applications require a flame-retardant cable?

Flame-retardant cables are crucial in environments that may expose electrical installations to fire hazards, ensuring safety and compliance with regulations.
