MPN

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 4 Cores, 1 mm², SY, Screened, 50m, Grey PVC Sheath, 17 AWG

RS Stock No.:: 444-0430
Mfr. Part No.:: 0016044
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 100 SY Control Cable, 4 Cores, 1 mm², SY, Screened, 50m, Grey PVC Sheath, 17 AWG

Subtotal (1 reel of 50 metres)*

£152.25

(exc. VAT)

£182.70

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 5 unit(s) shipping from 25 September 2025
Plus 999,999,993 unit(s) shipping from 06 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£152.25	£3.045

*price indicative

RS Stock No.:: 444-0430
Mfr. Part No.:: 0016044
Brand:: Lapp

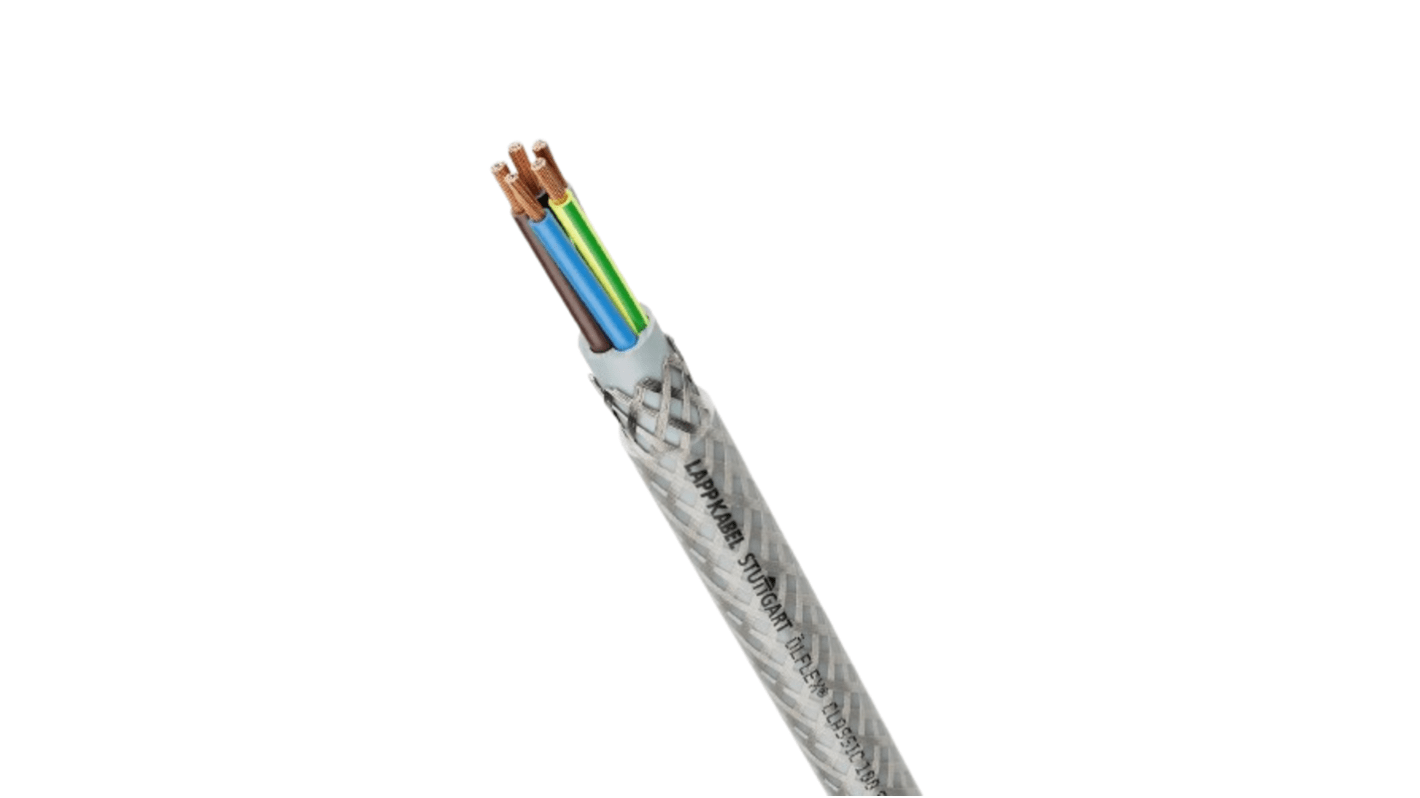

LAPP ÖLFLEX CLASSIC 100 SY Series Control Cable, 1mm² Cross Sectional Area, 4 Core Cables - 0016044

This control cable is designed for versatile applications in automation and industrial settings. It features a robust 4 core structure with a cross-sectional area of 1mm², ensuring reliable performance. With a PVC sheath and galvanised steel braiding, it provides both flexibility and significant mechanical protection. This screened control cable is suitable for demanding environments and can operate effectively over a length of 50m.

Features & Benefits

• Screened design enhances noise immunity for signal integrity
• Armoured structure protects against mechanical damage
• High voltage rating of 300/500 V ensures safe operation
• Good chemical resistance extends lifespan in harsh environments

Applications

• Used in plant construction for control automation
• Ideal for machine building requiring robust wiring solutions
• Suitable for heating and air-conditioning systems
• Effective in environments with high mechanical stress

What materials contribute to the cable's durability and flexibility?

The cable comprises finely stranded bare copper wires, PVC core insulation, and a galvanised steel braid for enhanced mechanical protection and flexibility under various installation conditions.

How does the temperature rating impact usability in diverse conditions?

With a minimum operating temperature of -40 °C and a maximum of +80 °C, this cable maintains performance in extreme environments, making it suitable for both indoor and outdoor applications.

What protective features come with the PVC sheath and steel braiding?

The PVC sheath provides weather resistance, while the steel braiding ensures mechanical strength, safeguarding the cable from impacts and abrasions during operation.

How can this cable’s bending radius affect its installation?

This control cable has a fixed bending radius of 6 times the outer diameter, ensuring proper routing and installation without compromising cable integrity in confined spaces.

Standards

VDE 0295, Part 5

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 100 SY
	Number of Cores	4
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	SY
	Screened/Unscreened	Screened
	Screen Type	Galvanised Steel Braid
	Armoured	Yes
	Outer Diameter	9.5mm
	Minimum Bend Radius	Fixed - 6 x D, Occasional Flexing - 20 x D
	Length	50m
	Voltage Rating	300/500 V
	Current Rating	15 A
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Conductor Resistance	19.5 Ω/km
	Filler Material	Non-Wicking Filler
	Bedding Material	PVC
	Earth Cable	Yes
	Core Strands	32/0.2 mm
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 100 SY
	Number of Cores 4
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type SY
	Screened/Unscreened Screened
	Screen Type Galvanised Steel Braid
	Armoured Yes
	Outer Diameter 9.5mm
	Minimum Bend Radius Fixed - 6 x D, Occasional Flexing - 20 x D
	Length 50m
	Voltage Rating 300/500 V
	Current Rating 15 A
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Conductor Resistance 19.5 Ω/km
	Filler Material Non-Wicking Filler
	Bedding Material PVC
	Earth Cable Yes
	Core Strands 32/0.2 mm
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Insulation Material PVC
