MPN

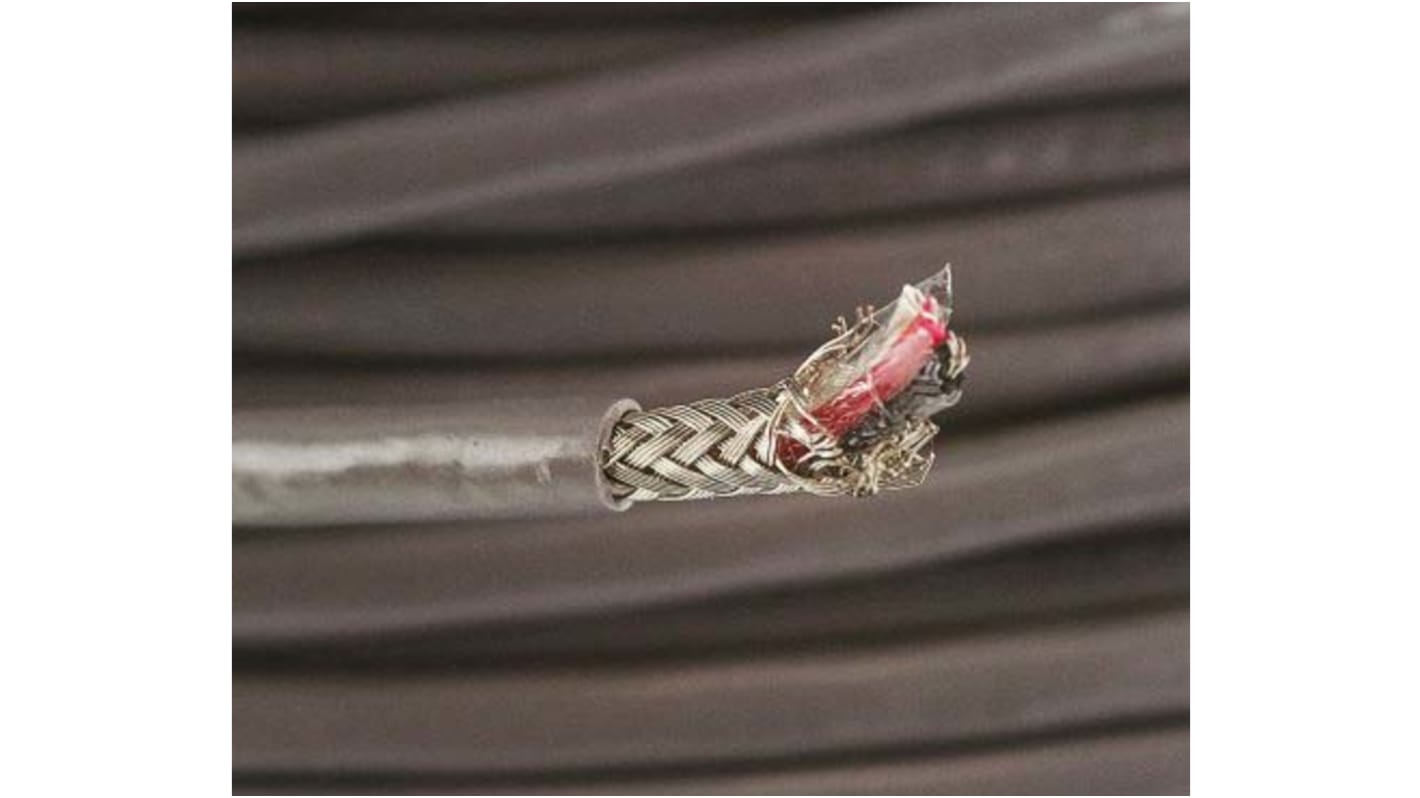

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.09 mm², DEF STAN, Screened, 305m, Grey

RS Stock No.:: 298-4089
Mfr. Part No.:: 3303 SL001
Brand:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.09 mm², DEF STAN, Screened, 305m, Grey

Subtotal (1 reel of 304 metres)*

£458.736

(exc. VAT)

£550.544

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

912 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
304 +	£1.509	£458.74

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Alpha Wire Alpha Essentials Communication & Control Control Cable, 4 Cores, 0.09 mm², DEF STAN, Screened, 305m, Grey

RS Stock No.: 298-4102

Each

£1.524

(exc. VAT)

£1.829

(inc. VAT)

RS Stock No.:: 298-4089
Mfr. Part No.:: 3303 SL001
Brand:: Alpha Wire

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Alpha Essentials Communication & Control
	Number of Cores	3
	Cross Sectional Area	0.09 mm²
	American Wire Gauge	28 AWG
	Conductor Material	Tinned Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	DEF STAN
	Screen Type	Braid
	Screened/Unscreened	Screened
	Minimum Bend Radius	10 x Diameter
	Length	305m
	Outer Diameter	3.15mm
	Voltage Rating	600 V
	Standards Met	CE
	Maximum Operating Temperature	+105°C
	Core Strands	7/0.13 mm
	Insulation Material	PVC
	Minimum Operating Temperature	-55°C
	Conductor Resistance	213.25 Ω/km
	Drain Wire	No

	Select all
	Brand Alpha Wire
	Series Alpha Essentials Communication & Control
	Number of Cores 3
	Cross Sectional Area 0.09 mm²
	American Wire Gauge 28 AWG
	Conductor Material Tinned Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type DEF STAN
	Screen Type Braid
	Screened/Unscreened Screened
	Minimum Bend Radius 10 x Diameter
	Length 305m
	Outer Diameter 3.15mm
	Voltage Rating 600 V
	Standards Met CE
	Maximum Operating Temperature +105°C
	Core Strands 7/0.13 mm
	Insulation Material PVC
	Minimum Operating Temperature -55°C
	Conductor Resistance 213.25 Ω/km
	Drain Wire No

Belden Alpha Essentials Communication & Control Series Control Cable, 3 Cores, 0.09mm² Cross Sectional Area - 3303 SL005

This control cable is designed for robust communication and control in various industrial applications. Featuring three cores with a total cross-sectional area of 0.09mm², it is built to deliver reliable performance in challenging environments. The cable is constructed from tinned copper conductors, providing electrical and mechanical durability, while the PVC sheath ensures flexibility and protection against harsh conditions.

Features & Benefits

• Designed for efficient signal transmission in automation systems
• Screened to eliminate electromagnetic interference for reliable communication
• 28 AWG control cable supports low power applications
• Retains performance in extreme temperatures from -55°C to +105°C
• PVC control cable sheath offers excellent flexibility and abrasion resistance
• DEF STAN compliant for use in military and aerospace applications

Applications

• Utilised in remote circuit controls for automation systems
• Ideal for control wiring in industrial machinery and equipment
• Applied in security and instrumentation systems within commercial settings
• Suited for telecommunications installations requiring a multi-core solution

What benefits does the screened design of the cable provide?

The screened design significantly reduces electromagnetic interference, ensuring reliable communication even in environments with high electrical noise. This is crucial for maintaining control signals in automation and industrial settings.

How does the material composition affect the performance of this cable?

The tinned copper conductors enhance conductivity while preventing corrosion, which contributes to long-term reliability and performance in both electrical and mechanical aspects. The PVC insulation further protects the cable from damage due to environmental factors.

In what situations would this cable be particularly beneficial for users?

This control cable is especially beneficial in applications that require consistent performance over a wide temperature range, such as in outdoor installations or within machinery operating under varying conditions. Its flexibility allows for easy installation in tight spaces or dynamic environments.
