Alpha Wire Alpha Essentials Communication & Control Control Cable, 15 Cores, 0.09 mm², DEF STAN, Screened, 30m, Grey
- RS Stock No.:
- 298-4051
- Mfr. Part No.:
- 3315 SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£180.41
(exc. VAT)
£216.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 19 unit(s) shipping from 22 October 2025
- Plus 3 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £180.41 | £6.014 |
*price indicative
- RS Stock No.:
- 298-4051
- Mfr. Part No.:
- 3315 SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 15 | |
| Cross Sectional Area | 0.09 mm² | |
| American Wire Gauge | 28 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PVC | |
| Control Cable Type | DEF STAN | |
| Sheath Colour | Grey | |
| Screen Type | Braid | |
| Screened/Unscreened | Screened | |
| Outer Diameter | 5.99mm | |
| Length | 30m | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 600 V | |
| Standards Met | CE | |
| Maximum Operating Temperature | +105°C | |
| Drain Wire | No | |
| Core Strands | 7/0.13 mm | |
| Insulation Material | PVC | |
| Conductor Resistance | 65 Ω/1000ft | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 15 | ||
Cross Sectional Area 0.09 mm² | ||
American Wire Gauge 28 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Control Cable Type DEF STAN | ||
Sheath Colour Grey | ||
Screen Type Braid | ||
Screened/Unscreened Screened | ||
Outer Diameter 5.99mm | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 600 V | ||
Standards Met CE | ||
Maximum Operating Temperature +105°C | ||
Drain Wire No | ||
Core Strands 7/0.13 mm | ||
Insulation Material PVC | ||
Conductor Resistance 65 Ω/1000ft | ||
Minimum Operating Temperature -55°C | ||

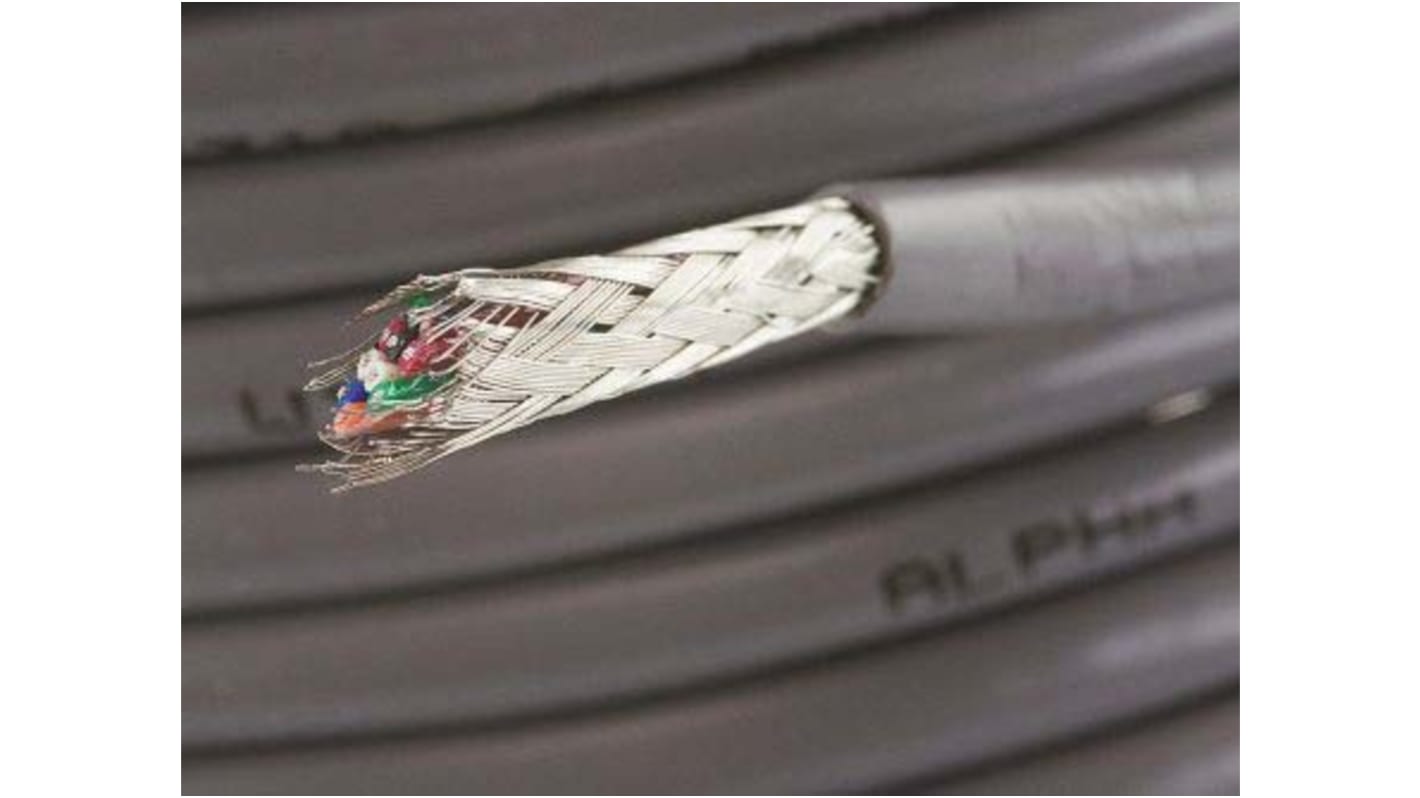

28 AWG Braid Shielded Multiconductor Cables
Alpha Wire multiconductor cables comprise stranded tinned copper conductors, PVC insulation and clear polyester wrap, shielded using tinned copper braid with an overall PVC jacket. The cable is ideal for transmission of low voltage signals in IT control or communications applications. The screening braid provides 90% coverage of the conductors. Available in a range of reel lengths and number of cores.
