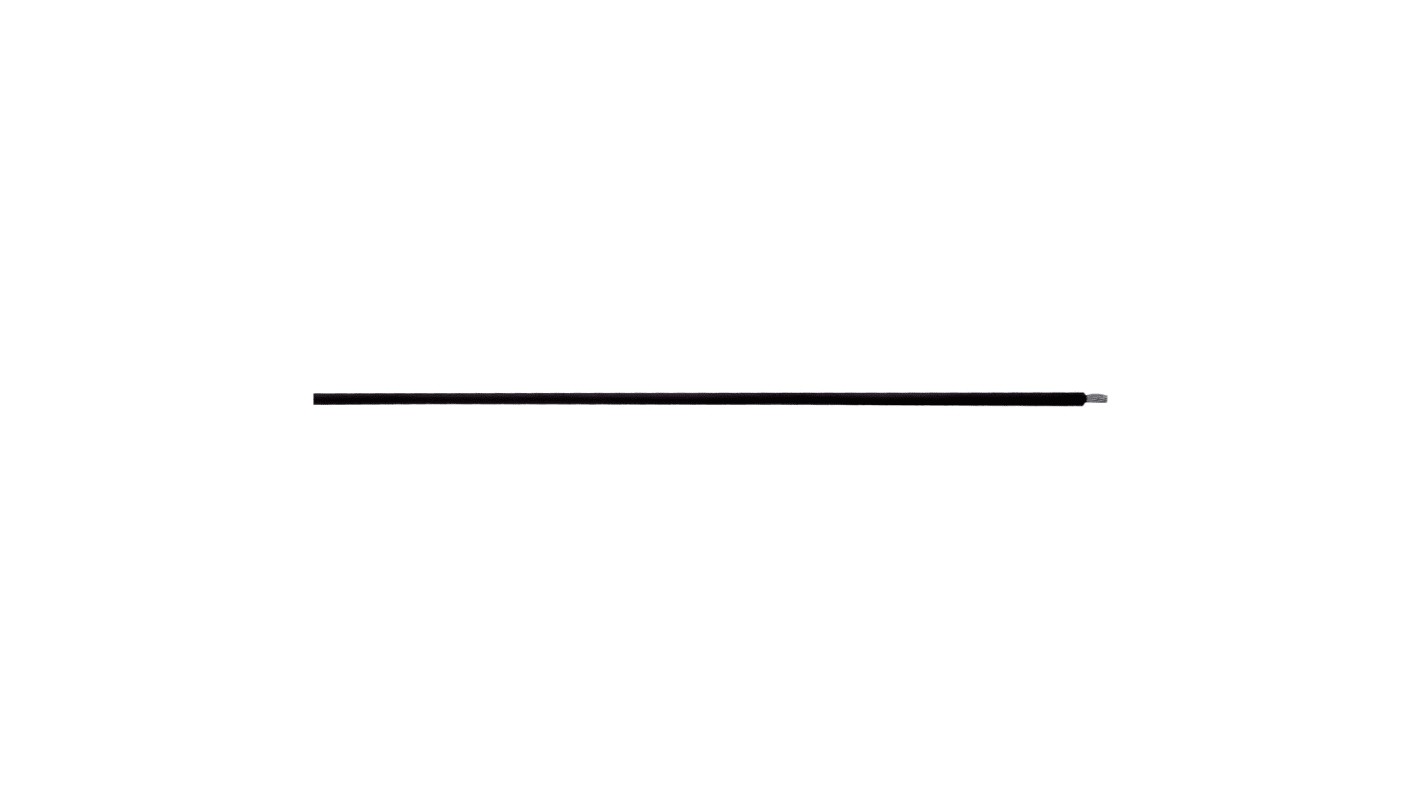

Lapp OLFLEX HEAT 205 SC Control Cable, 1 Cores, 0.14 mm² CSA 26, Unscreened, Black Fluorinated Ethylene Propylene Sheath
- RS Stock No.:
- 288-6669
- Mfr. Part No.:
- 80001
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£51.28
(exc. VAT)
£61.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £51.28 | £0.513 |
*price indicative
- RS Stock No.:
- 288-6669
- Mfr. Part No.:
- 80001
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX HEAT 205 SC | |
| Product Type | Control Cable | |
| Sub Type | Heat Resistant Insulated Strand | |
| Number of Cores | 1 | |
| Cross Sectional Area | 0.14 mm² | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Fluorinated Ethylene Propylene | |
| Jacket Colour | Black | |
| Screened/Unscreened | Unscreened | |
| Voltage | 500 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -100°C | |
| Maximum Operating Temperature | 205°C | |
| Standards/Approvals | VD0207, IEC 60332-1-2, IEC 60228, EU- 2014/35/EU, EU 2011/65/EU, EN 60332-1-2, DIN ISO 16016 | |
| Fire Behaviour | Flame Retardant | |
| American Wire Gauge | 26 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX HEAT 205 SC | ||
Product Type Control Cable | ||
Sub Type Heat Resistant Insulated Strand | ||
Number of Cores 1 | ||
Cross Sectional Area 0.14 mm² | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Fluorinated Ethylene Propylene | ||
Jacket Colour Black | ||
Screened/Unscreened Unscreened | ||
Voltage 500 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -100°C | ||
Maximum Operating Temperature 205°C | ||
Standards/Approvals VD0207, IEC 60332-1-2, IEC 60228, EU- 2014/35/EU, EU 2011/65/EU, EN 60332-1-2, DIN ISO 16016 | ||
Fire Behaviour Flame Retardant | ||
American Wire Gauge 26 | ||
- COO (Country of Origin):
- DE
The Lapp OLFLEX HEAT 205 SC 1X0,14 BK are heat resistant insulated strands. These strands are characterized by very good electrical values, outstanding resistance against oil, weather and UV radiation, as well as having high elasticity and tensile strength of the insulation material. It has 1 core and 0.14 mm2 cross sectional area of the conductor. It has FEP sheath material and is black in colour.
Flame retardant
Stress crack resistant insulation
Cable meets the substance specific requirements of RoHS
