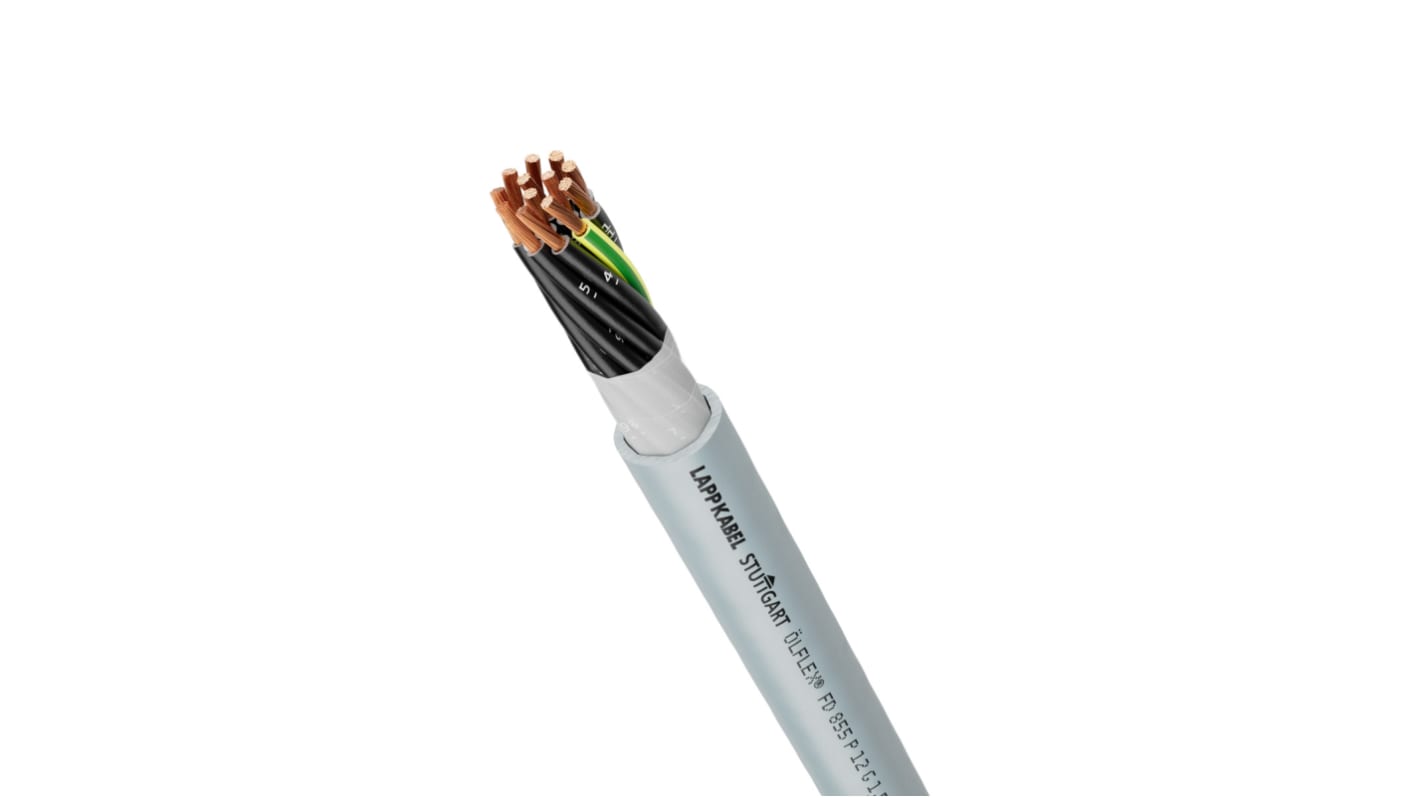

Lapp OLFLEX FD 855 P Control Cable, 5 Cores, 0.75 mm² CSA 19, Unscreened, Grey Polyurethane Sheath
- RS Stock No.:
- 288-6635
- Distrelec Article No.:
- 300-49-366
- Mfr. Part No.:
- 27548
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£264.53
(exc. VAT)
£317.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £264.53 | £5.291 |
*price indicative
- RS Stock No.:
- 288-6635
- Distrelec Article No.:
- 300-49-366
- Mfr. Part No.:
- 27548
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX FD 855 P | |
| Product Type | Control Cable | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Outside Diameter | 7.3 mm | |
| Voltage | 3000 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL Recognised, EAC Certified, cUR recognised, UKCA marked, CE marked | |
| American Wire Gauge | 19 | |
| Core Strands | 5 | |
| Distrelec Product Id | 300-49-366 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX FD 855 P | ||
Product Type Control Cable | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Outside Diameter 7.3 mm | ||
Voltage 3000 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL Recognised, EAC Certified, cUR recognised, UKCA marked, CE marked | ||
American Wire Gauge 19 | ||
Core Strands 5 | ||
Distrelec Product Id 300-49-366 | ||
- COO (Country of Origin):
- DE
The Lapp OLFLEX FD 855 P 5G0,75 is a oil resistant, low capacitance control and supply cables with an outer sheath of Polyurethane for especially high flexible use and fixed installation under normal mechanical load conditions. It has 5 cores and 0.75 mm2 cross sectional area of the conductor. It is grey in colour.
For use in dry, damp and wet areas
Flame retardant
Cable is conform to the low voltage directive
