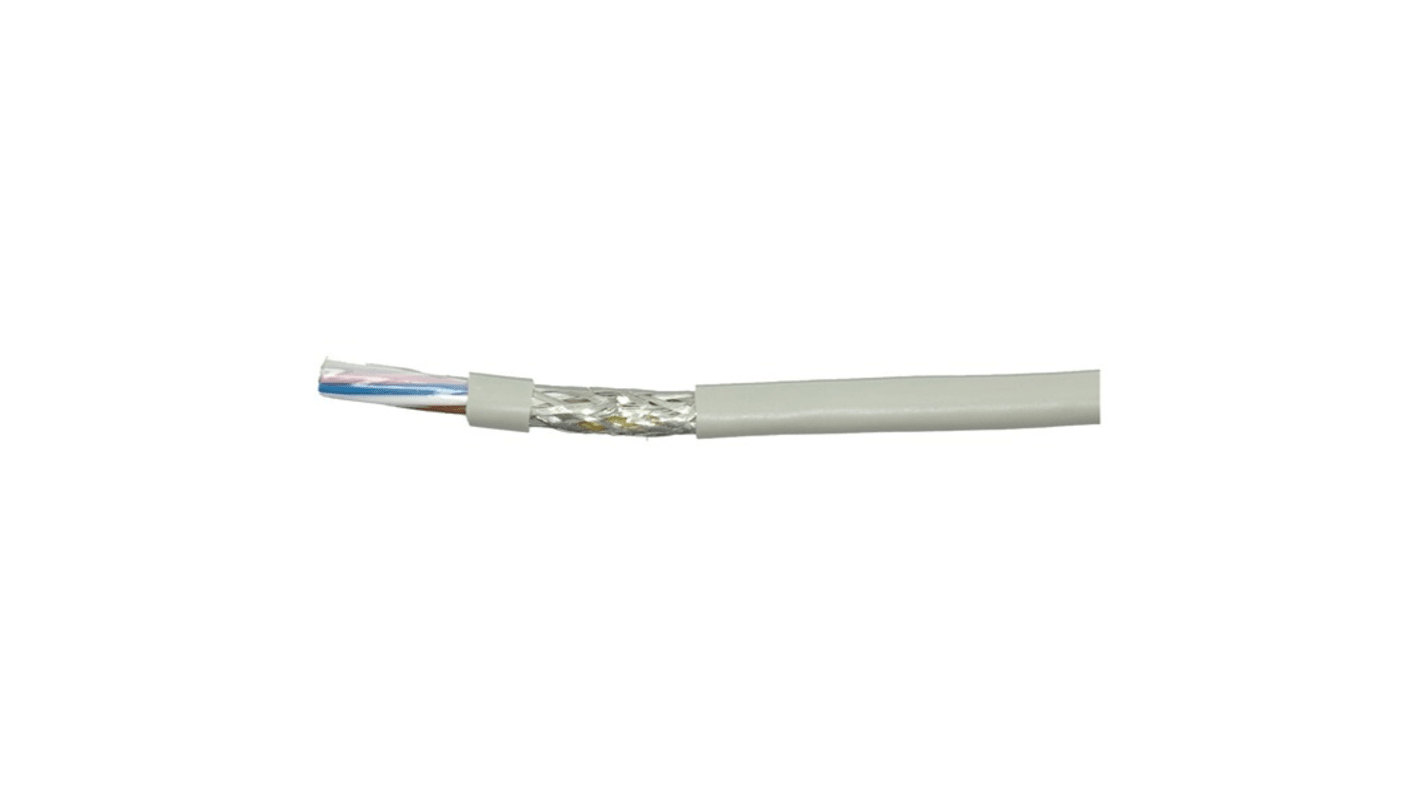

Cabloswiss Multicore Cable, 3 Cores, 0.25 mm², CY, Screened, 100m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 287-6746
- Distrelec Article No.:
- 300-93-088
- Mfr. Part No.:
- LI-YCY 3X0.25 MM²
- Brand:
- Cabloswiss
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 287-6746
- Distrelec Article No.:
- 300-93-088
- Mfr. Part No.:
- LI-YCY 3X0.25 MM²
- Brand:
- Cabloswiss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cabloswiss | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.25 mm² | |
| American Wire Gauge | 24 AWG | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Control Cable Type | CY | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
Select all | ||
|---|---|---|
Brand Cabloswiss | ||
Number of Cores 3 | ||
Cross Sectional Area 0.25 mm² | ||
American Wire Gauge 24 AWG | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type CY | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Length 100m | ||
- COO (Country of Origin):
- DE
The multicore cable is a high-quality cable. It is designed for various applications that require reliable performance and durability. With its exceptional features and benefits, this cable is the perfect choice for both professionals and DIY enthusiasts.
Conductor is Bare copper with high conductivity
Insulation is PVC compound for excellent electrical properties
Colour code is Conduits according to TAB DIN 47100
Assembly is Conductors twisted in layers for optimal performance
Insulation is PVC compound for excellent electrical properties
Colour code is Conduits according to TAB DIN 47100
Assembly is Conductors twisted in layers for optimal performance
