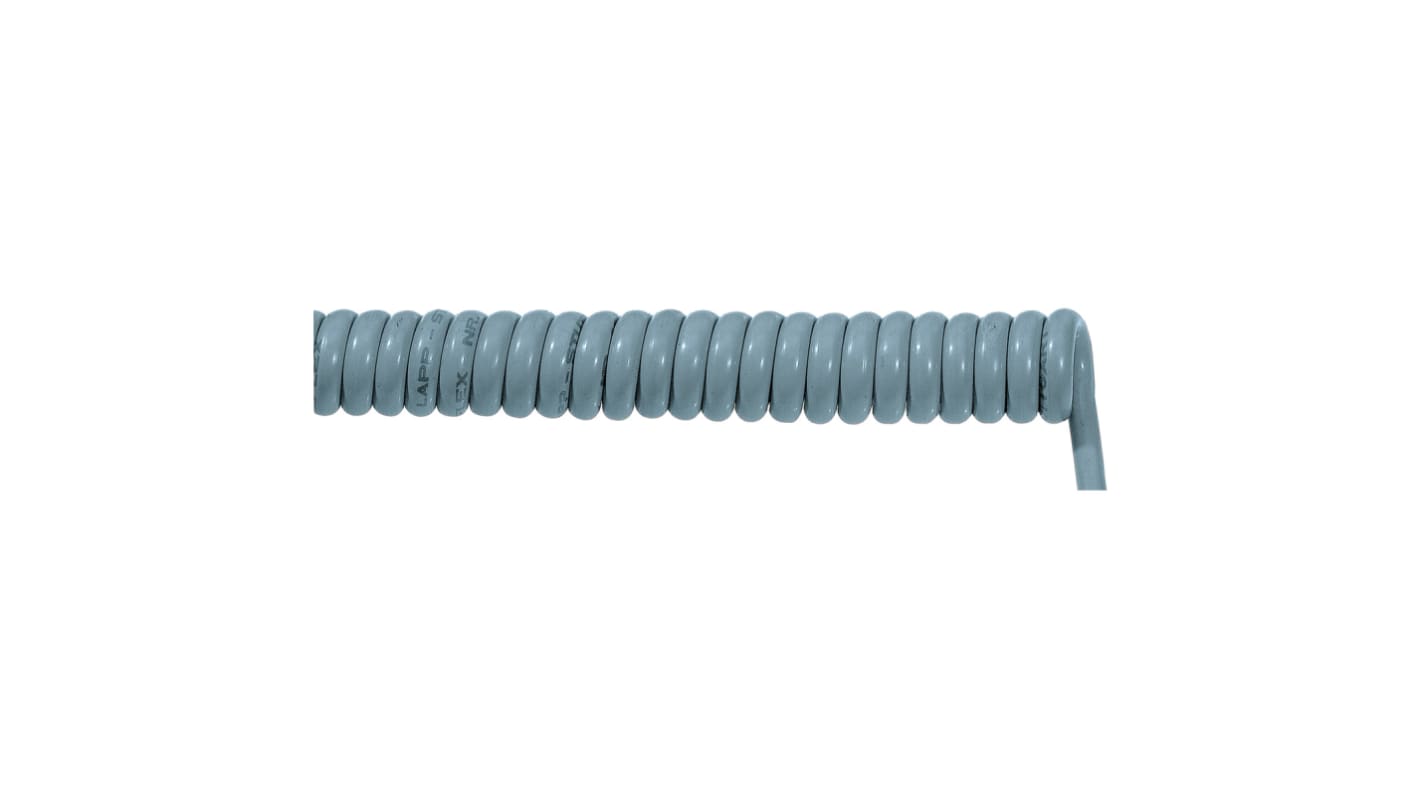

Lapp 70002 Control Cable, 3 Cores 16 AWG, Unscreened, 100 m, Grey Polyurethane Sheath
- RS Stock No.:
- 283-2217
- Mfr. Part No.:
- 70002690
- Brand:
- Lapp
Subtotal (1 unit)*
£72.99
(exc. VAT)
£87.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £72.99 |
*price indicative
- RS Stock No.:
- 283-2217
- Mfr. Part No.:
- 70002690
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | 70002 | |
| Product Type | Control Cable | |
| Number of Cores | 3 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 100m | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UKCA marked, CE marked, EAC Certified | |
| American Wire Gauge | 16AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series 70002 | ||
Product Type Control Cable | ||
Number of Cores 3 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 100m | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UKCA marked, CE marked, EAC Certified | ||
American Wire Gauge 16AWG | ||
- COO (Country of Origin):
- DE
The Lapp cables are oil-resistant with a Polyurethane outer sheath, designed for both flexible use and fixed installation under medium mechanical stress. They are suitable for use in dry, damp, or wet conditions, and can be utilized outdoors within the specified temperature range.
Oil resistant
Hydrolysis resistant
